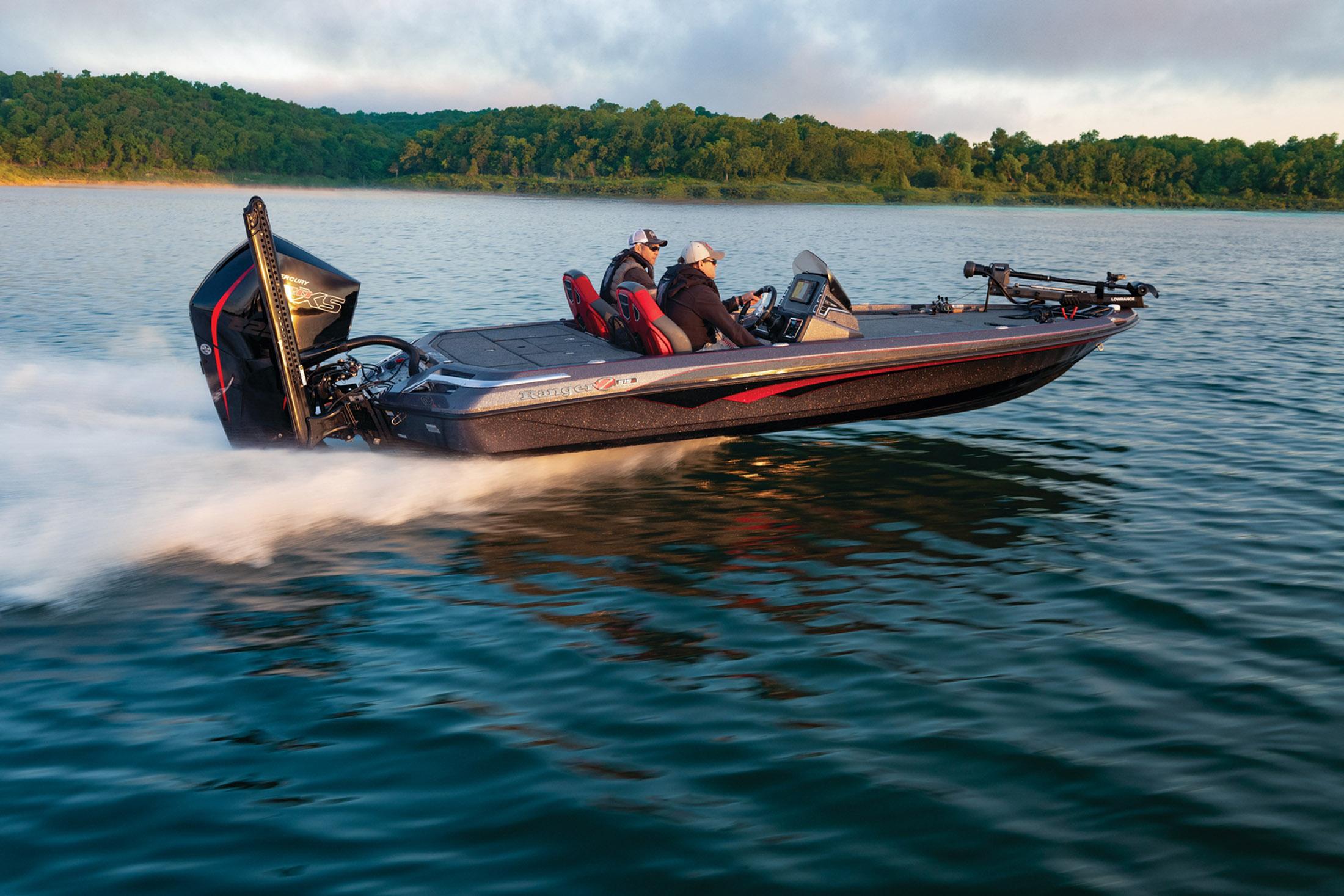

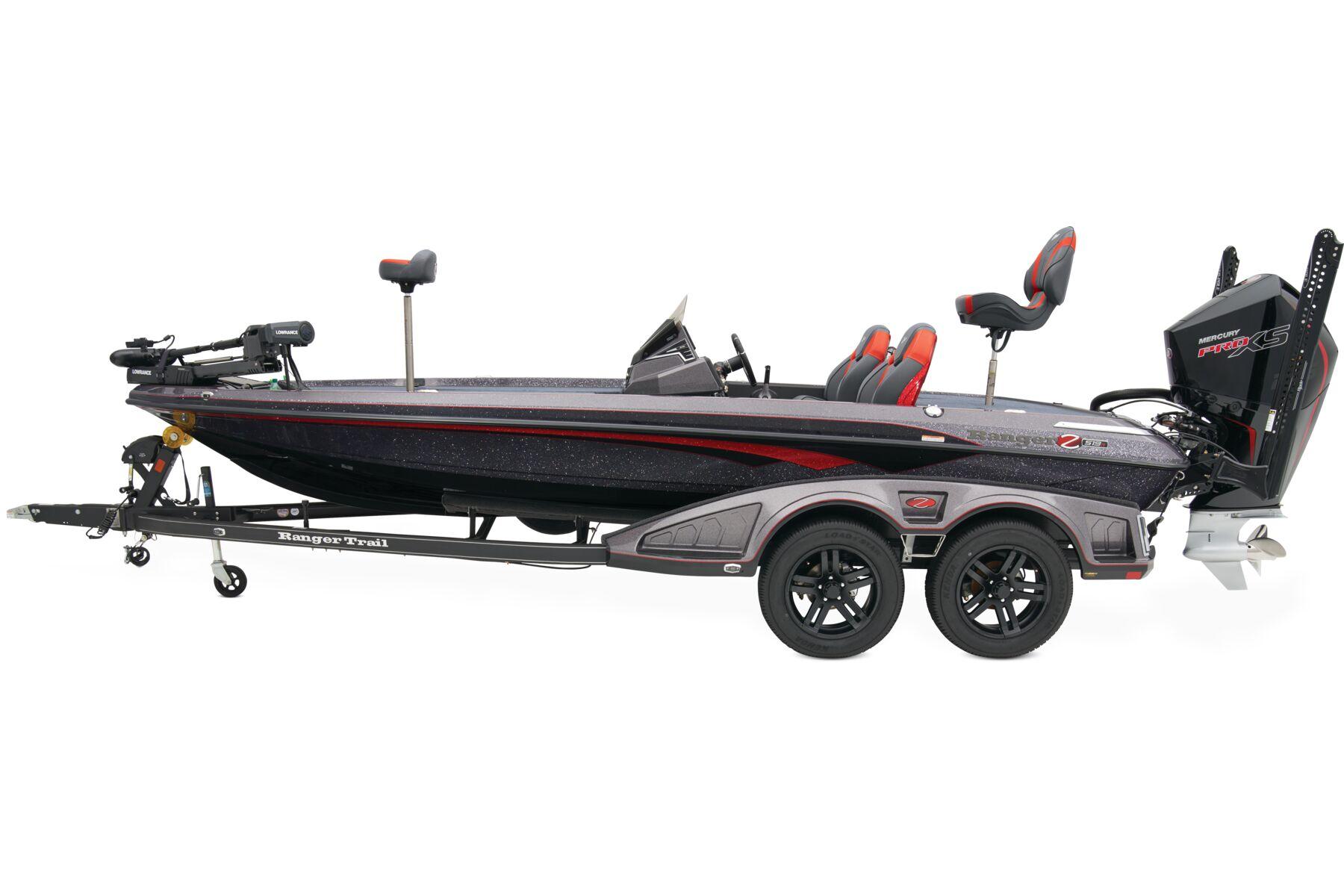

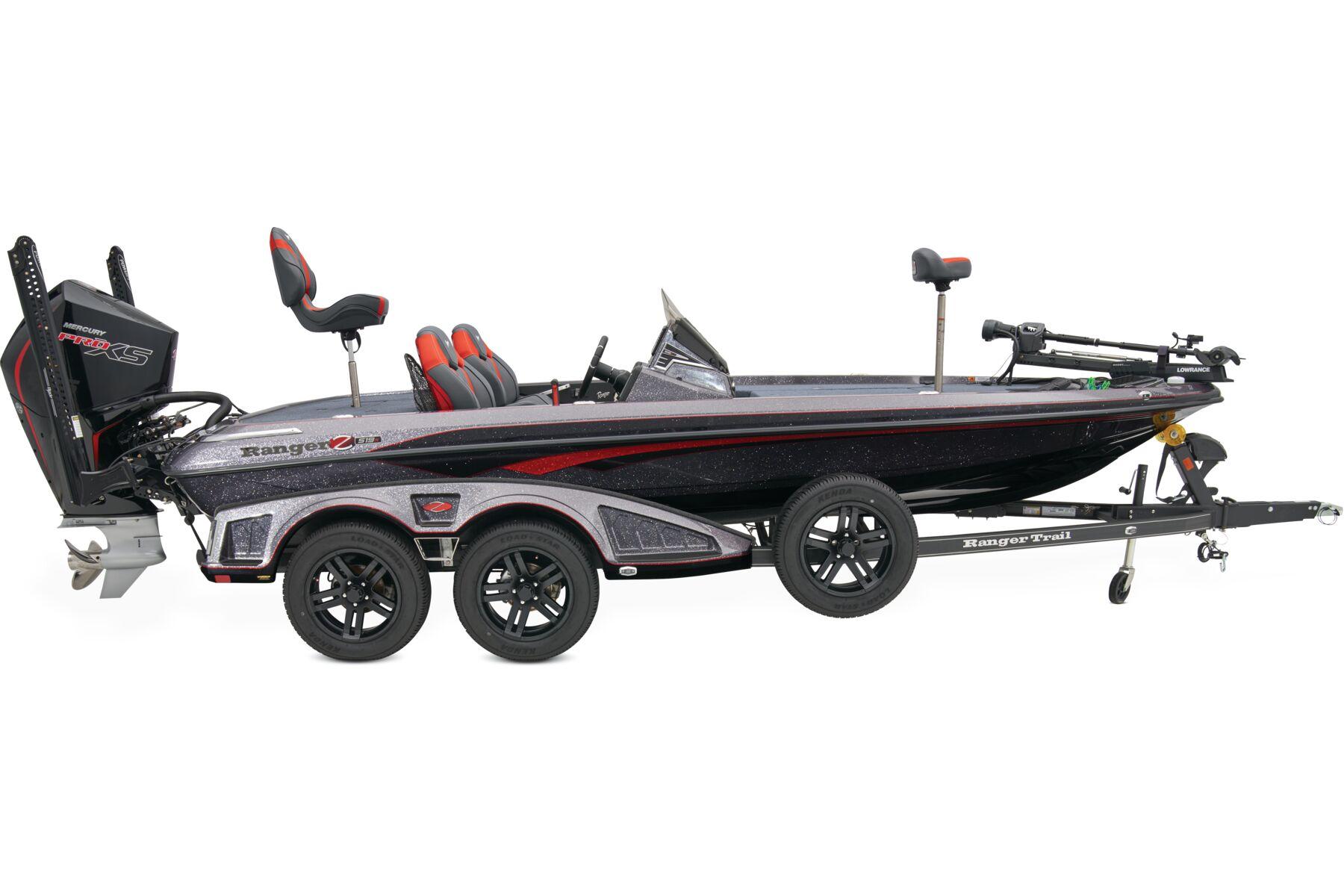

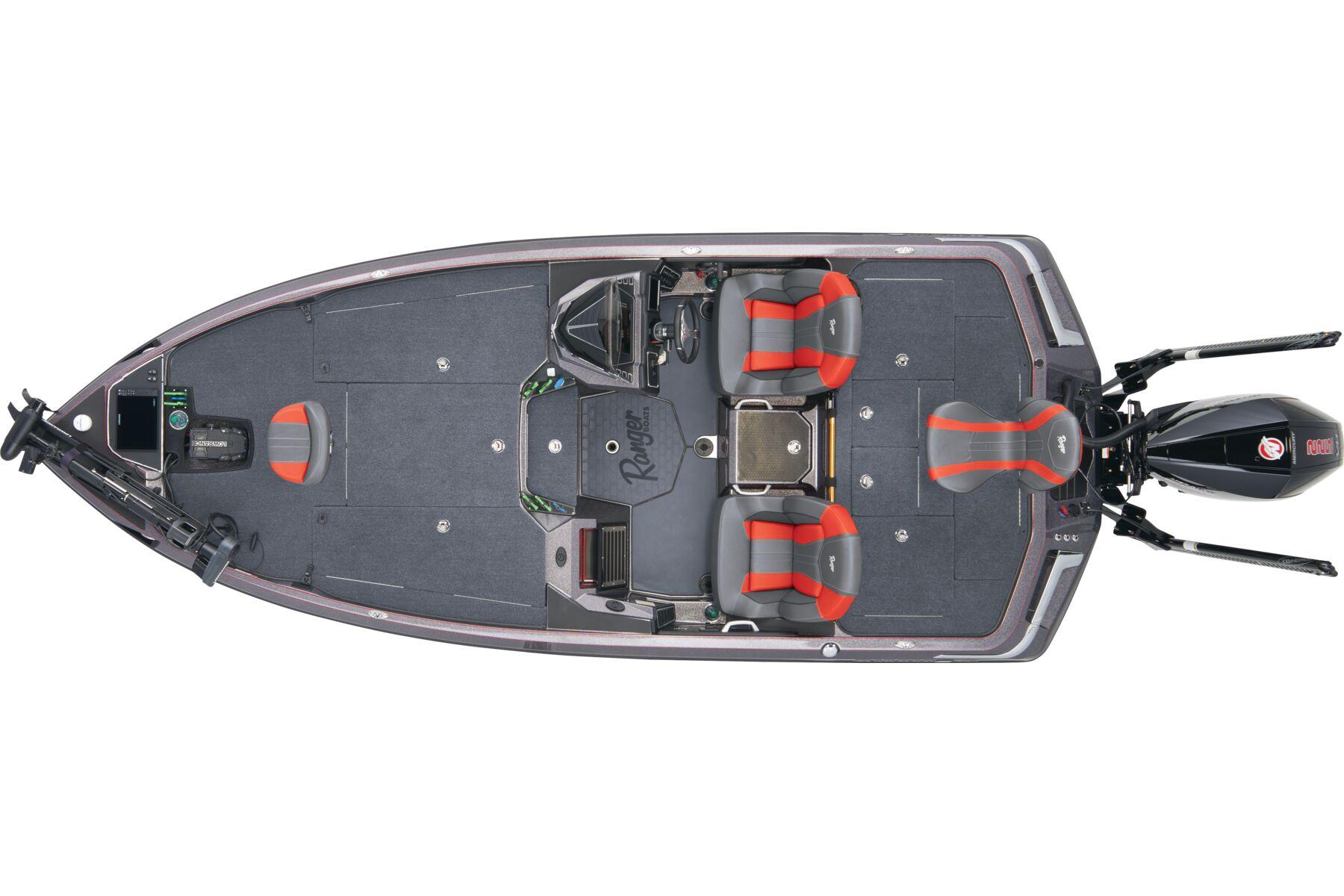

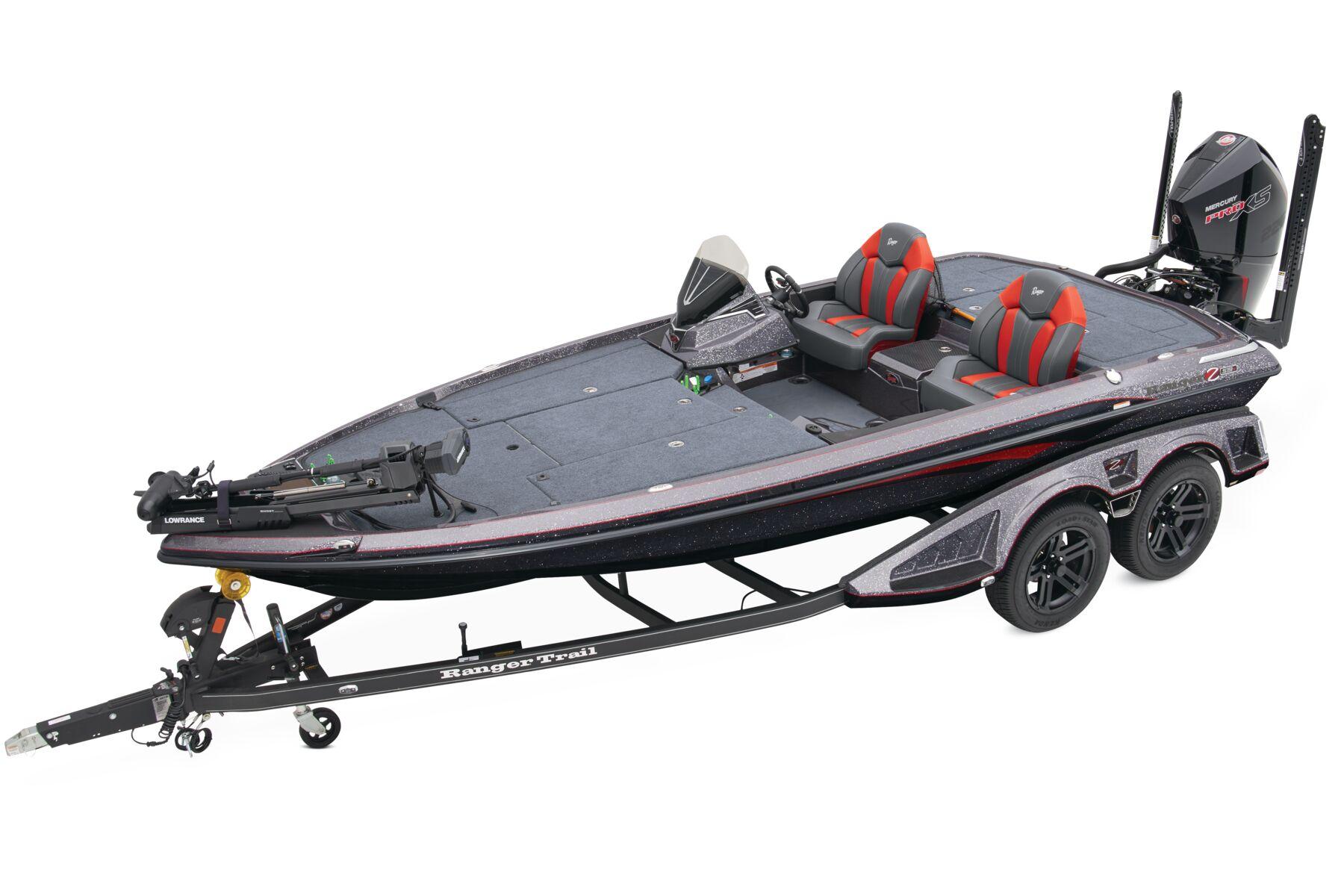

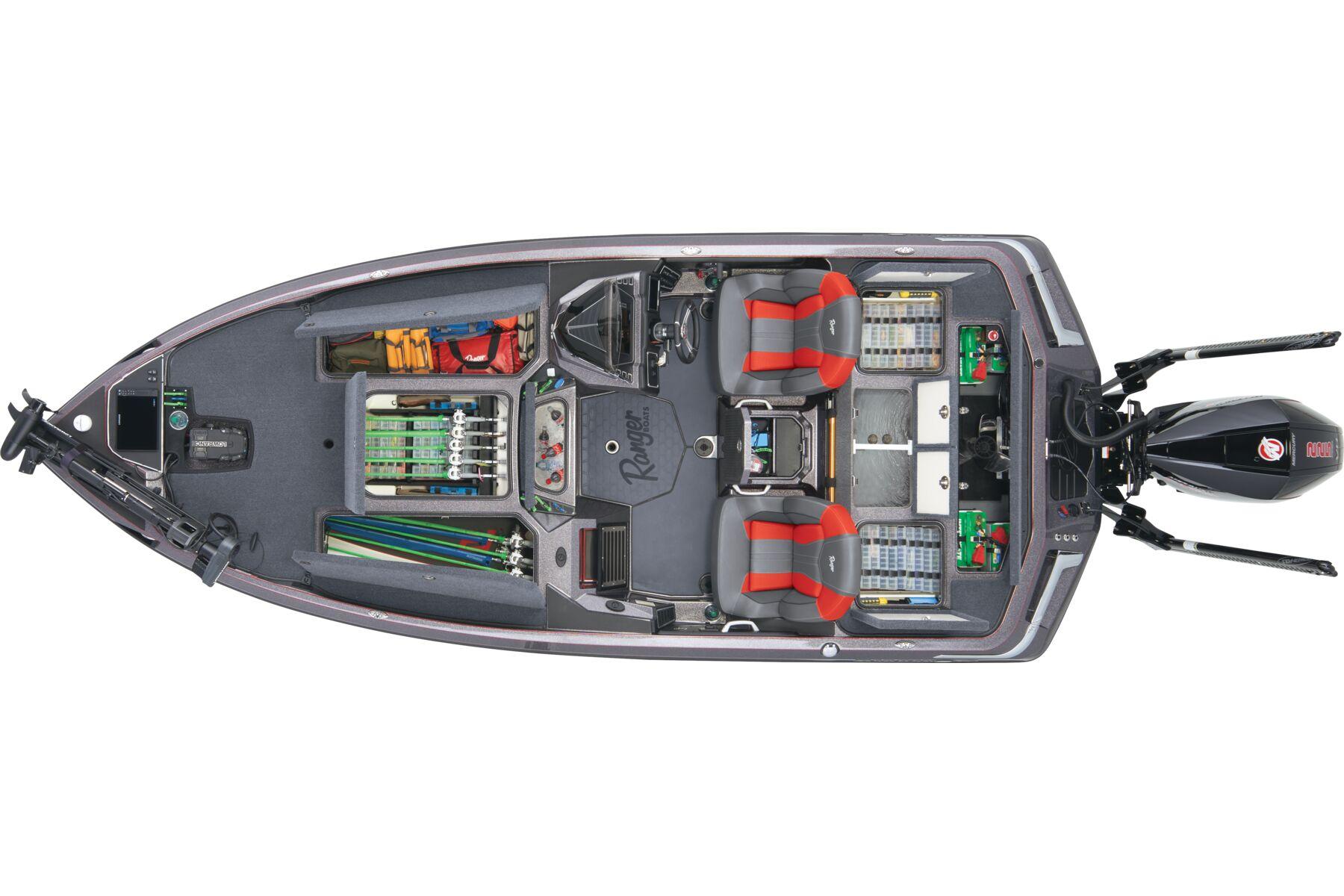

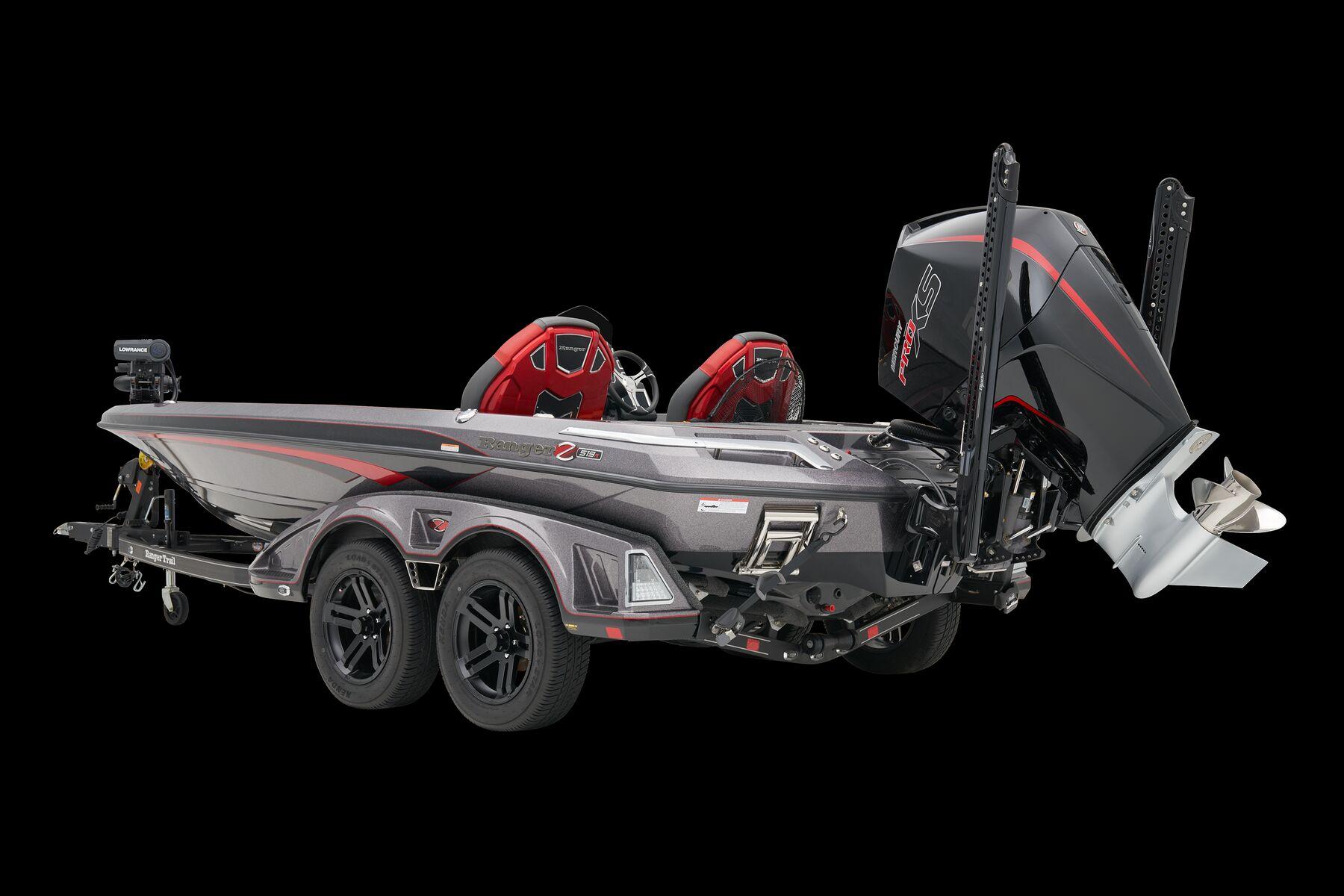

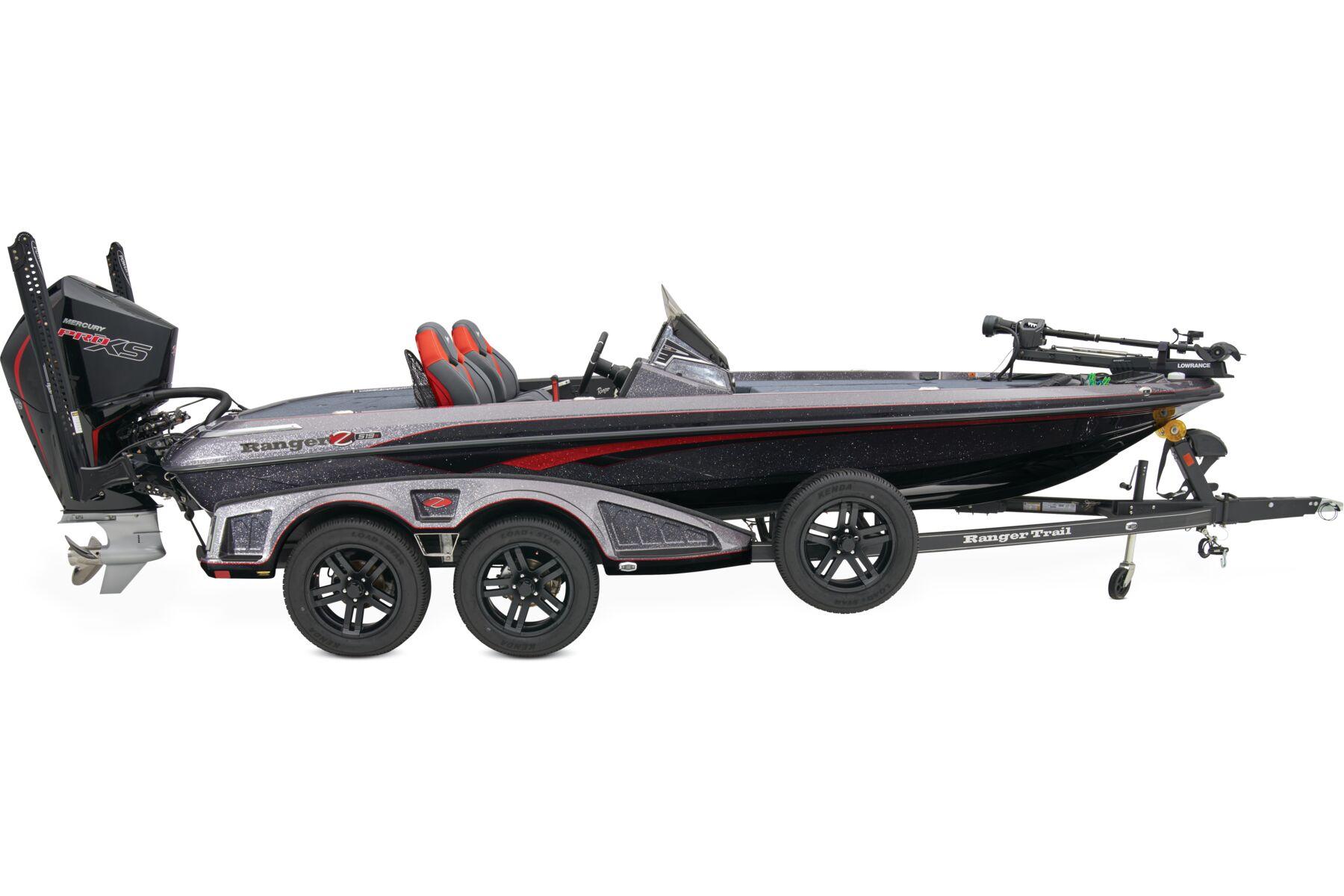

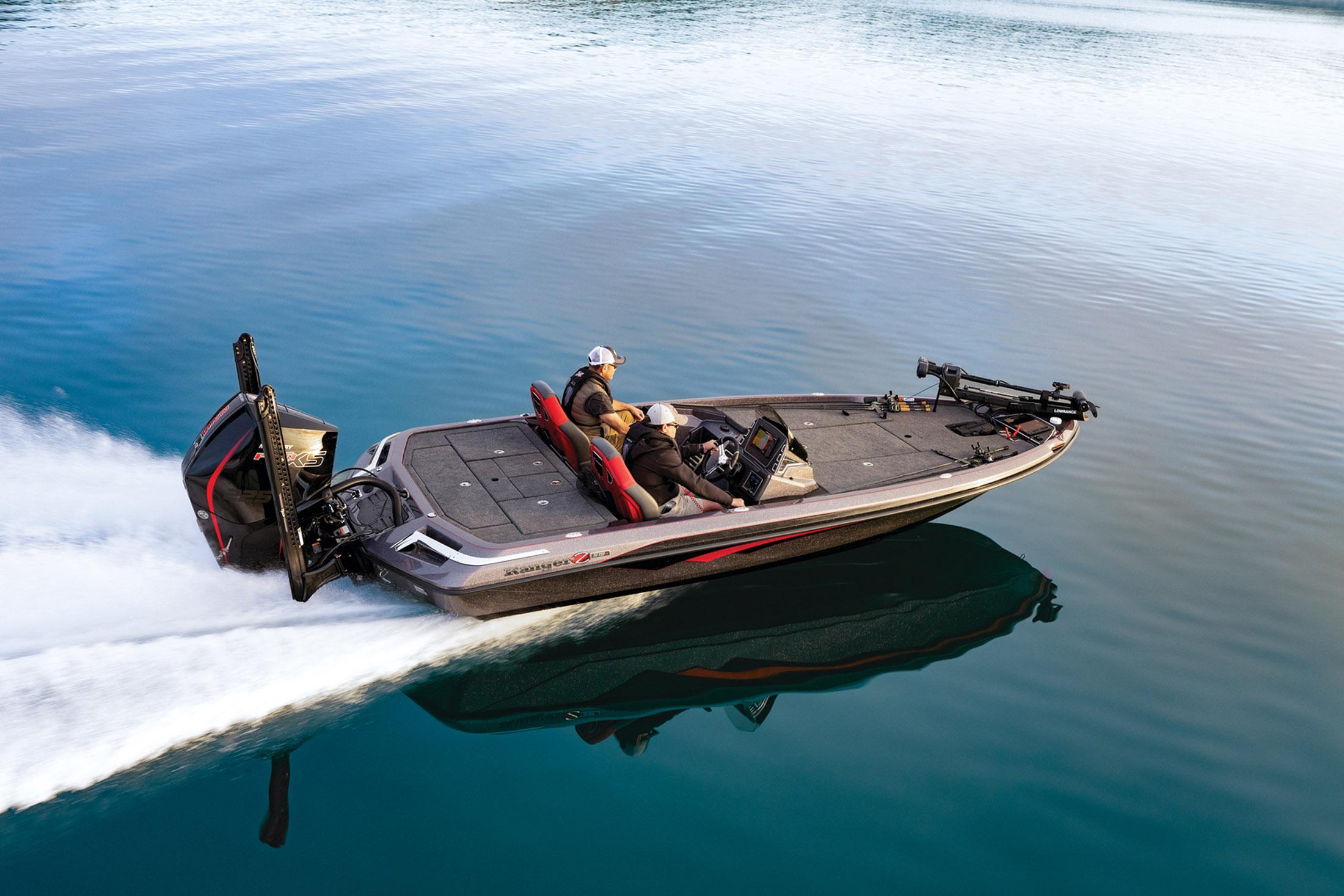

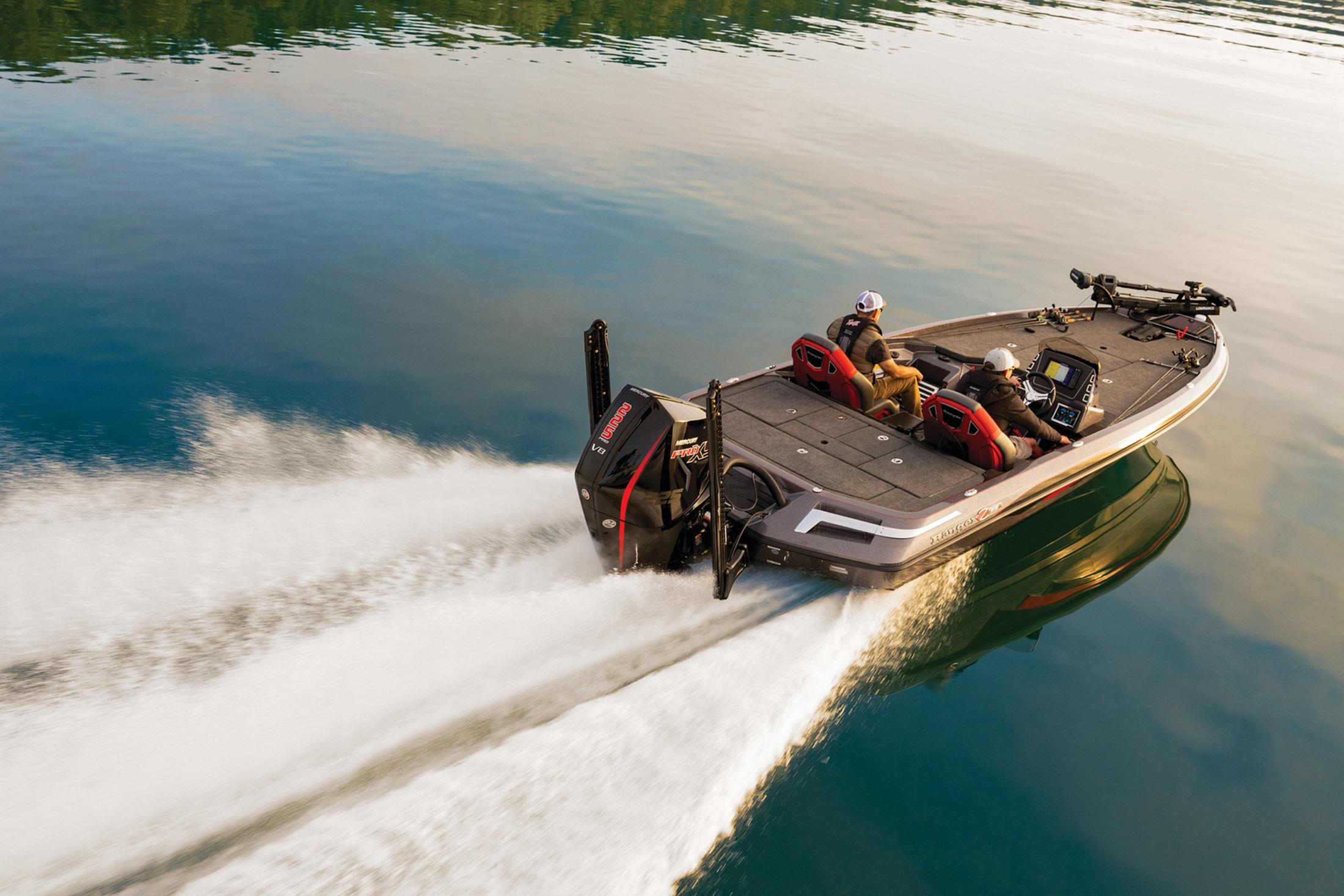

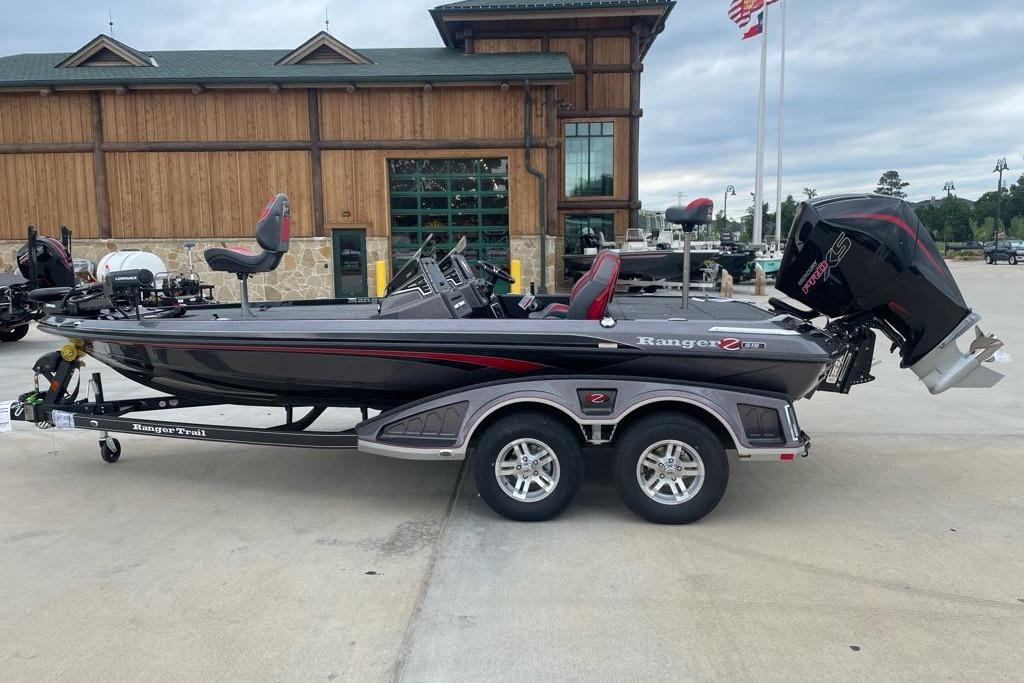

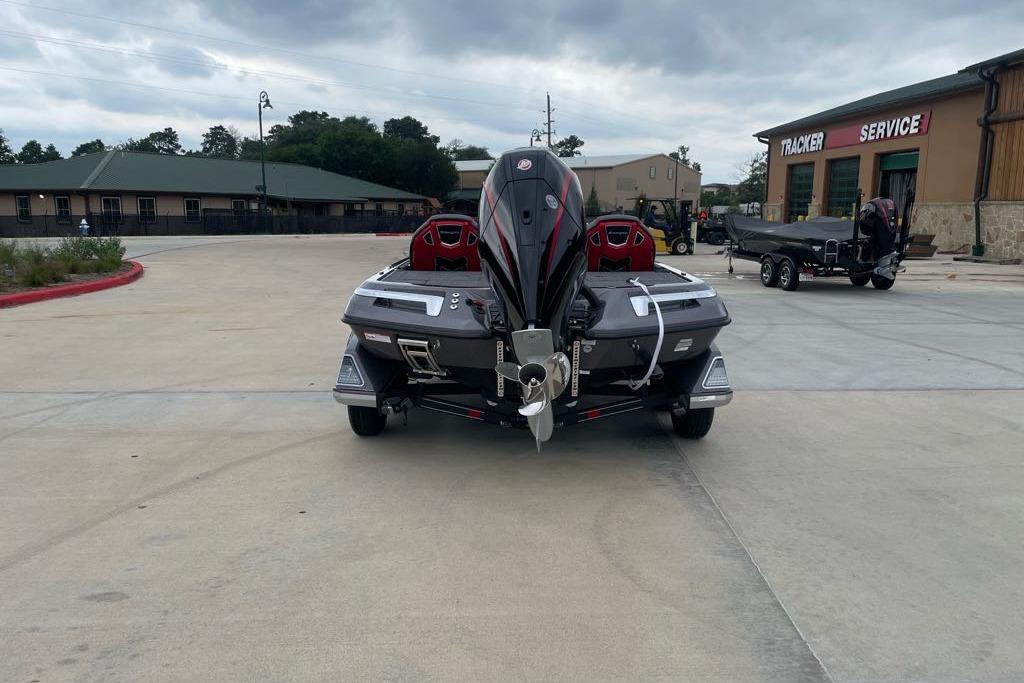

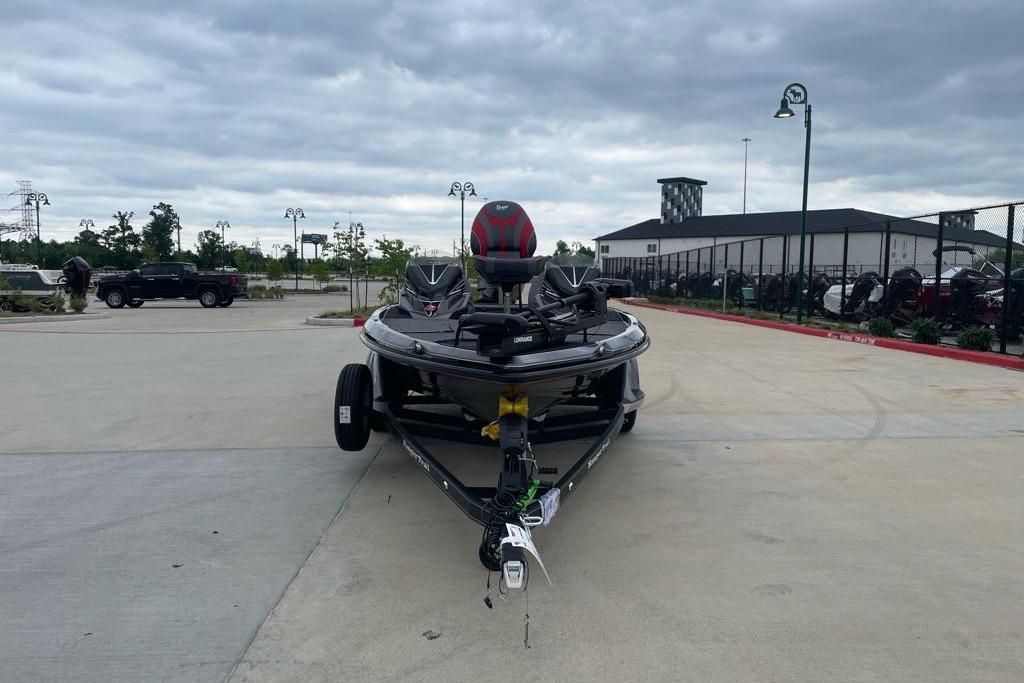

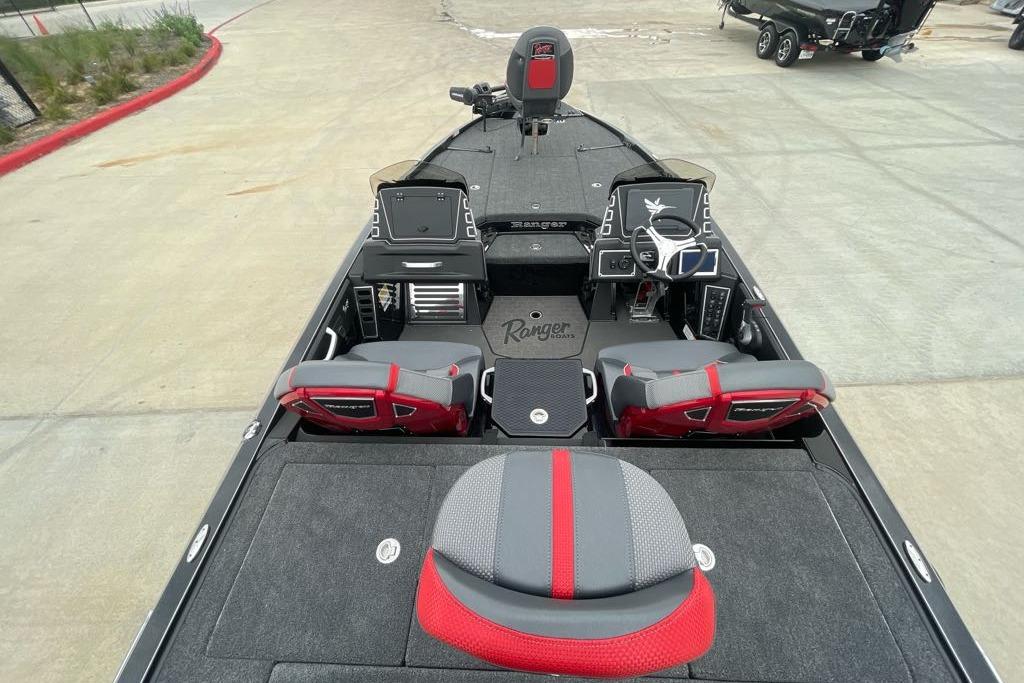

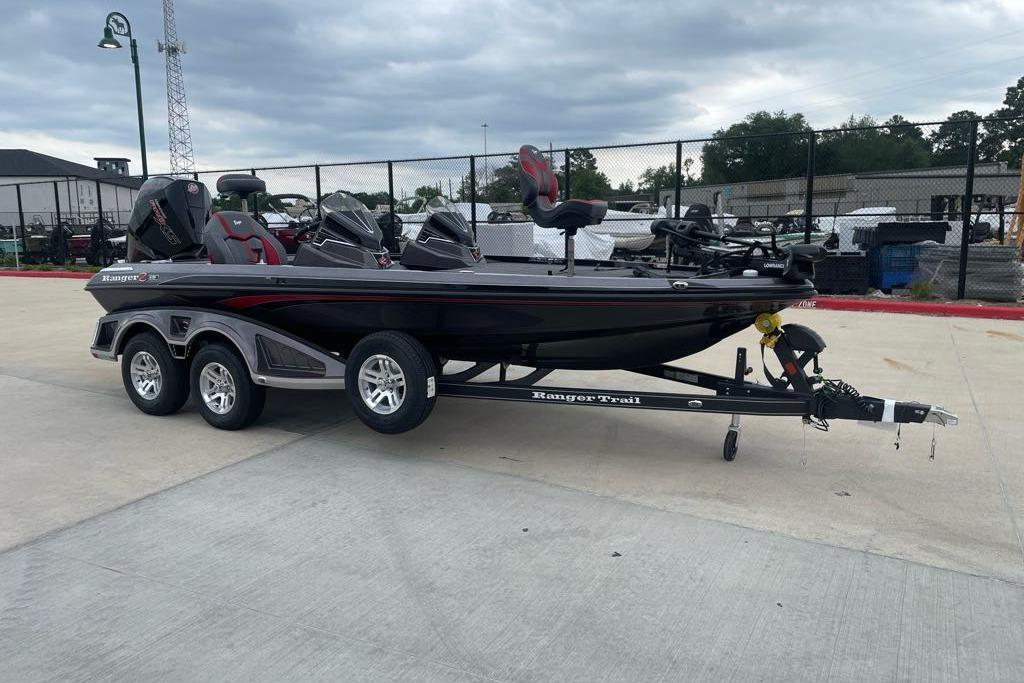

All new for 2025 is the Ranger Z519R, the latest in Ranger’s premium R Series lineup. Brimming with top-tier features, the Z519R has the fishability and all-around performance you’ve come to expect from Ranger with added touches to set you off on the water and at the ramp. Our proprietary Echelon™ rod storage system keeps loads of sticks secure and handy, while reducing hassle when fetching one. A padded front deck is adorned with push-to-close latches that eliminate tripping hazards associated with twist-to-close latches, and color-matched cockpit liner and compartments liners add classy functionality. Analog switching makes for easy adjustments on the fly, and an insulated 40-quart center step cooler holds more than a day’s worth of drinks. The Ranger touchscreen multifunction System Monitor puts engine parameters at your fingertips, while smooth, responsive steering gives effortless control of 225 horses in the Mercury® FourStroke V8. A refined running surface delivers on-rails handling at speed as well as unbeatable edge-to-edge stability on the trolling motor. A vast front deck gives ample space for two, and a world of storage underfoot. The Z519R is the latest in a long line of premium bassin’ rigs that stem from our unwavering Passion for Perfection™.
Built to be Yours™ - Available with a wide array of custom-matched trolling motors, electronics, and accessories

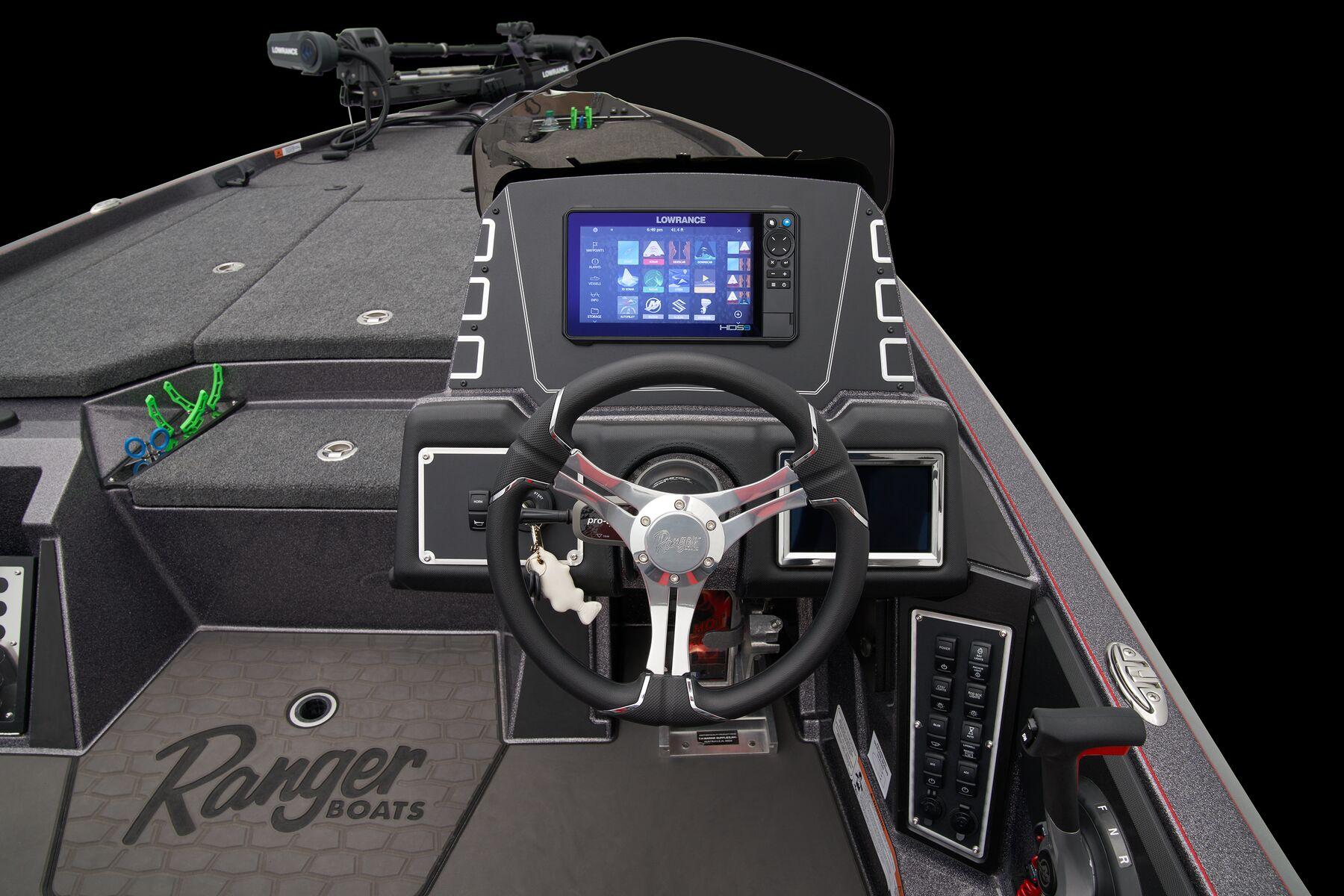

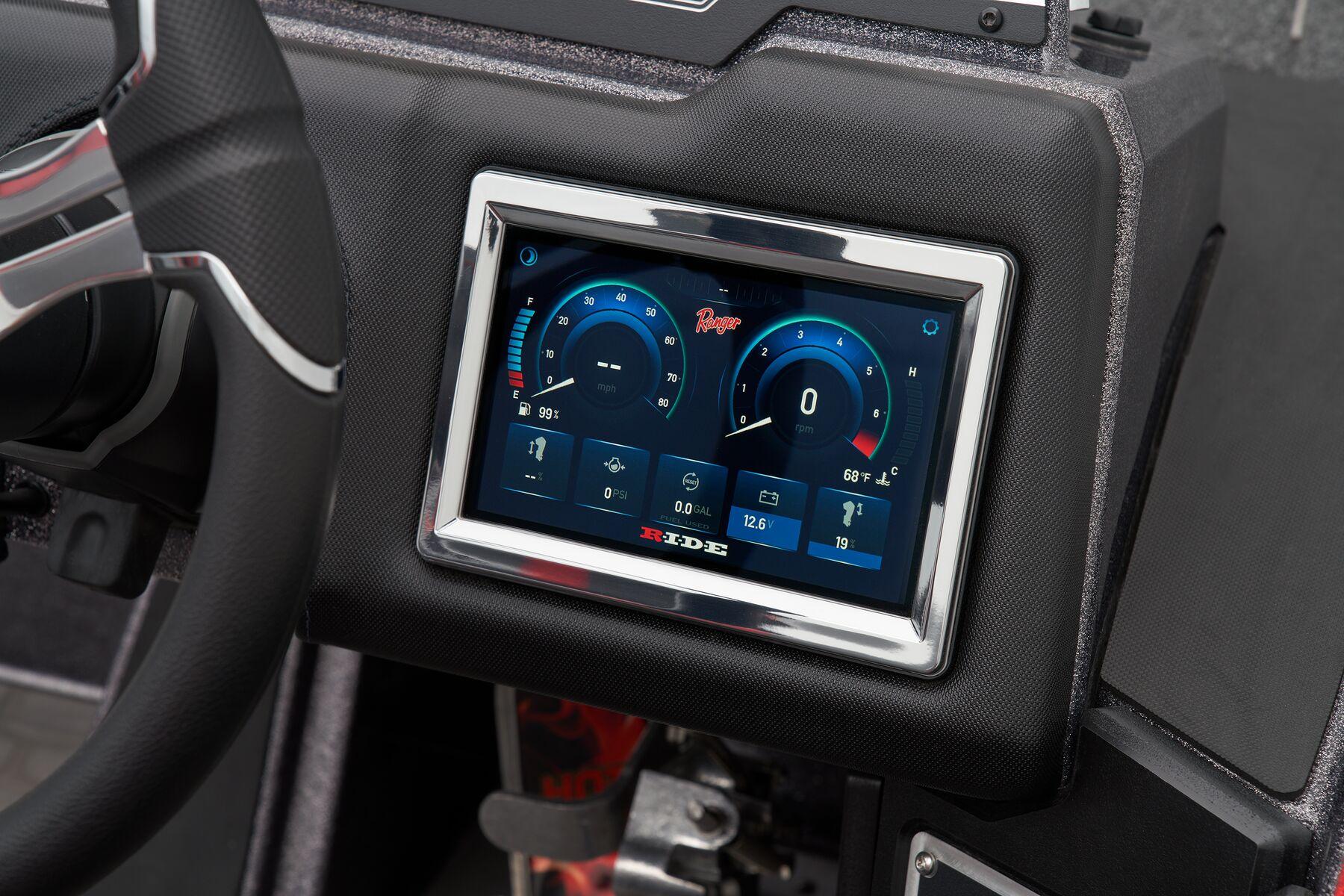

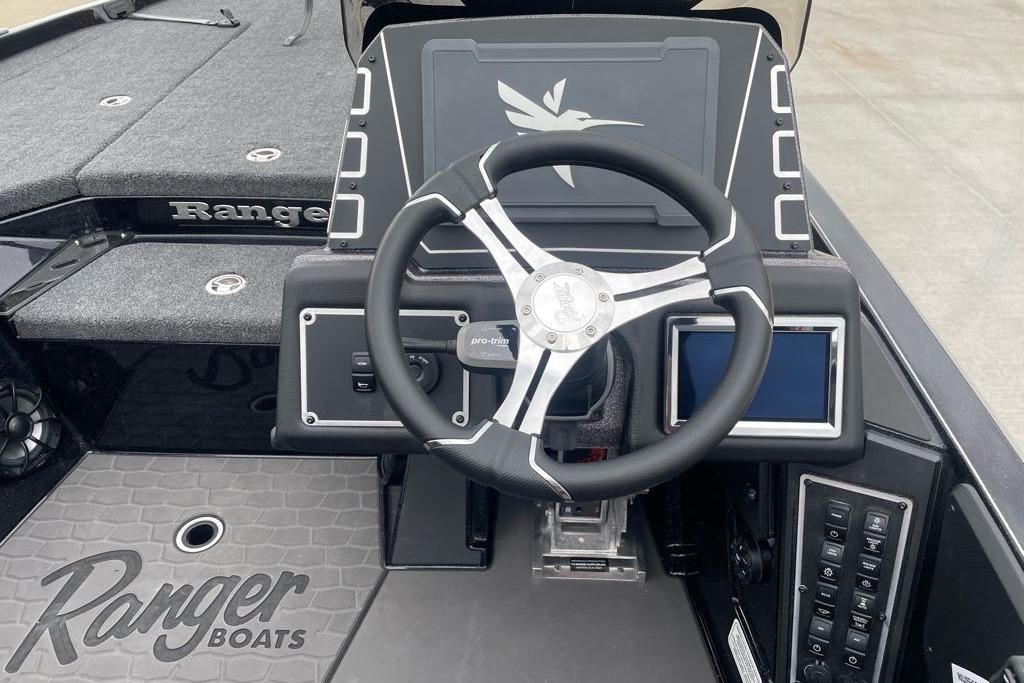

Ranger® System Monitor - 7" touchscreen that displays all boat and engine data at a glance
Easy-touch analog switching
Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker

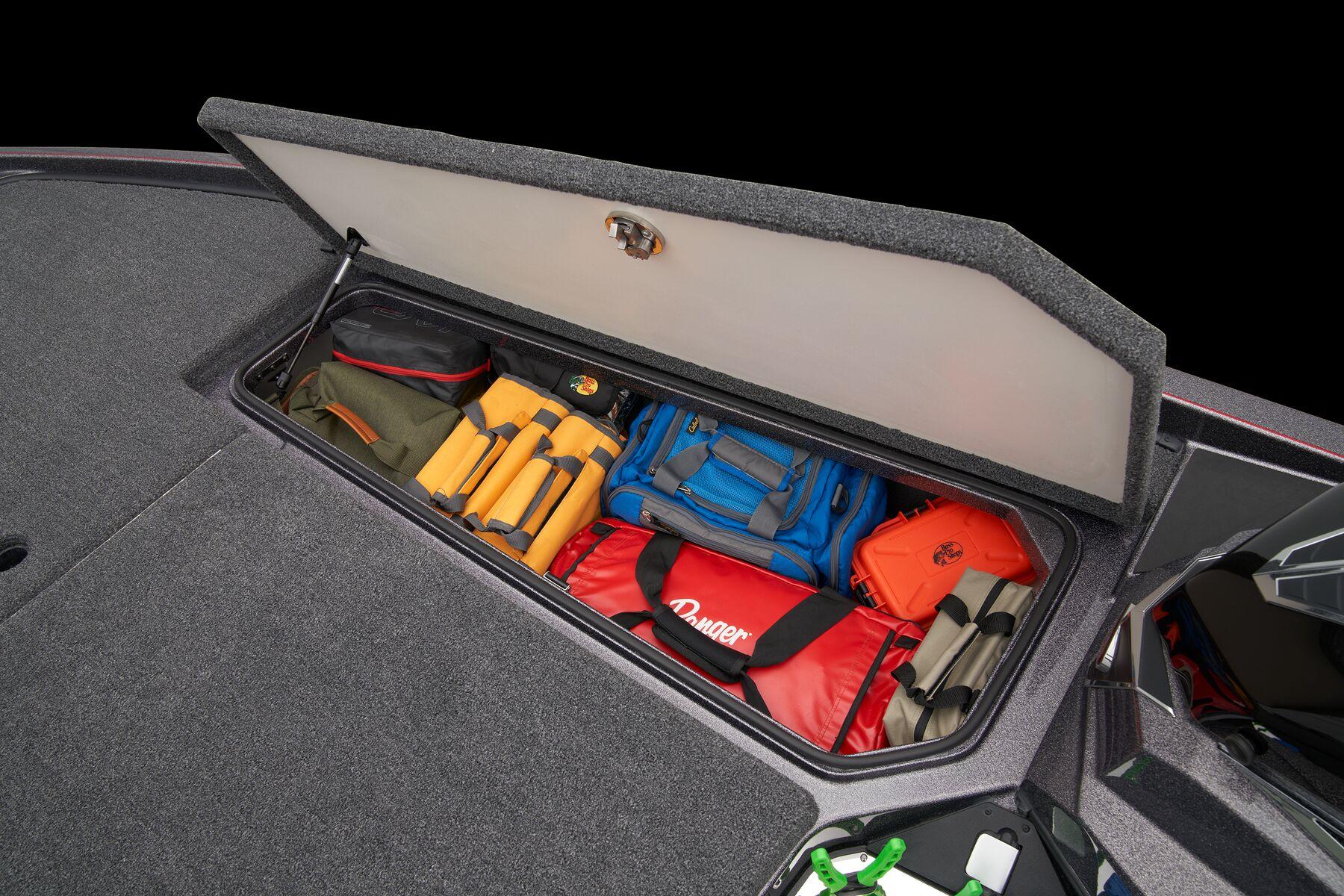

Padded Front Casting Deck
Pultruded Fiberglass Transom

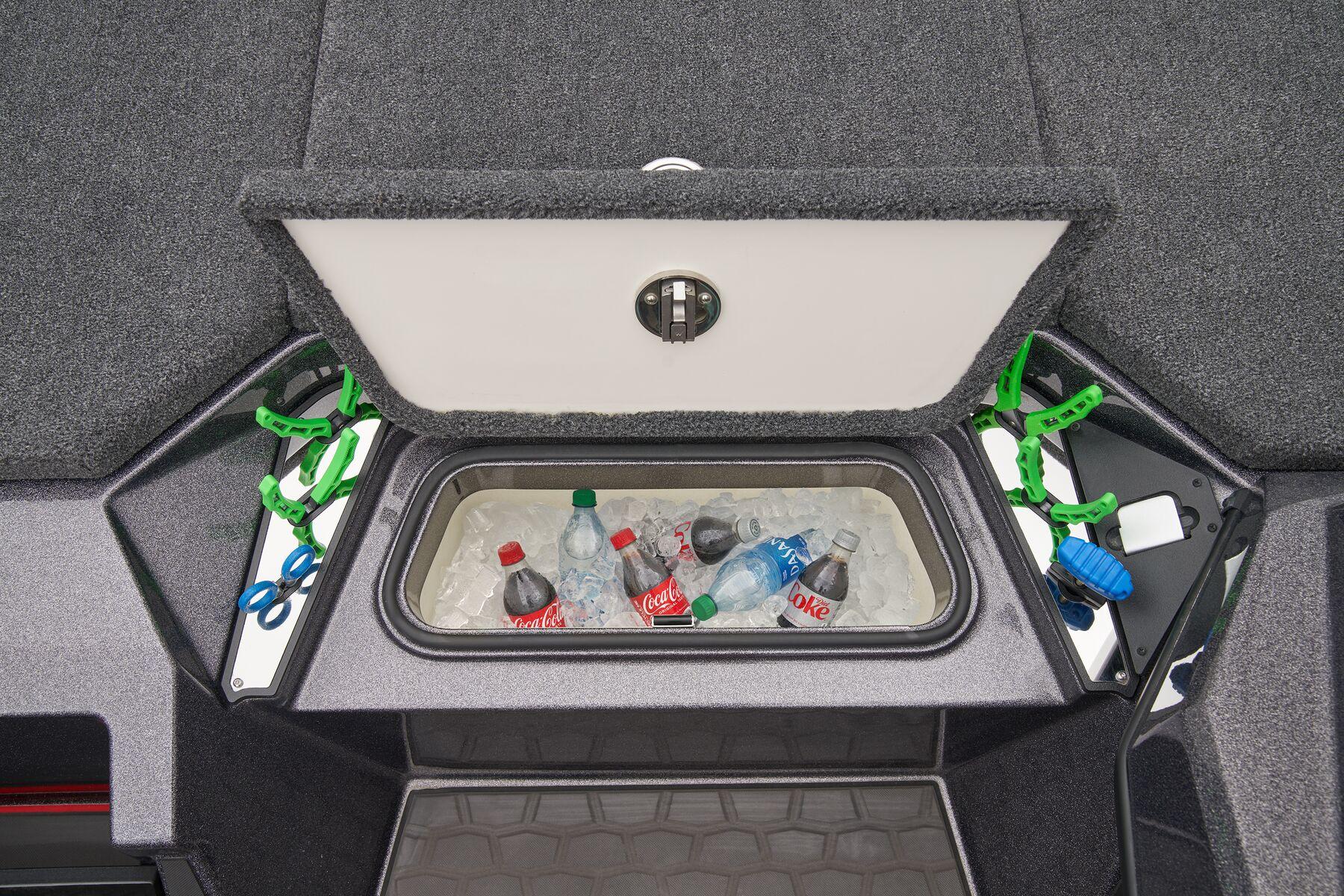

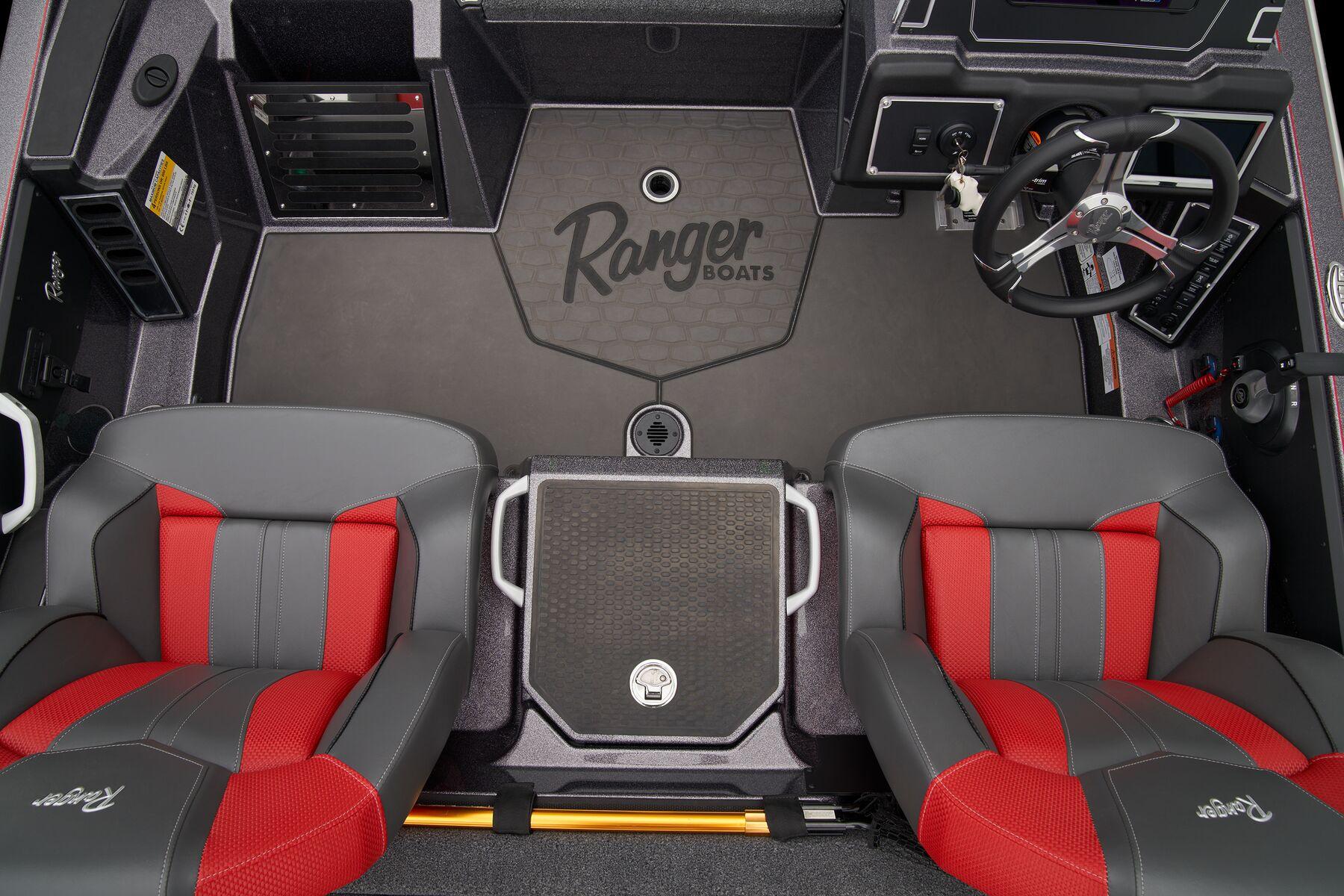

Insulated 40 qt. step-up cooler
Push-to-Close Latches
| Year | 2025 |
| Location | Spring, TX |
| Condition | New |
| Sales Status | Active |
| Horsepower (total) | 225 hp |
| Engine Make | MERCURY MARINE |
| Engine Model | 225L PXS4 TQM 1.75 |
| Hull Material | Fiberglass |
| Hull ID | RGR52004C525 |
| Length |
19' 9" |
| Beam |
96" |
| Max. Recommended HP |
225 HP |
| Engine Shaft Length |
20" |
| Inside Depth |
22" |
| Fuel Capacity |
50 gal. |
| Livewell Capacity |
26 gal. |
| Total Person, Motor, Gear |
1580 lbs. |
| Approximate Boat Weight |
1750 lbs. |
| Rod Box Length - Port Top Shelf |
7' 6" |
| Rod Box Length - Port Bottom Shelf |
7' 0" |
| Rod Box Length - Center Row 1 |
8' 0" |
| Rod Box Length - Center Row 2 |
7' 6" |
| Rod Box Length - Starboard |
7' 0" |
| Max. Person Capacity |
5 persons |
| Trailer GVWR |
4500 lbs. |
| Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate) |
25' 7" |
| Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate) |
23' 6" |
| Width On Trailer |
102" |
Custom Details

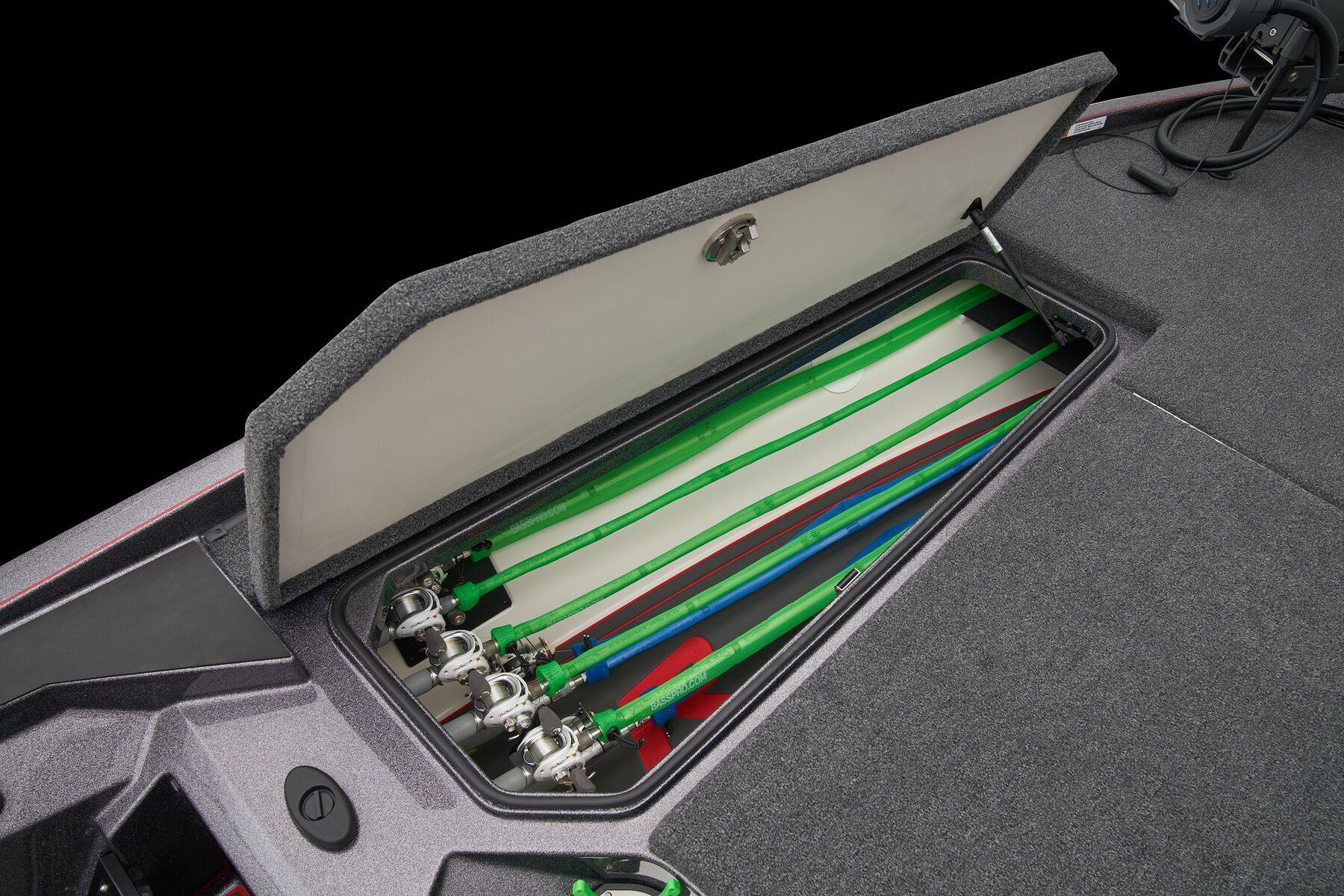

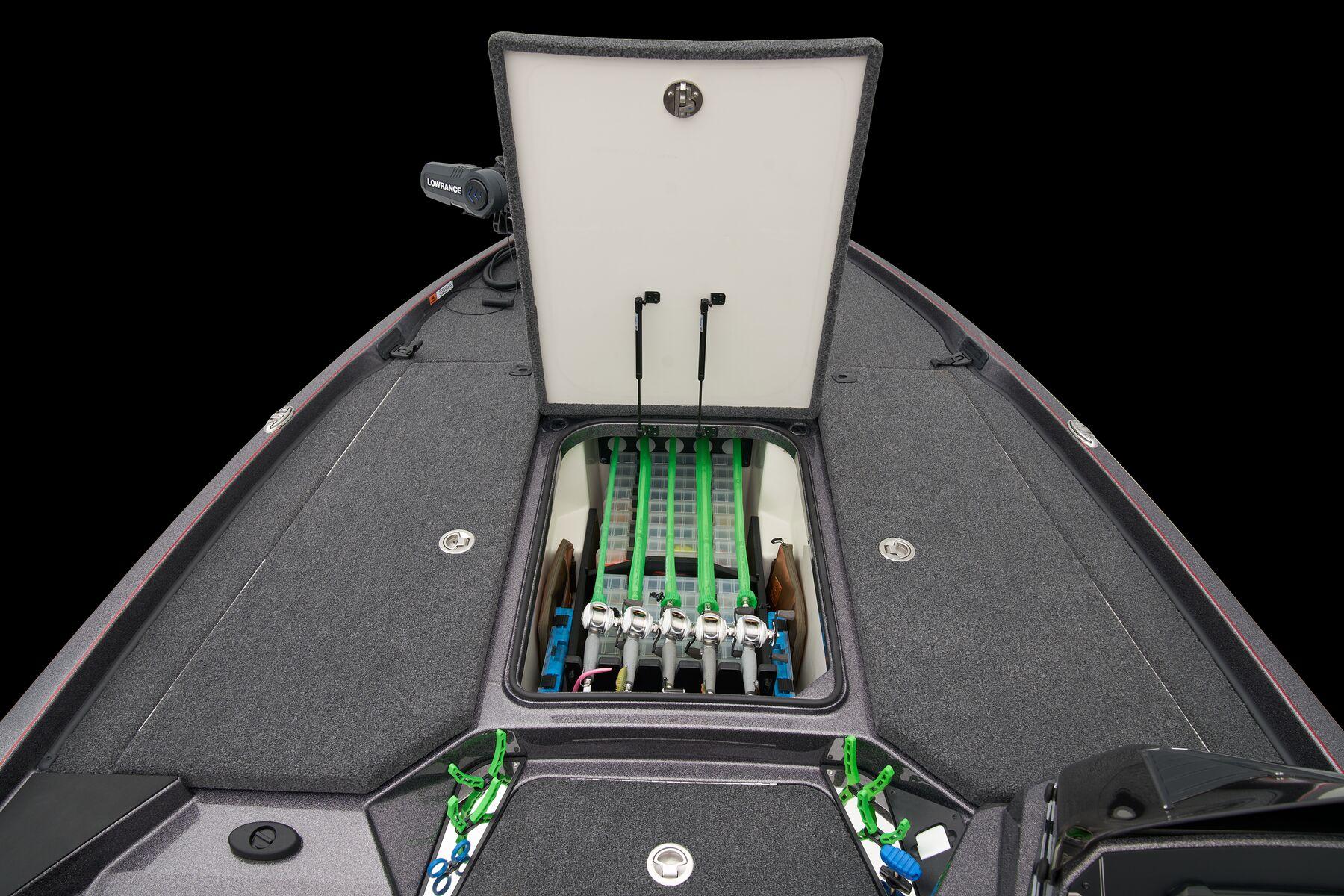

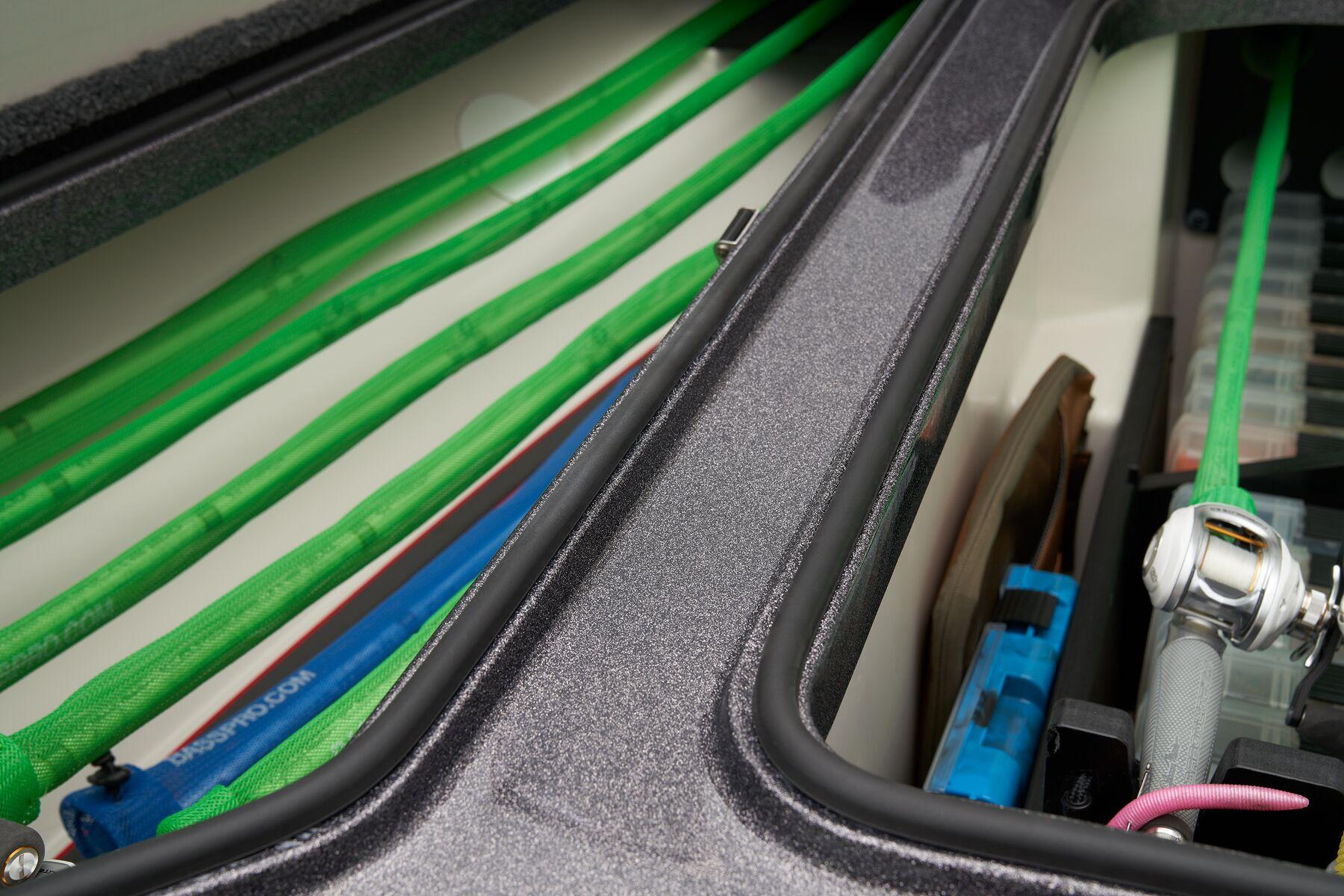

Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers
Power Ventilation Rod Storage™

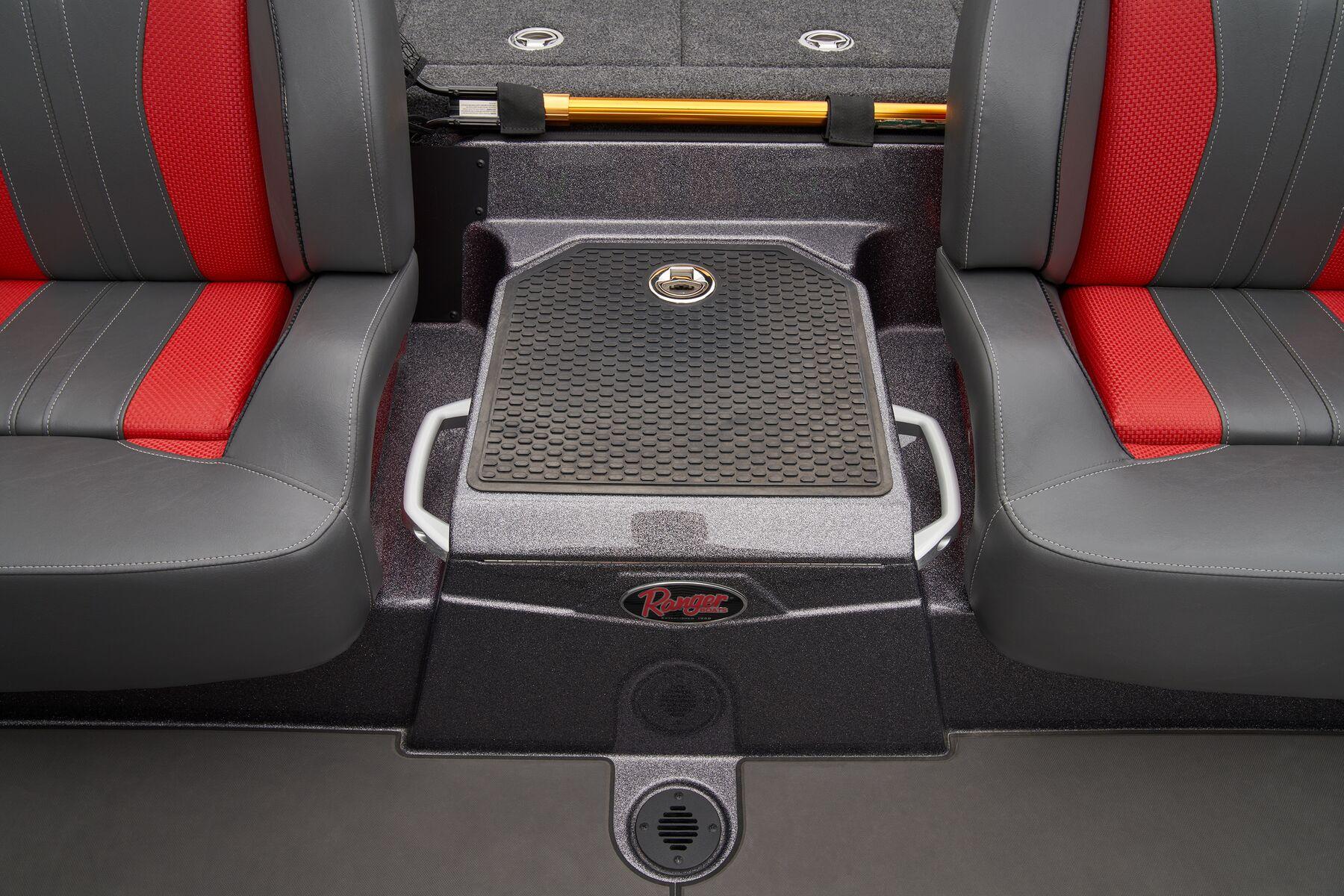

Insulated 40 qt. step-up cooler

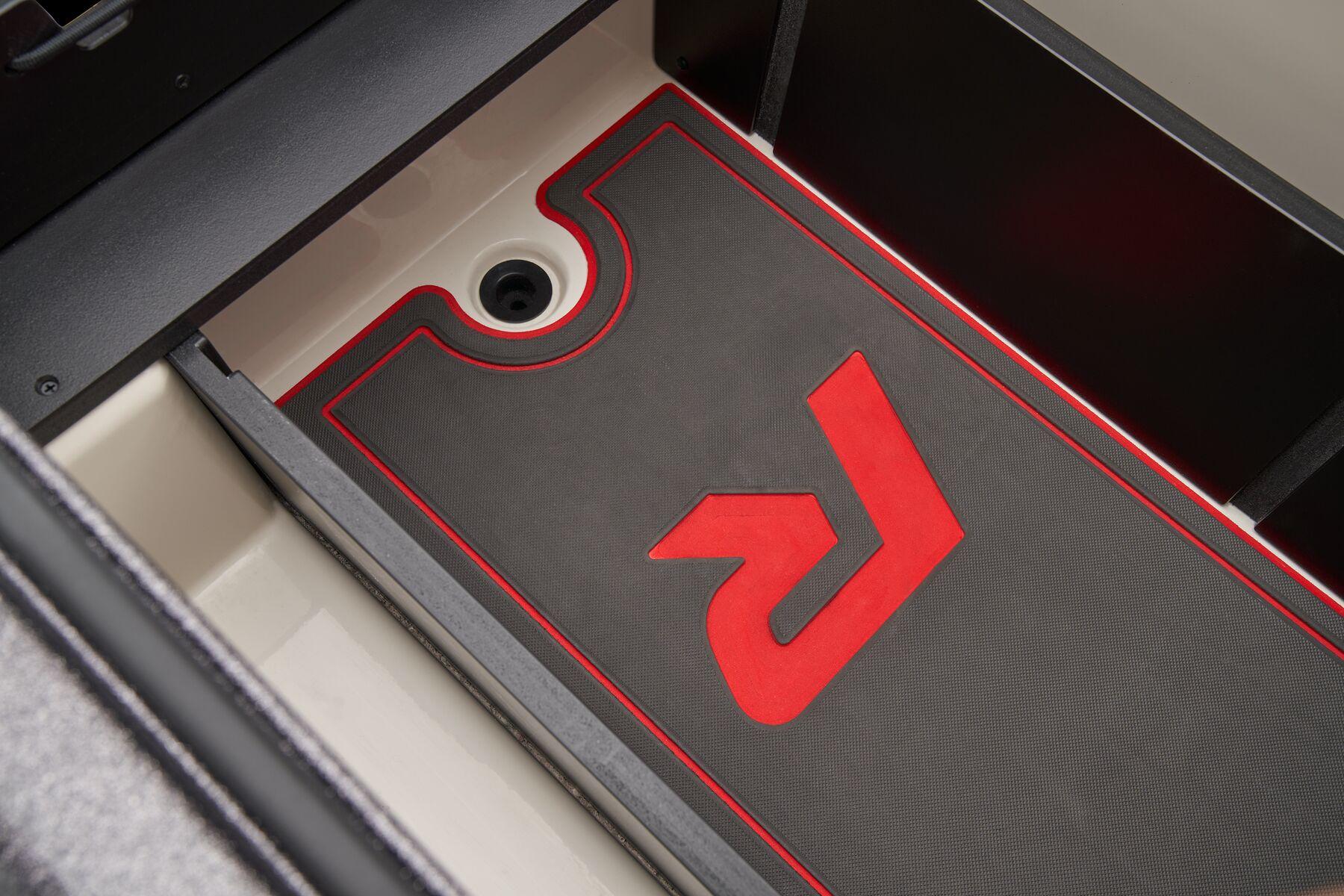

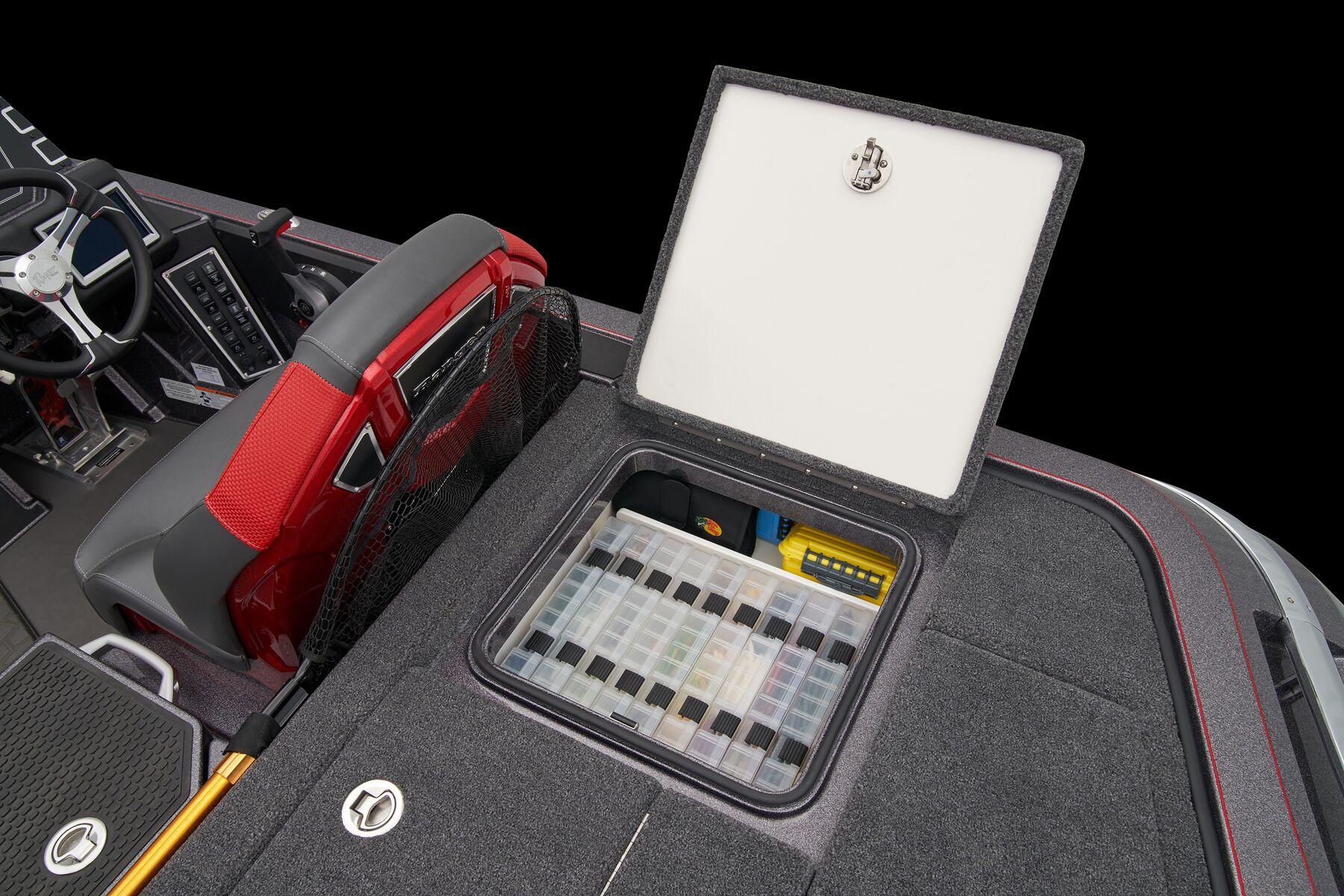

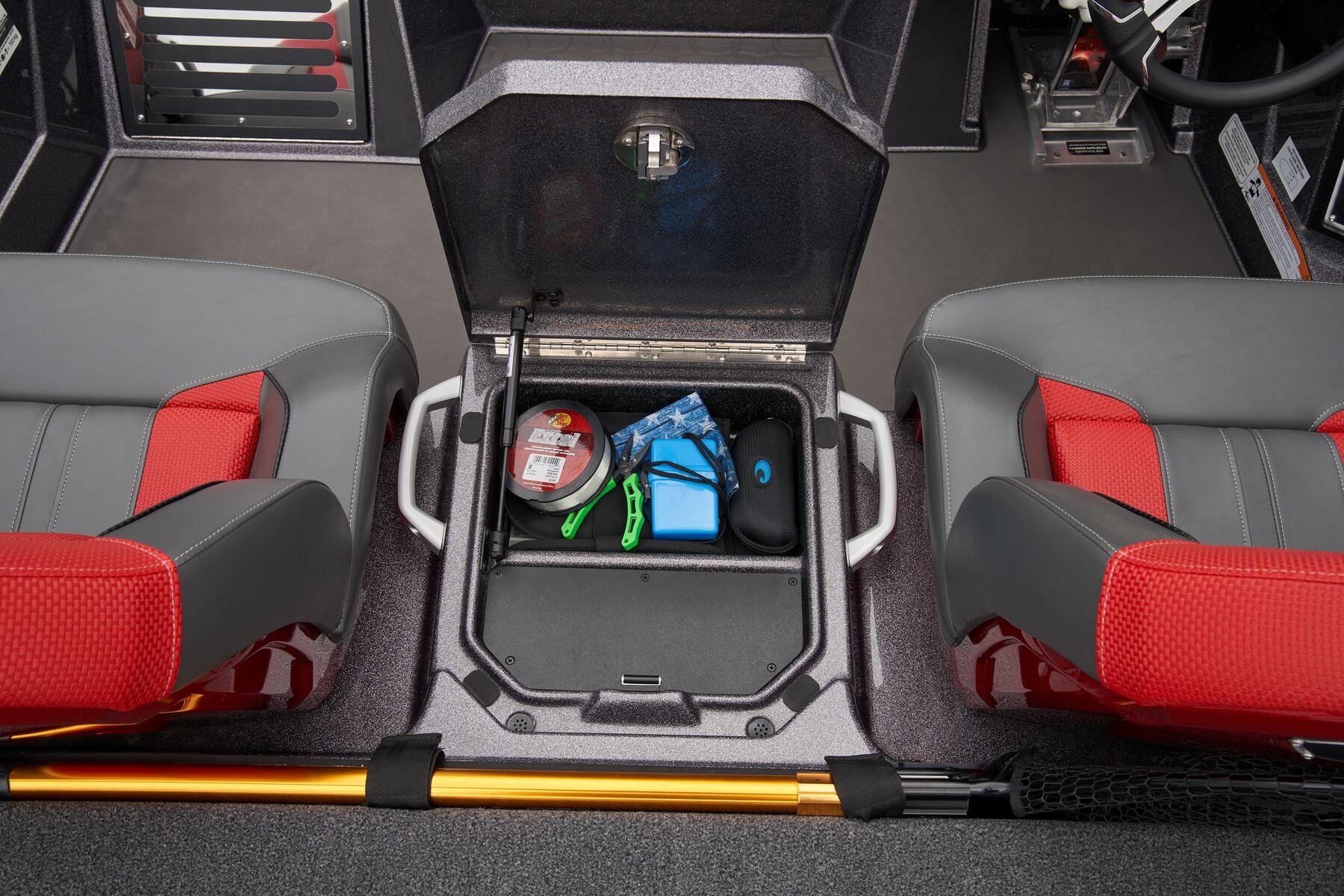

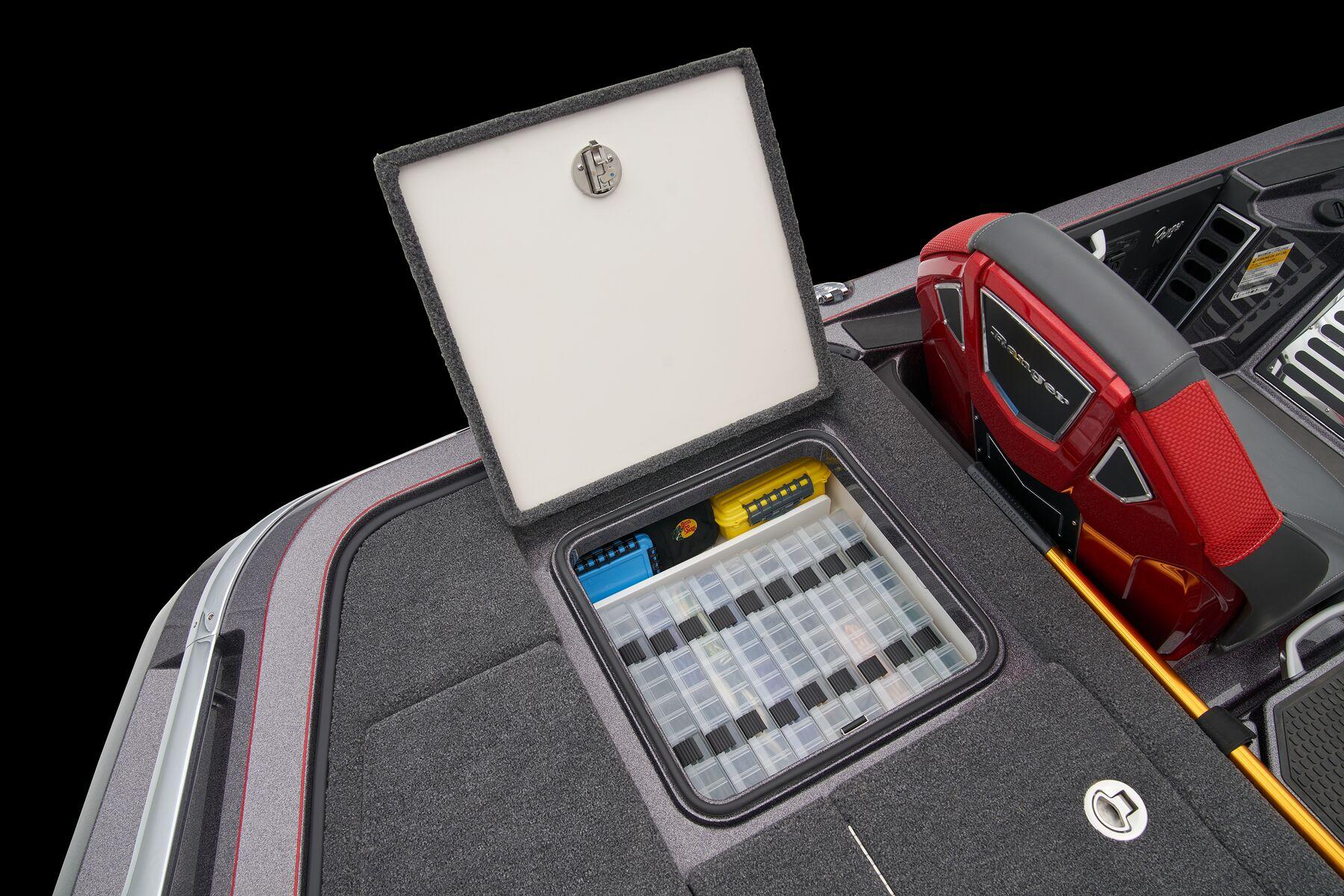

Integrated center-storage rod & tackle management system

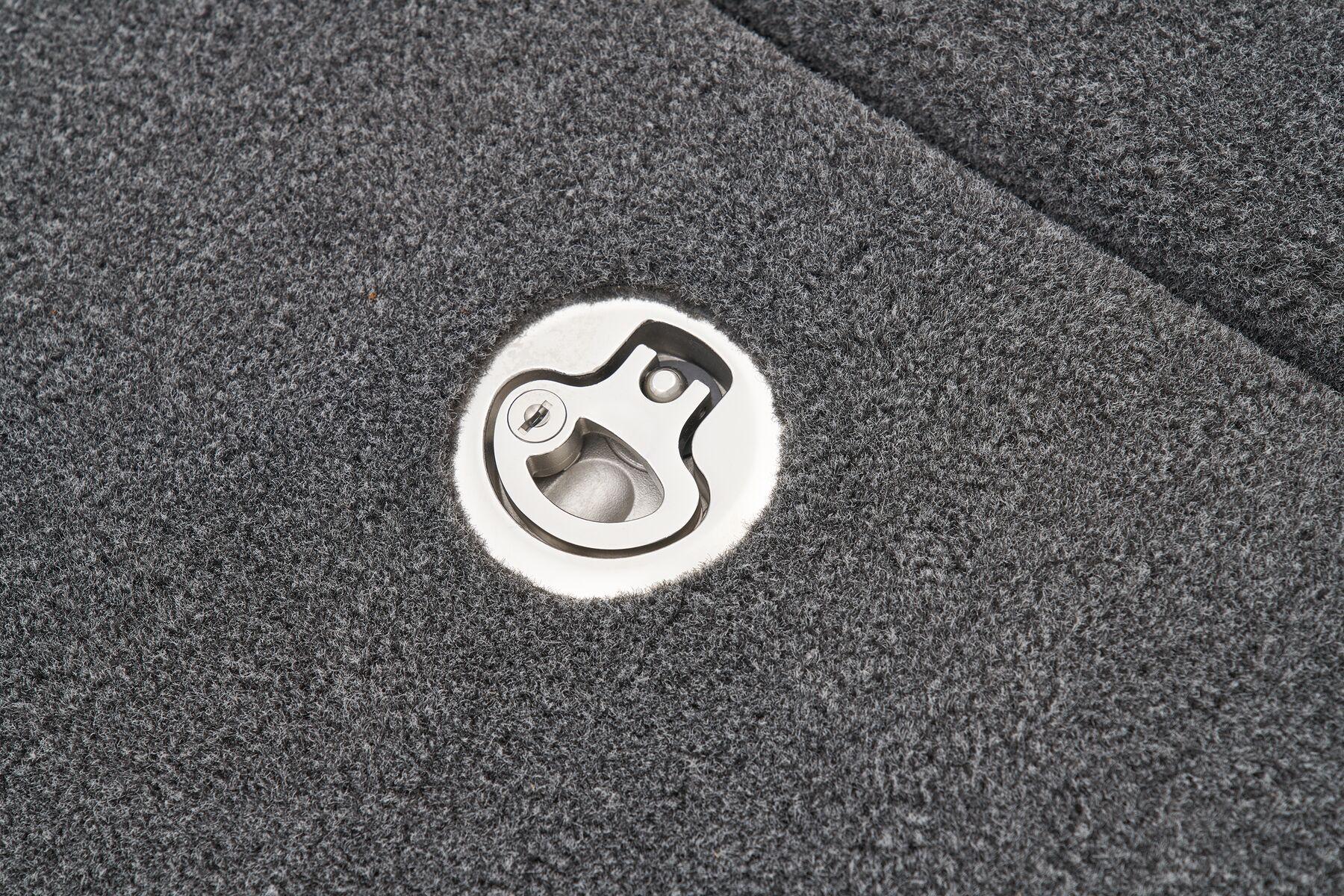

Stainless steel push-to-close locking latches

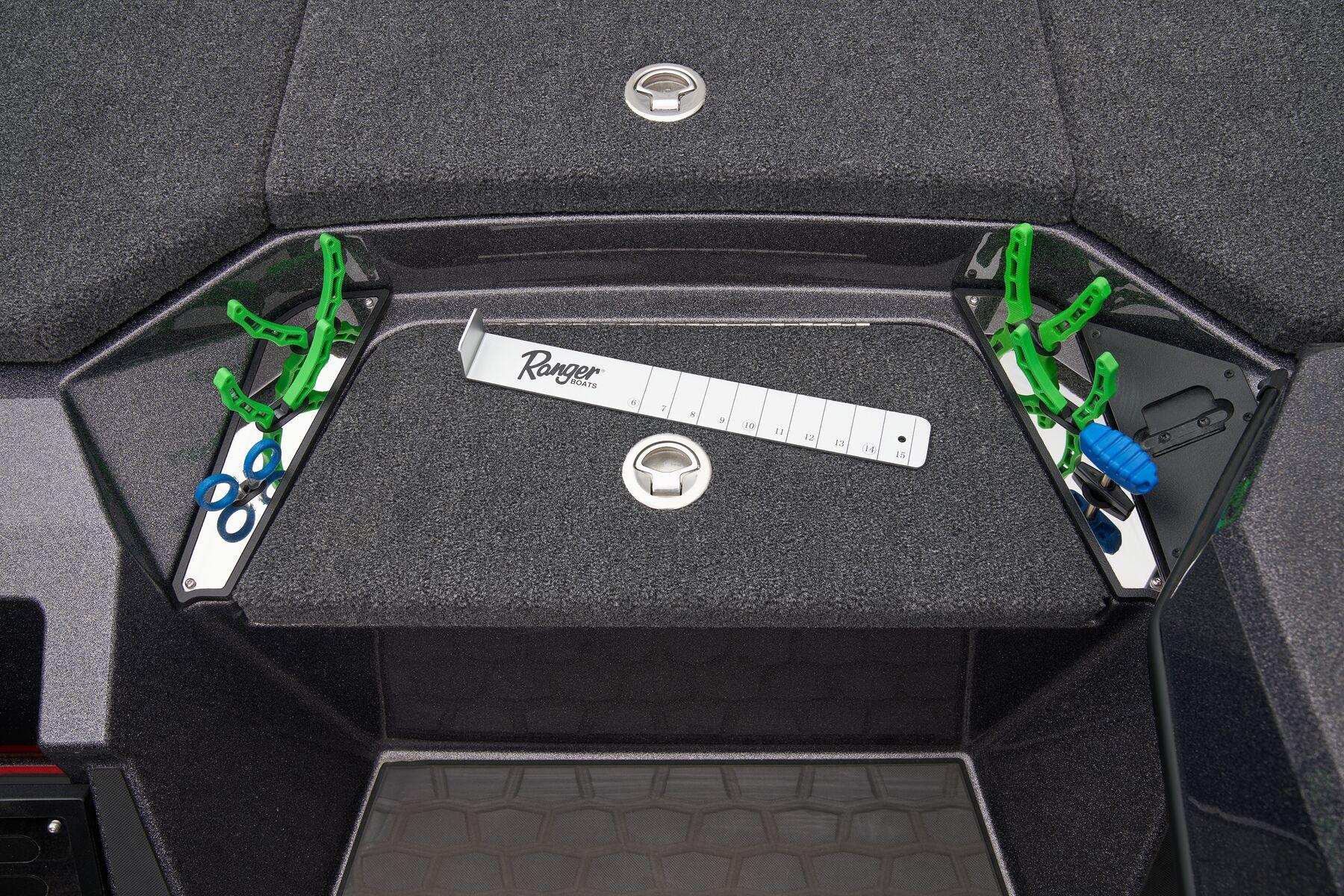

Ranger® tournament measuring board integrated at front deck step

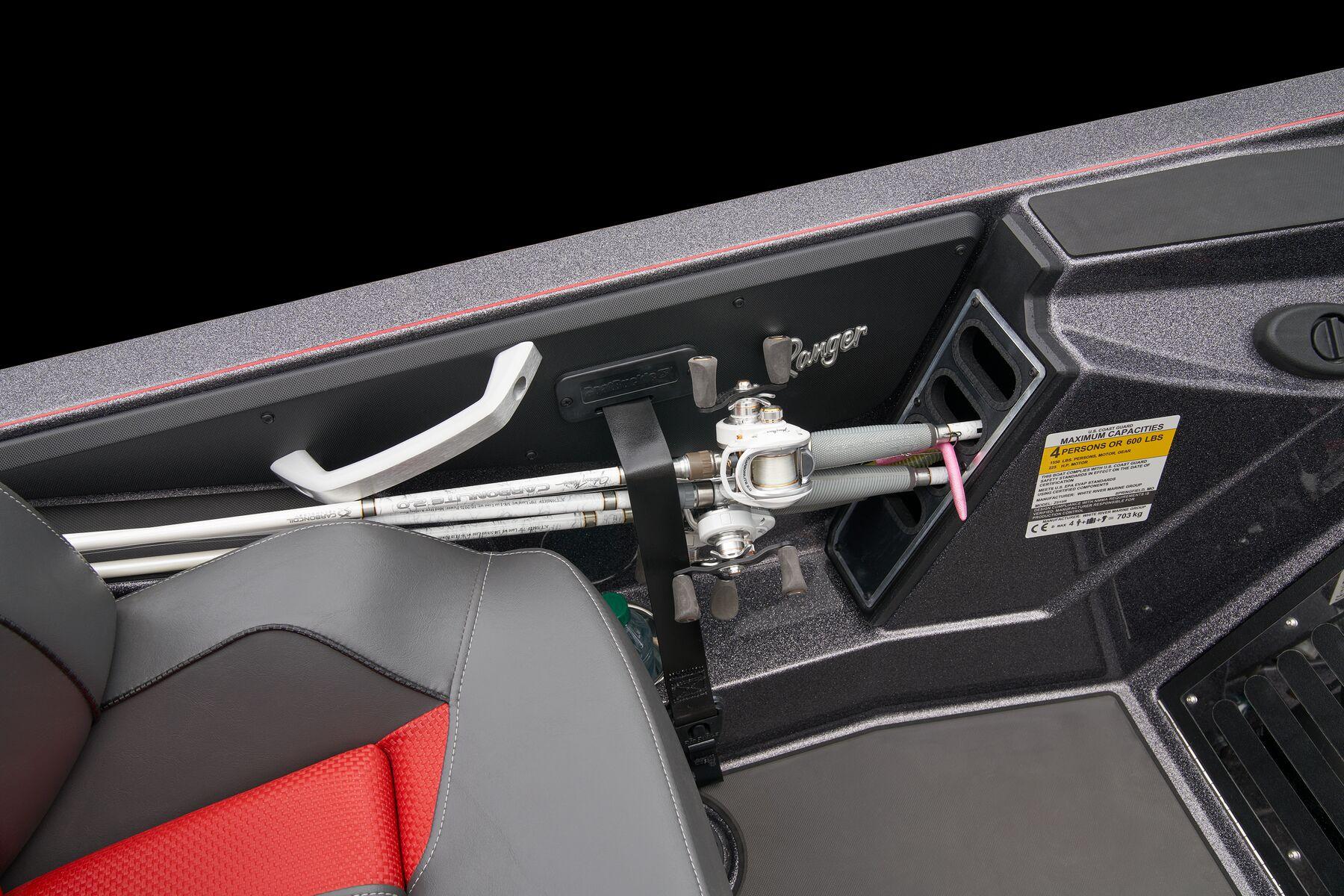

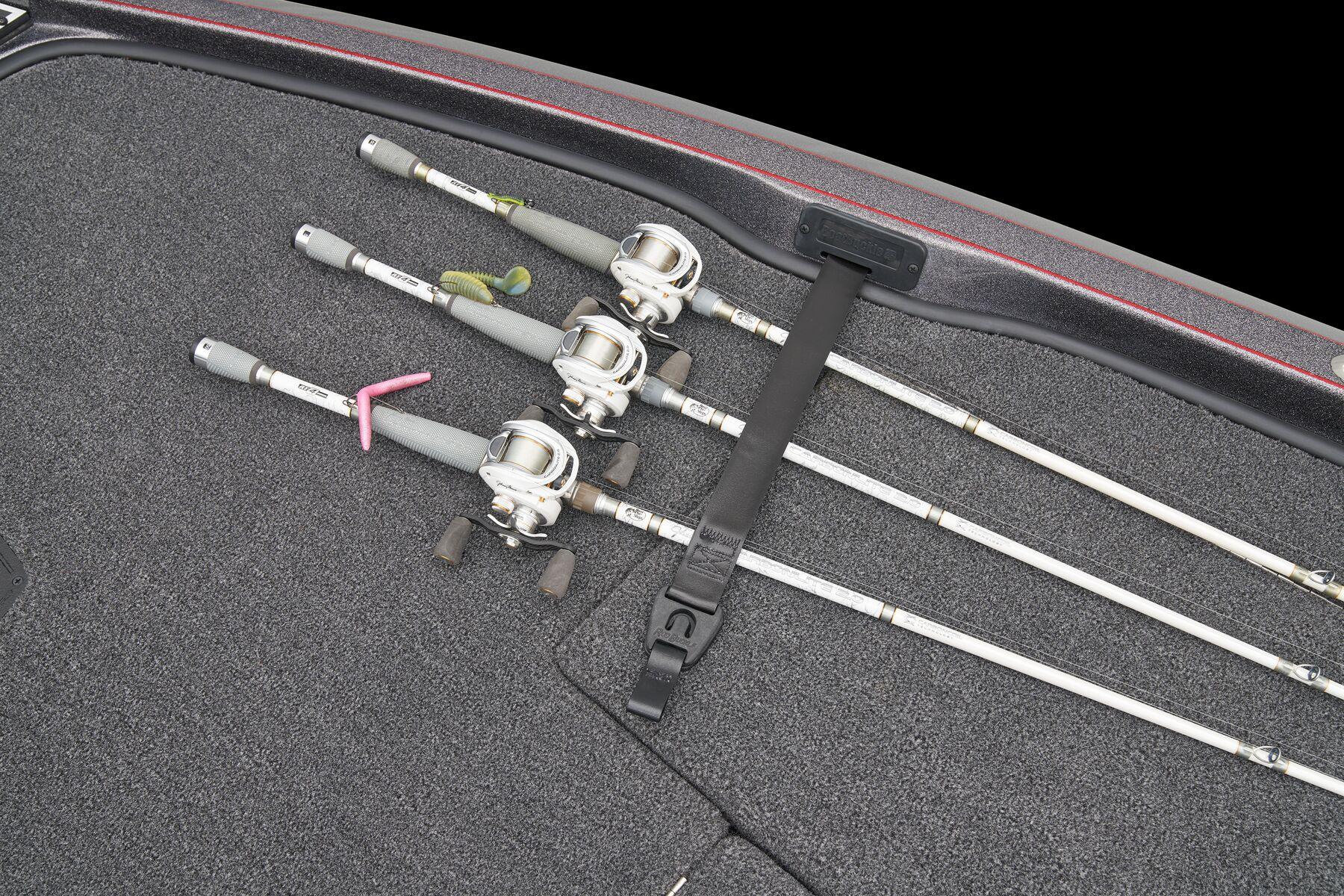

Runnin' rod rack w/ retractable strap
Remote drain plug

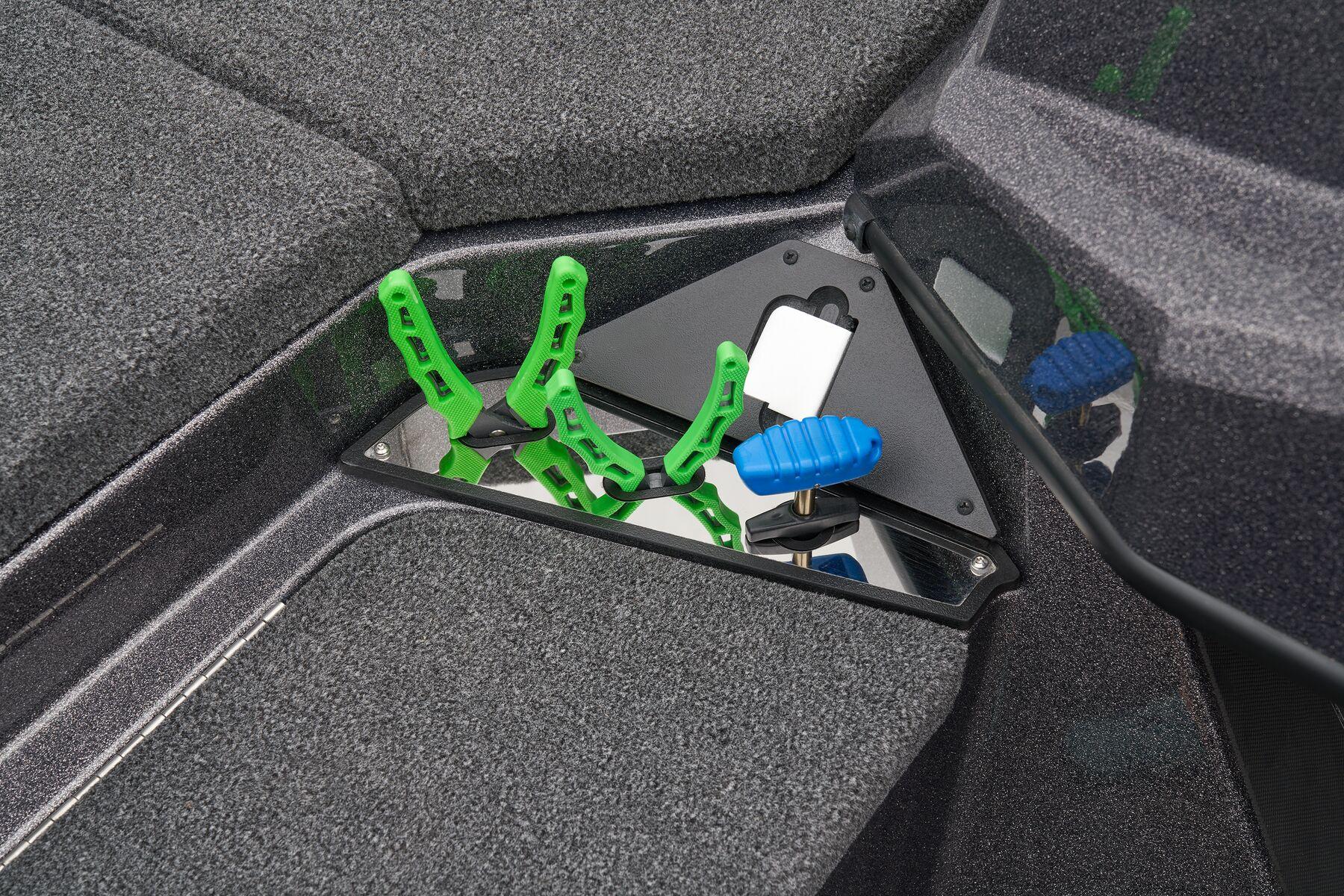

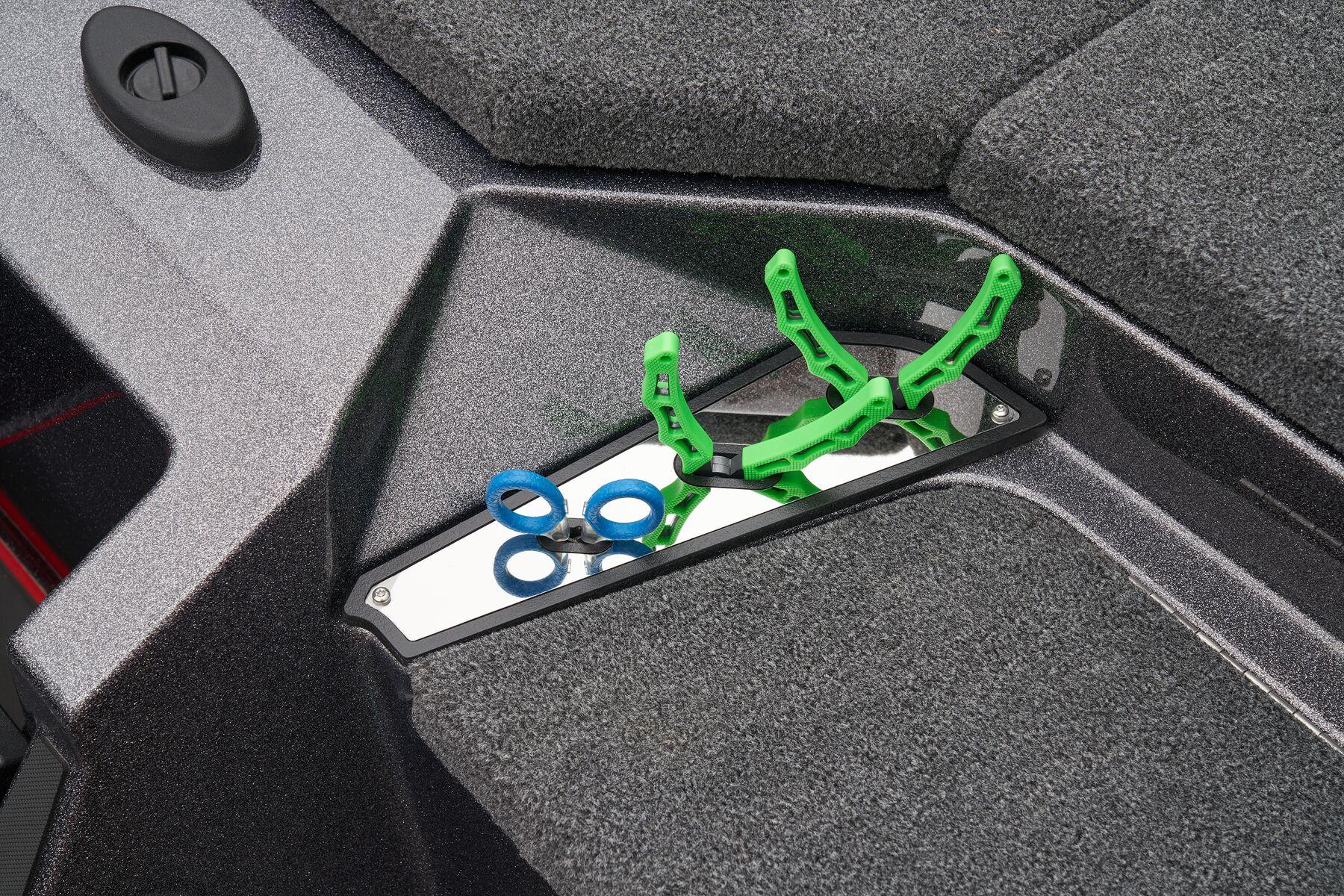

Tool holders at bow and front deck step

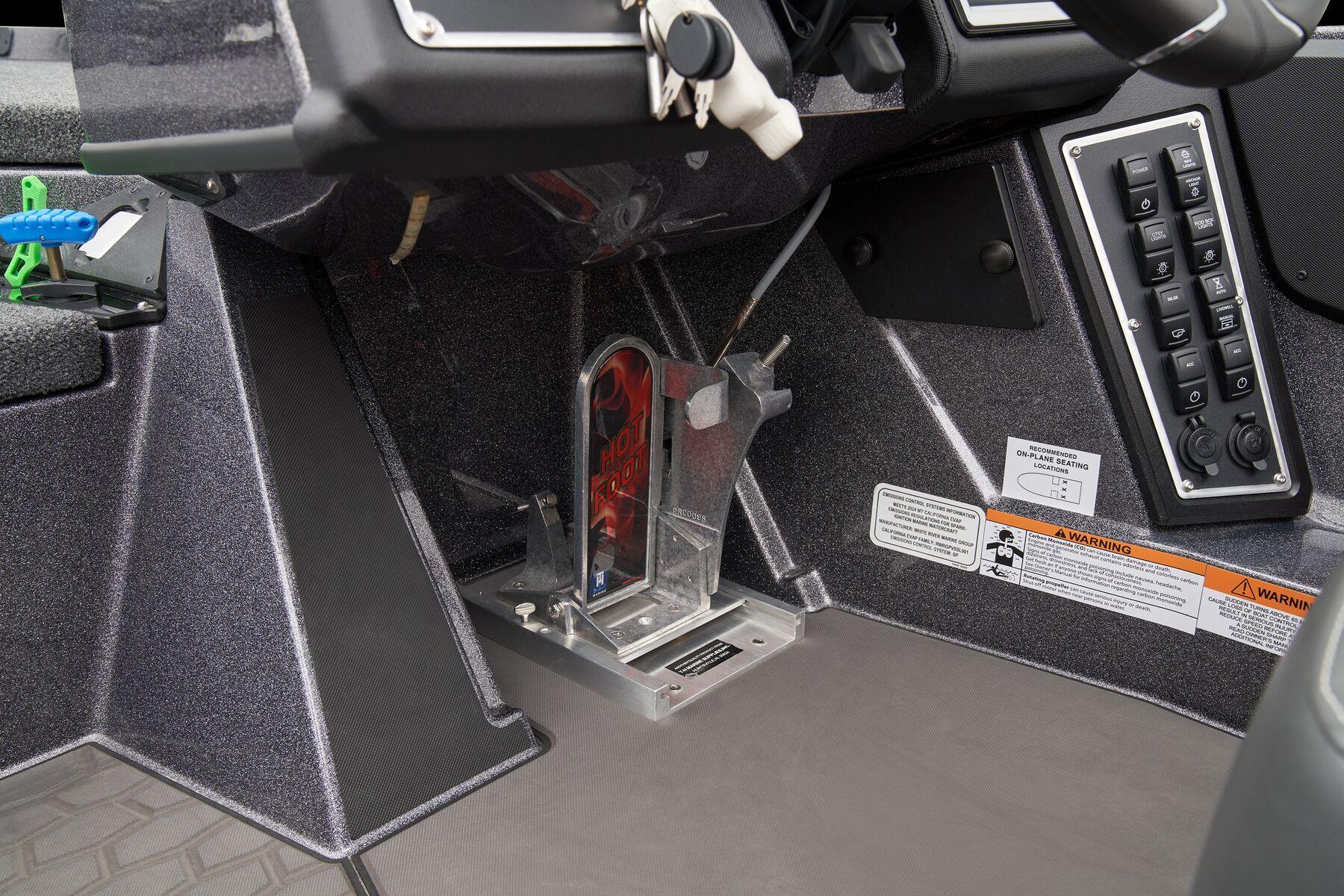

Molded-in driver / passenger footrests
Integrated stainless steel cup holders
Electronics
Built to be Yours™ - Available with a wide array of custom-matched trolling motors, electronics, and accessories

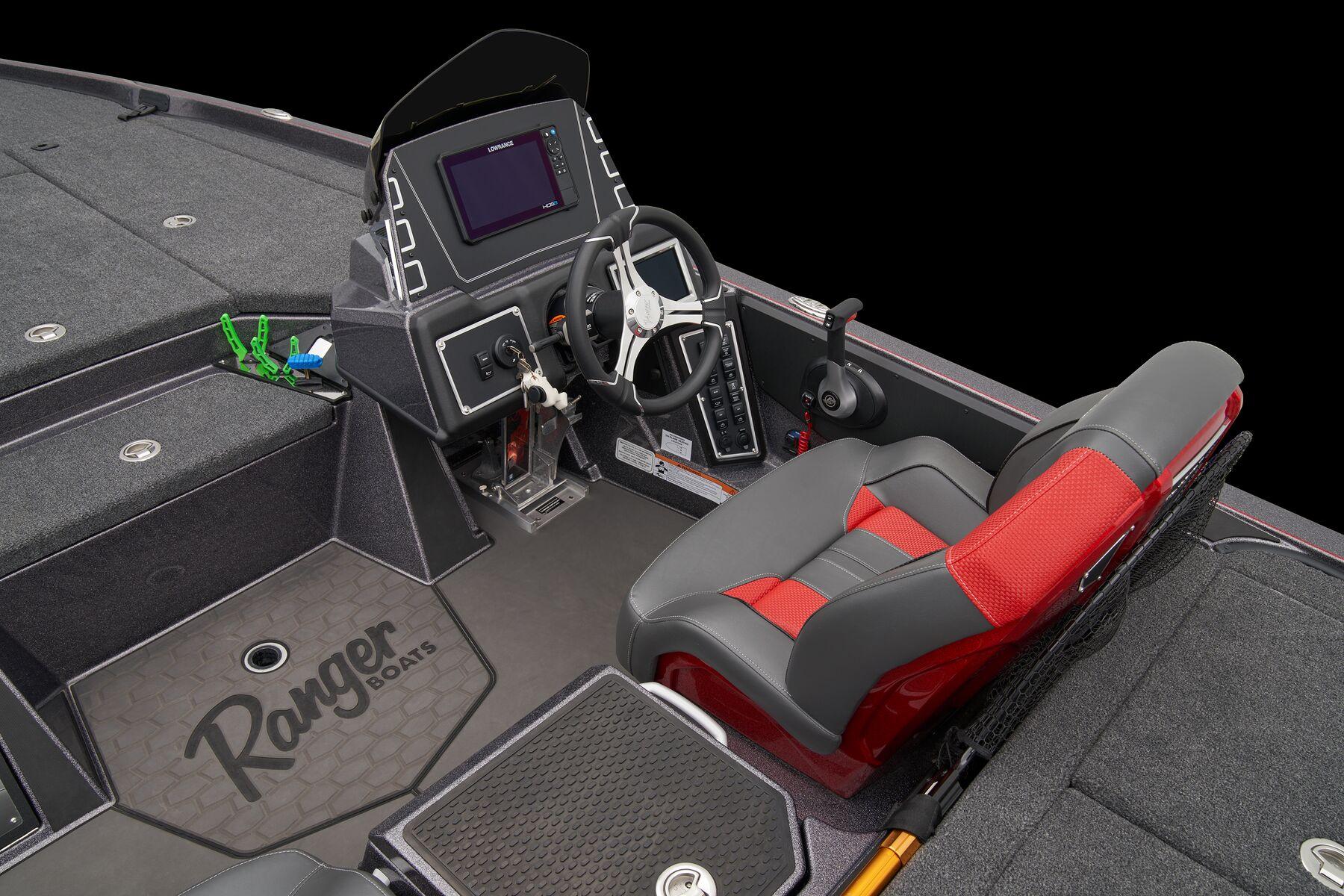

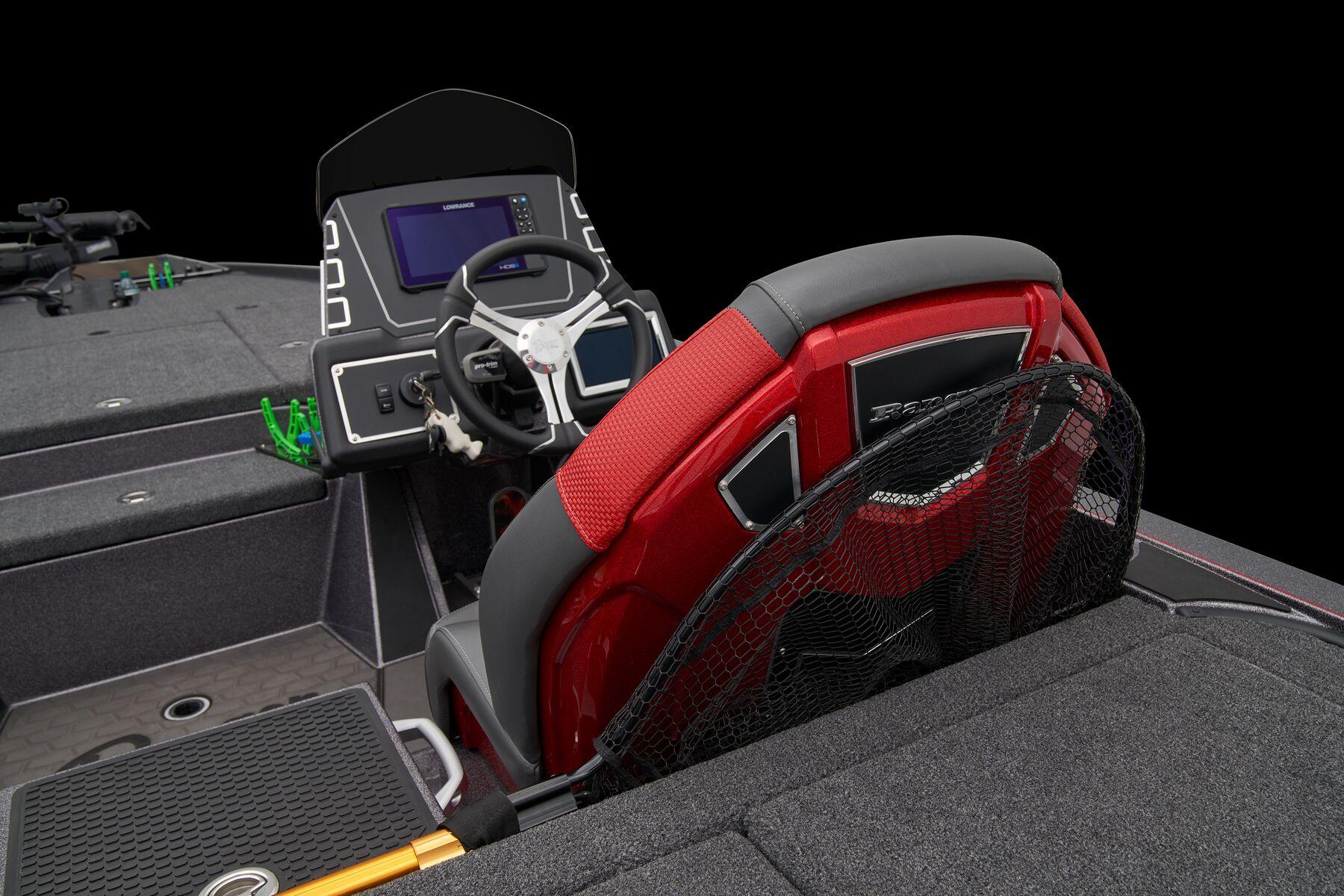

Ranger® System Monitor - 7" touchscreen that displays all boat and engine data at a glance

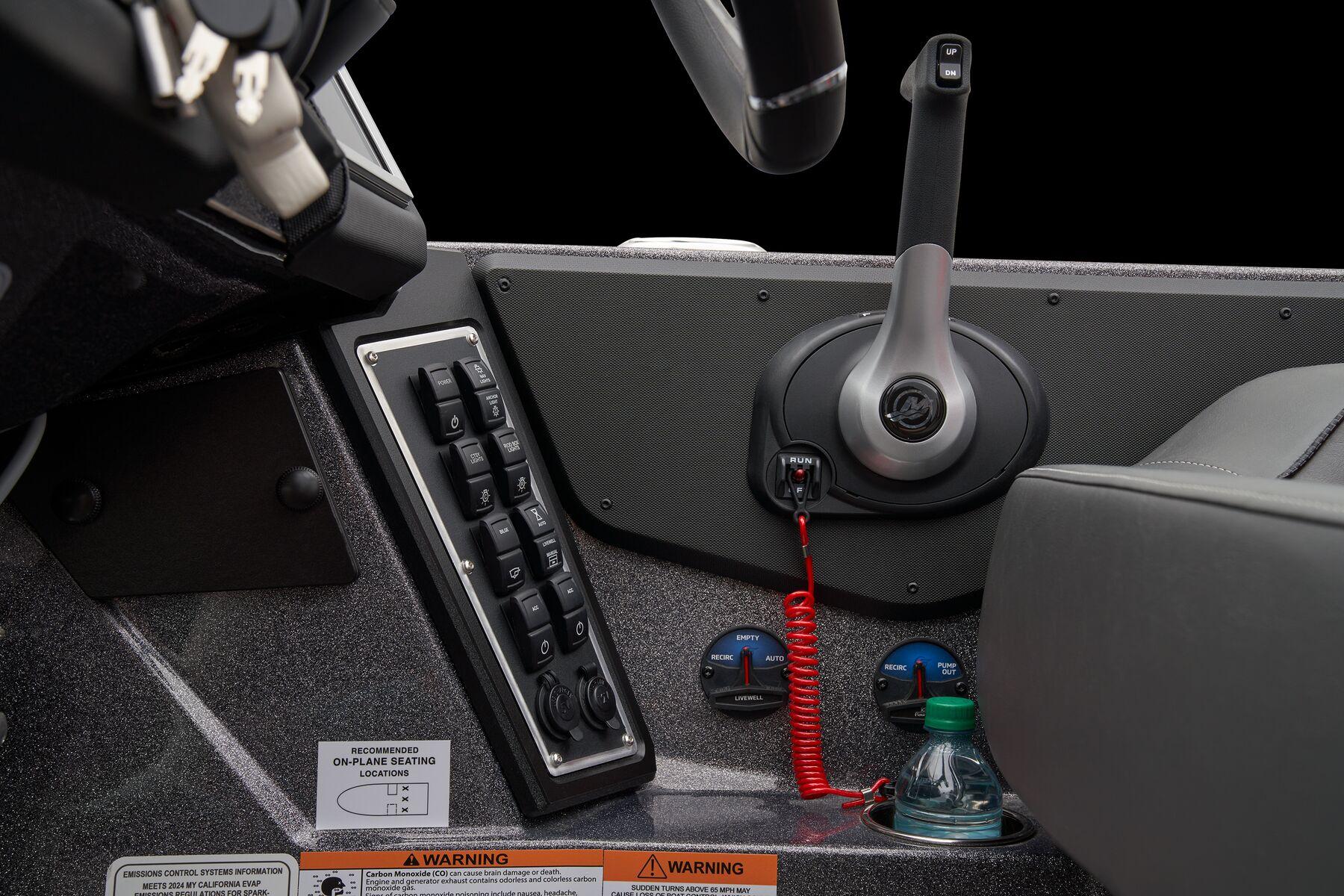

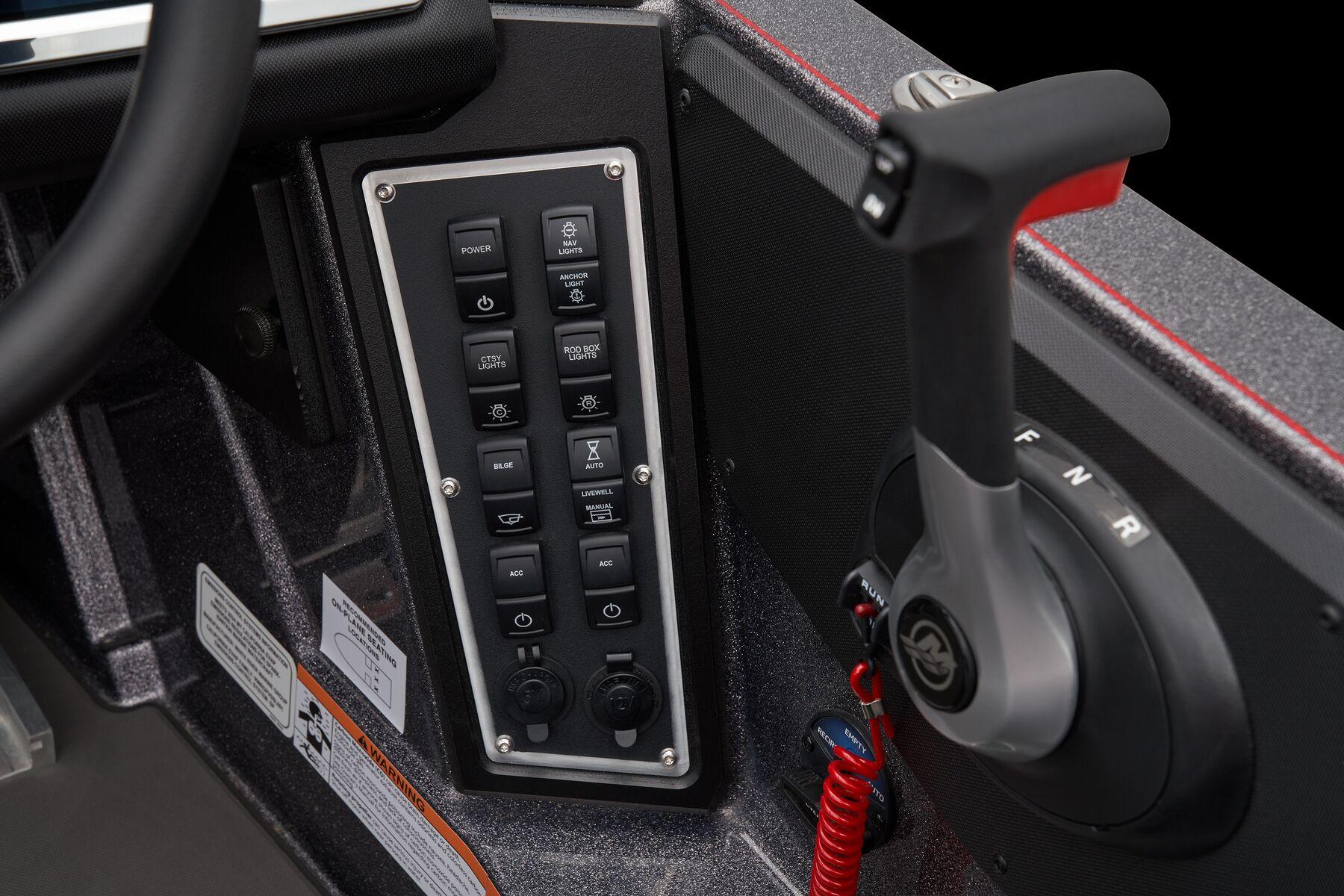

Easy-touch analog switching

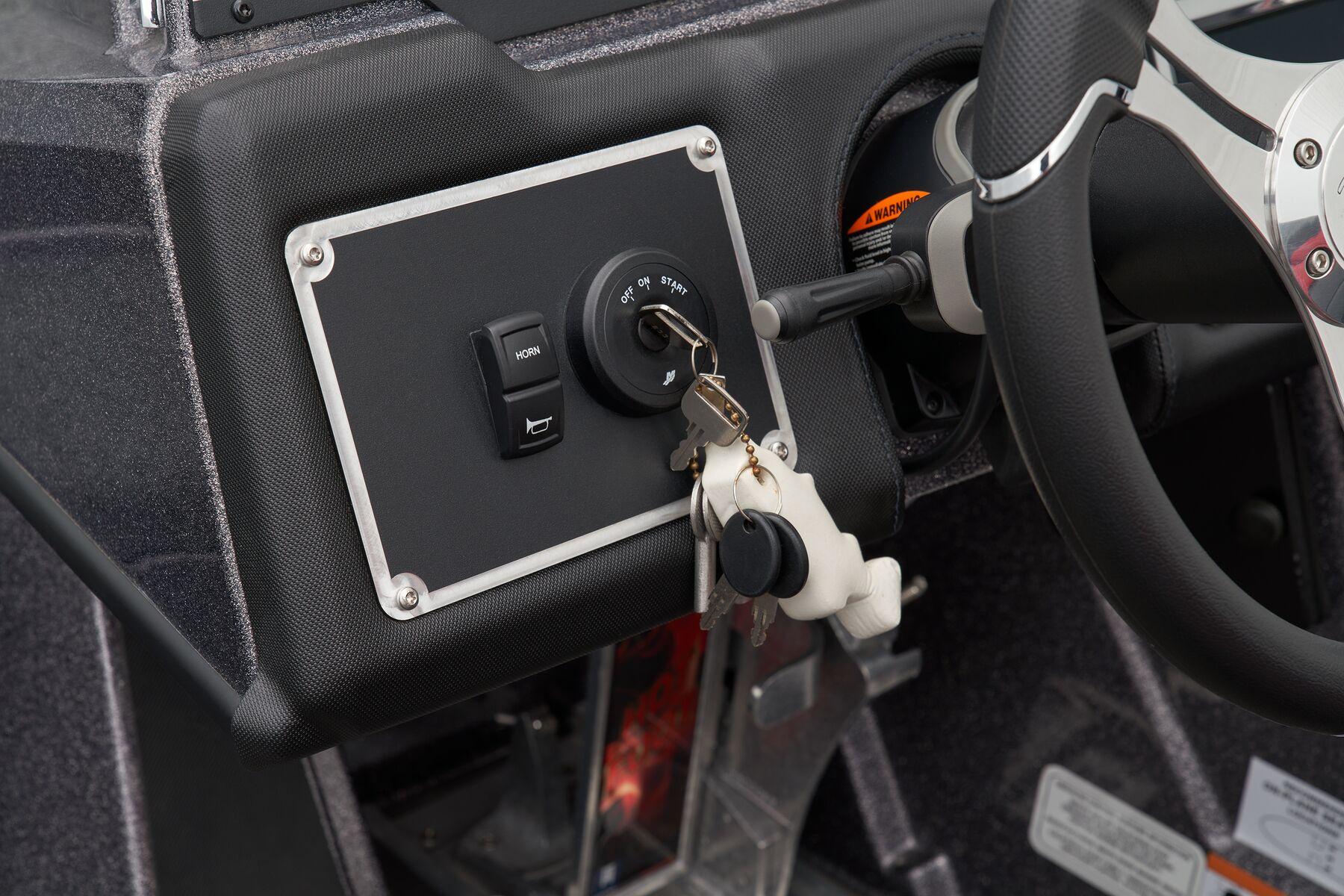

Keyed ignition
Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker

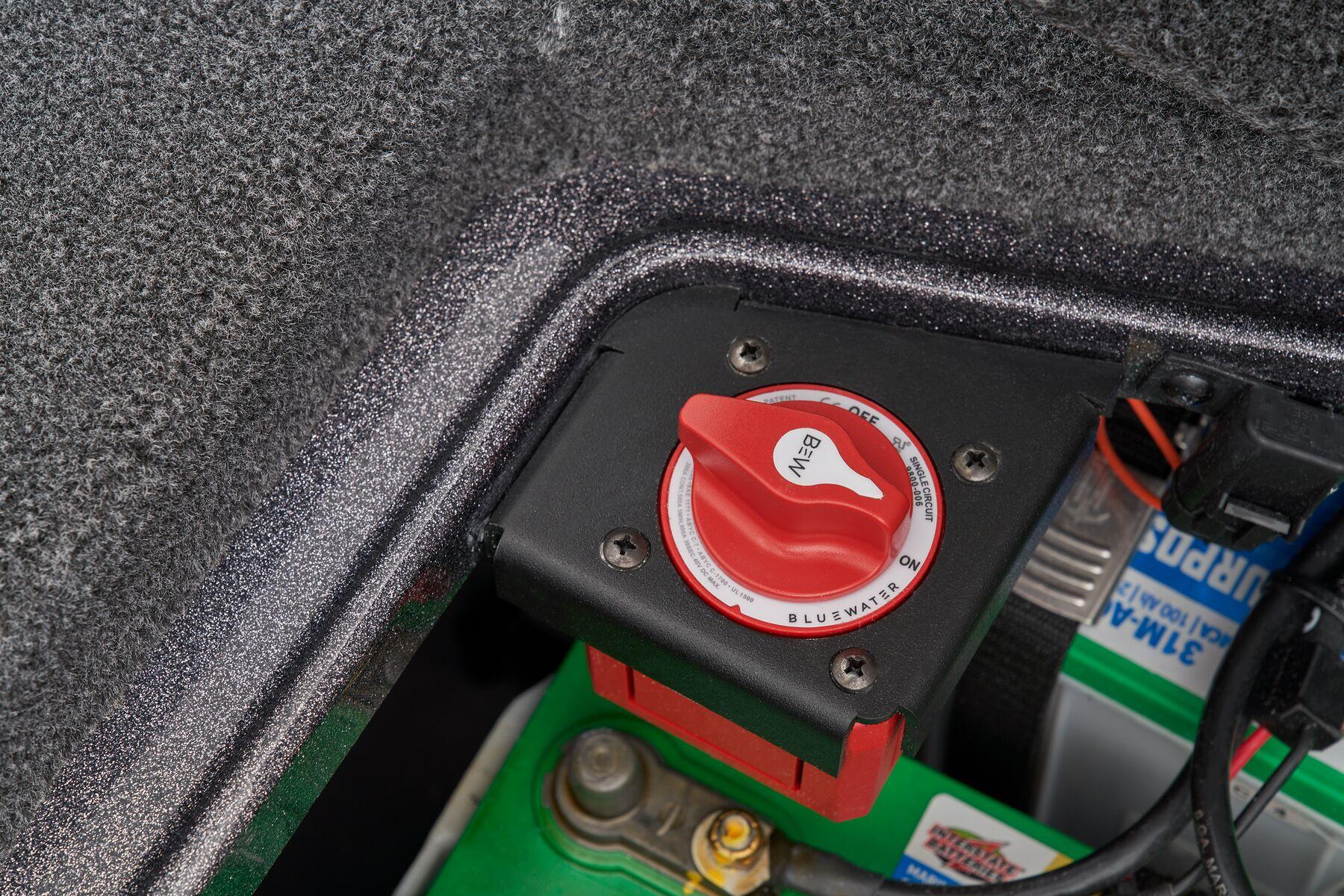

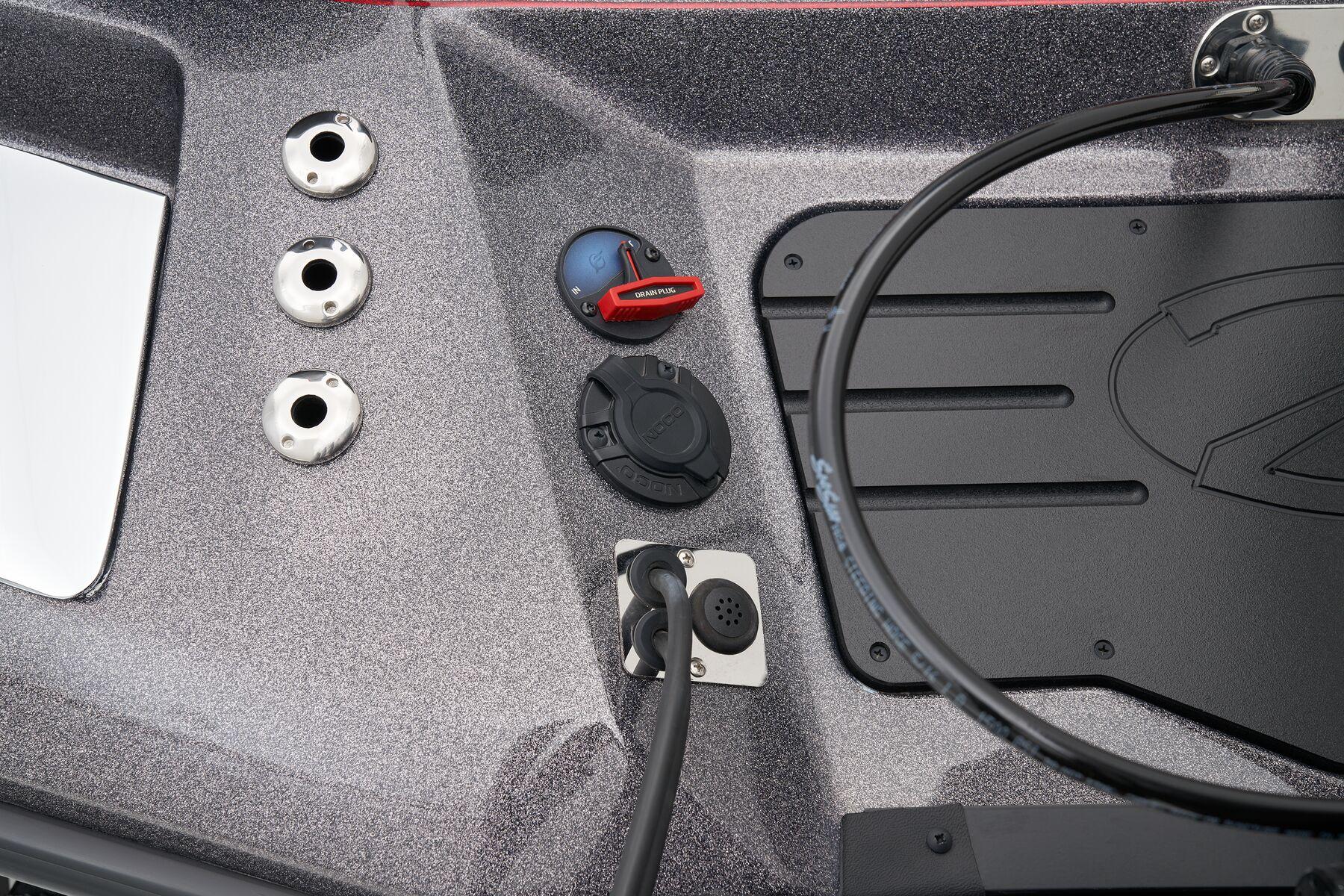

Master Power on/off battery disconnect switch
NOCO™ GB40 jump starter w/ on-board USB charging
LED storage compartment lighting & LED courtesy & livewell lighting

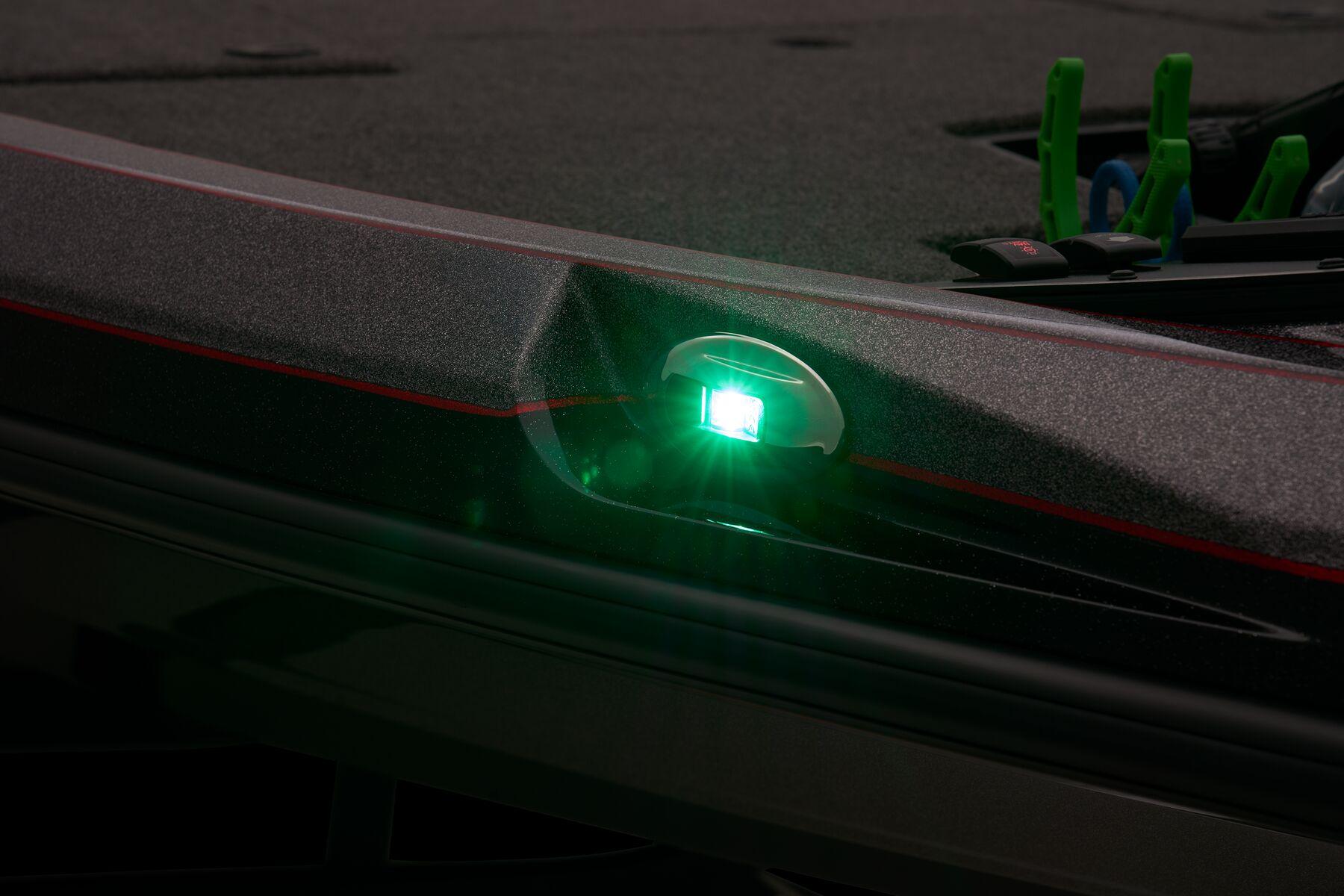

Integrated LED bow navigation lights & removable LED anchor light
Lowrance® Eagle 5 at console
Power/Performance

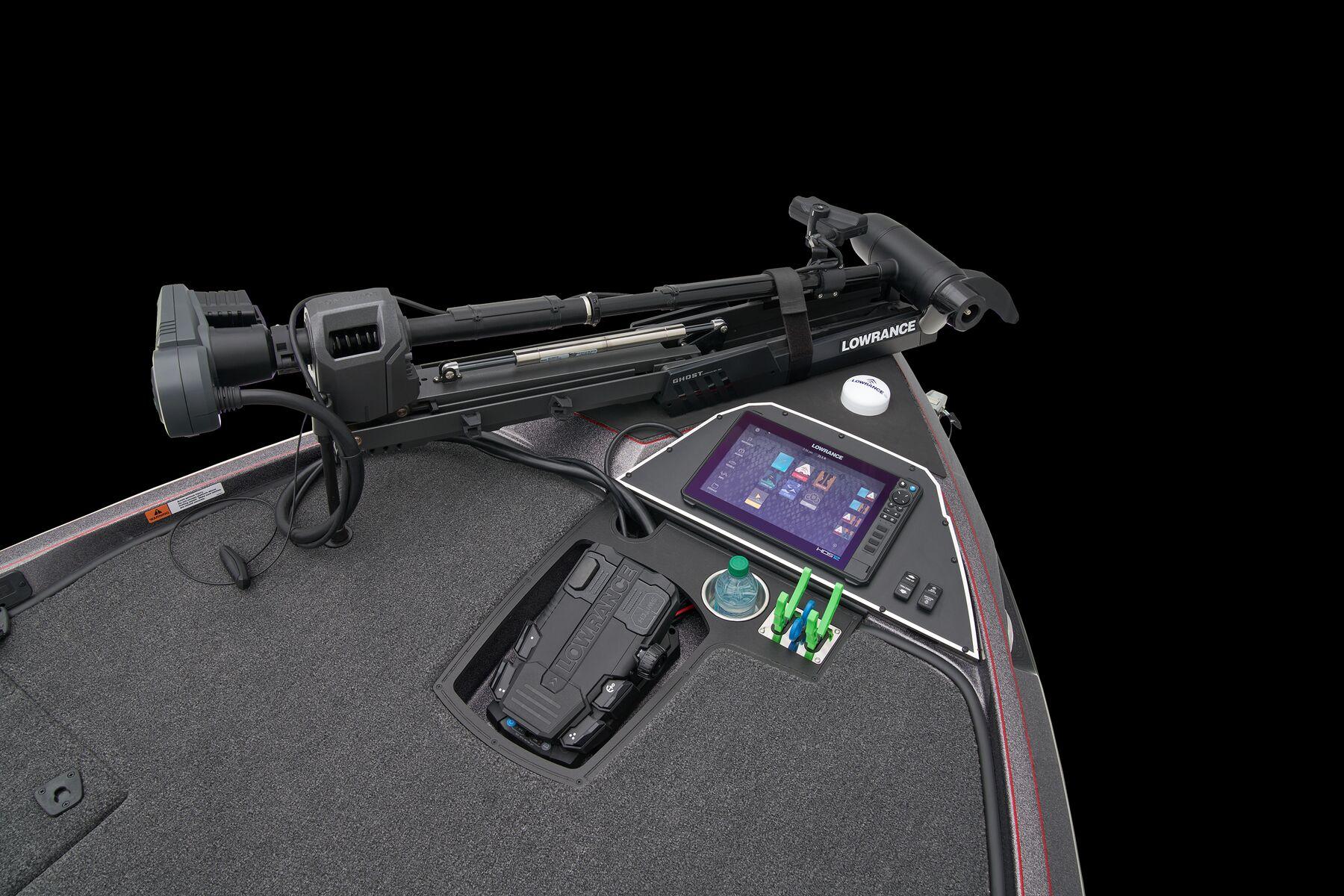

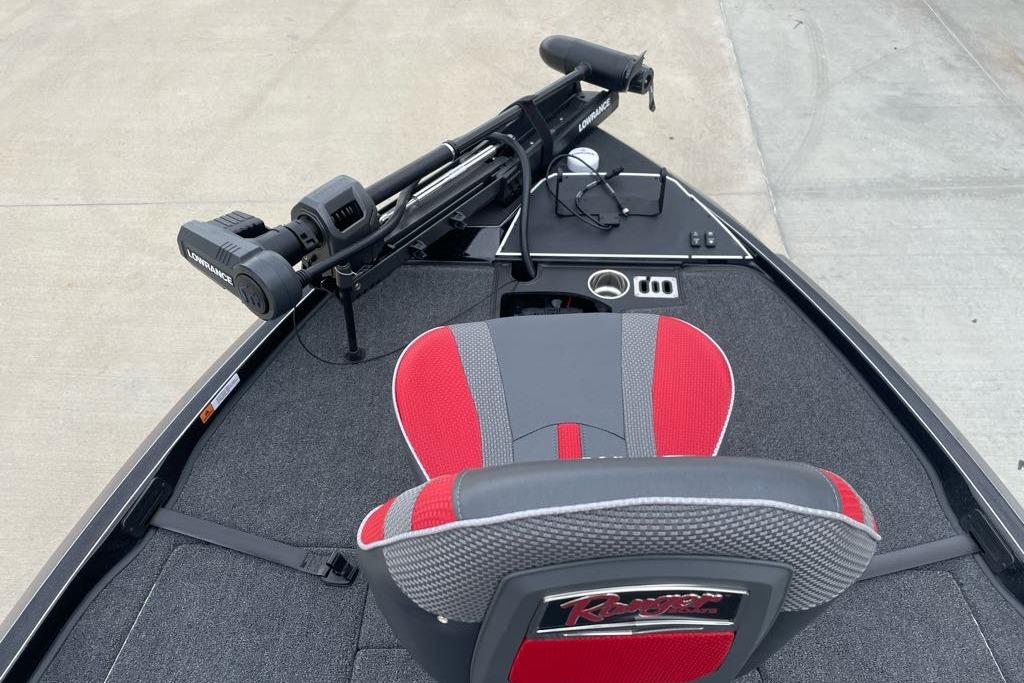

MinnKota® Fortrex 80lb , 45" DSC 24V trolling motor

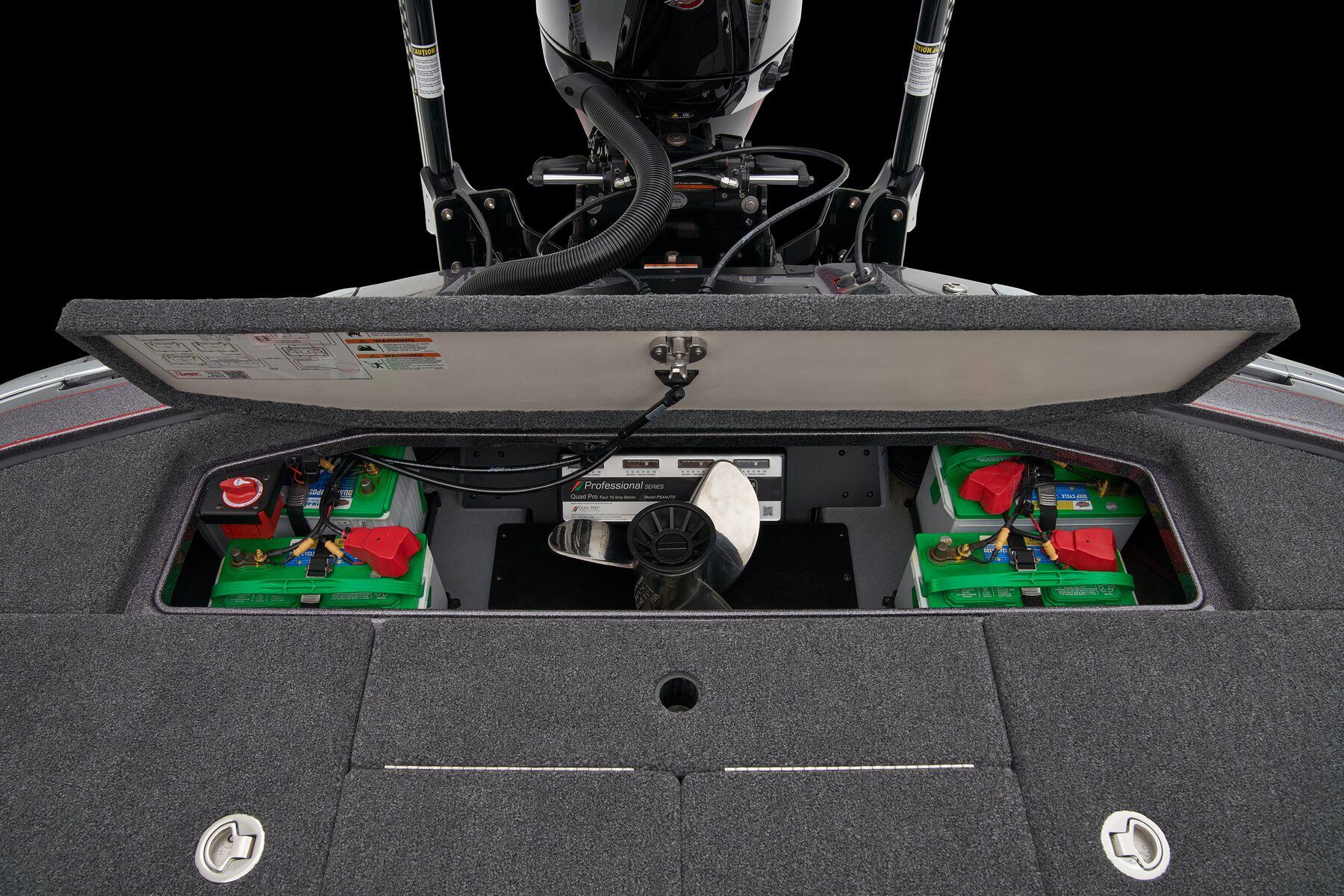

AGM Starting battery w/ tray
One-Piece-Feel Interloc Construction
Pultruded Fiberglass Transom
Integrated engine setback
8" manual setback plate
Hydraulic steering

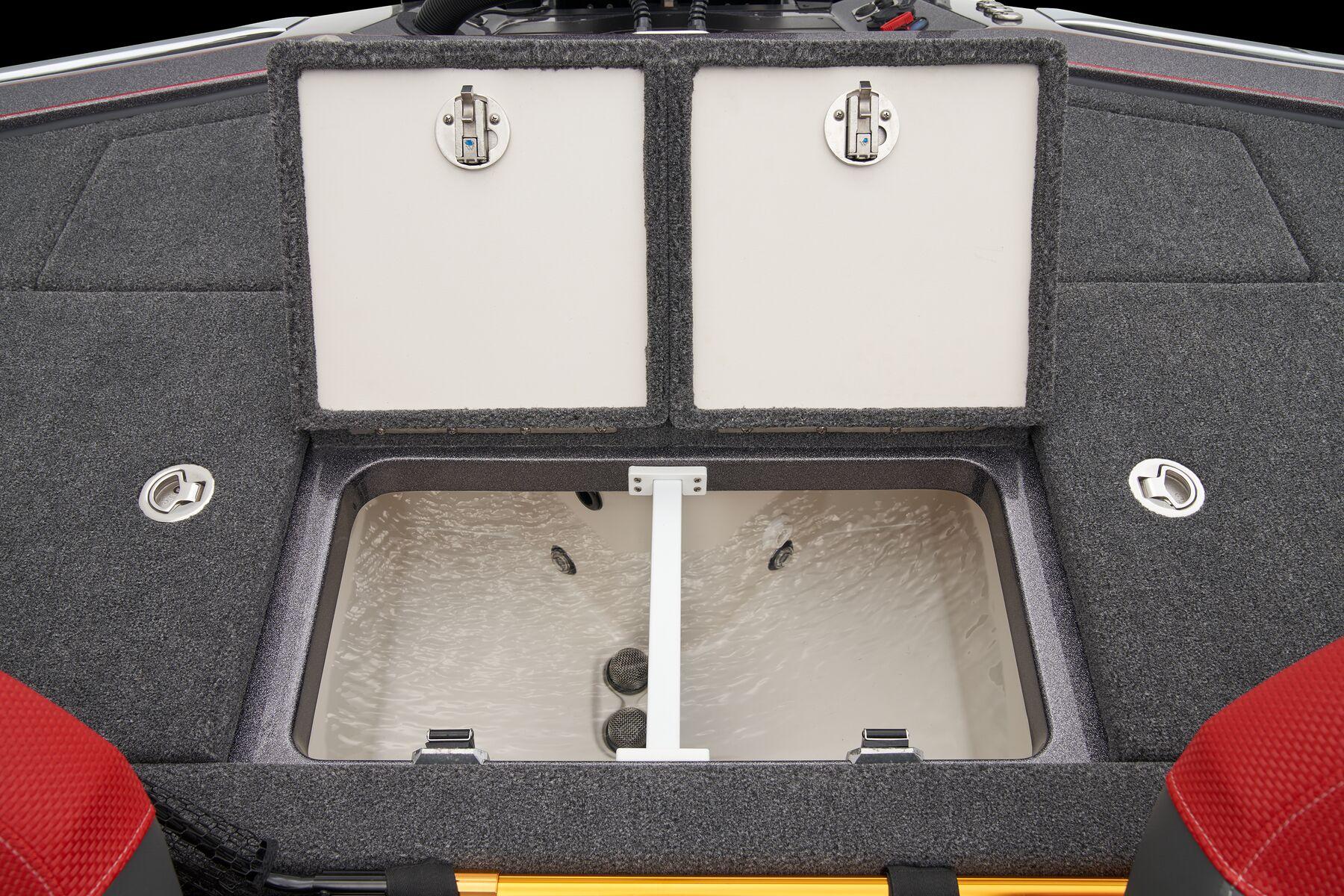

Recirculating aerated livewell w/ removable divider
Venturi aeration system

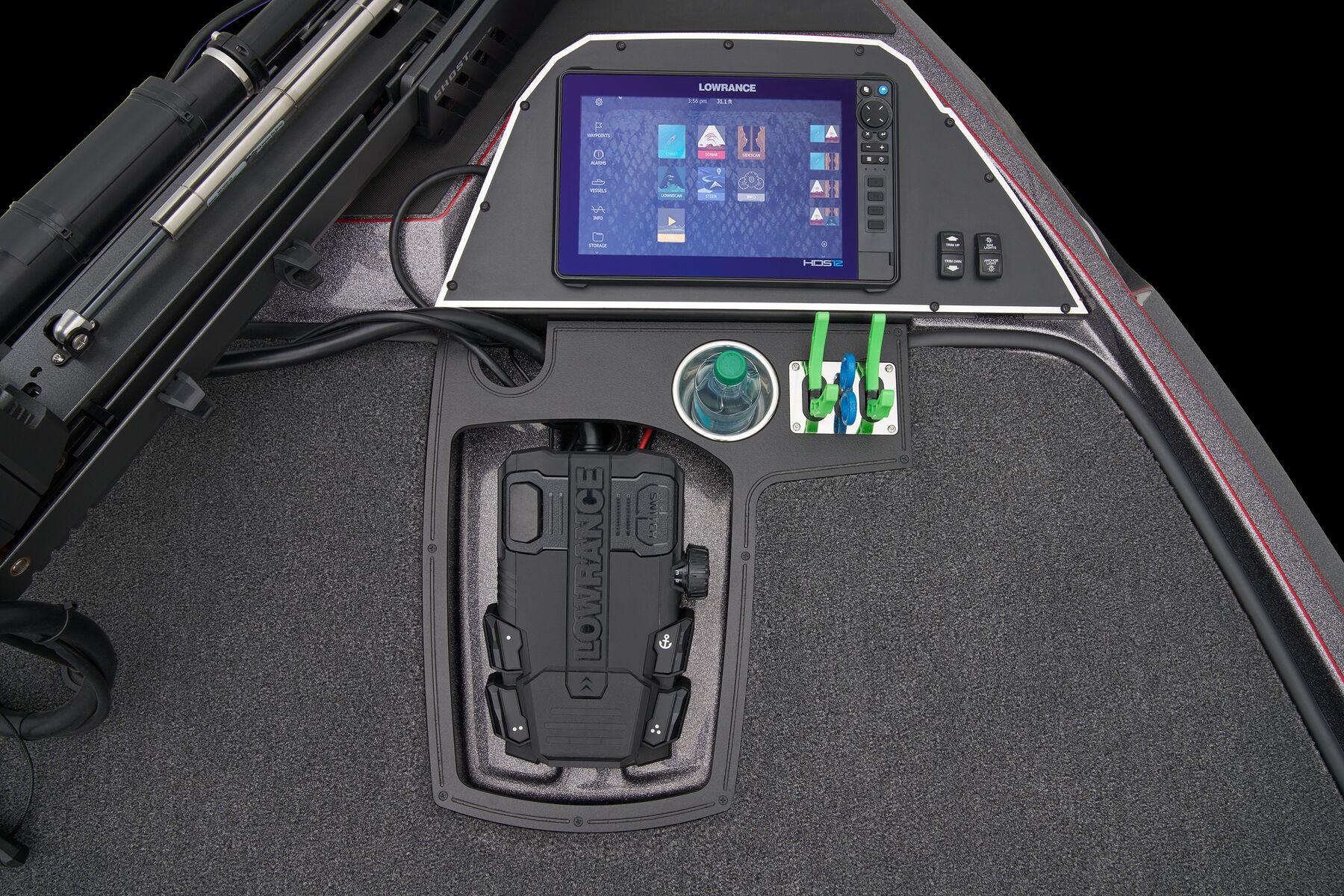

Recessed trolling motor foot pedal
High performance stainless steel prop
Foam-filled fiberglass stringer system
Safety/Comfort
Upright Level Flotation exceeding all USCG & NMMA standards

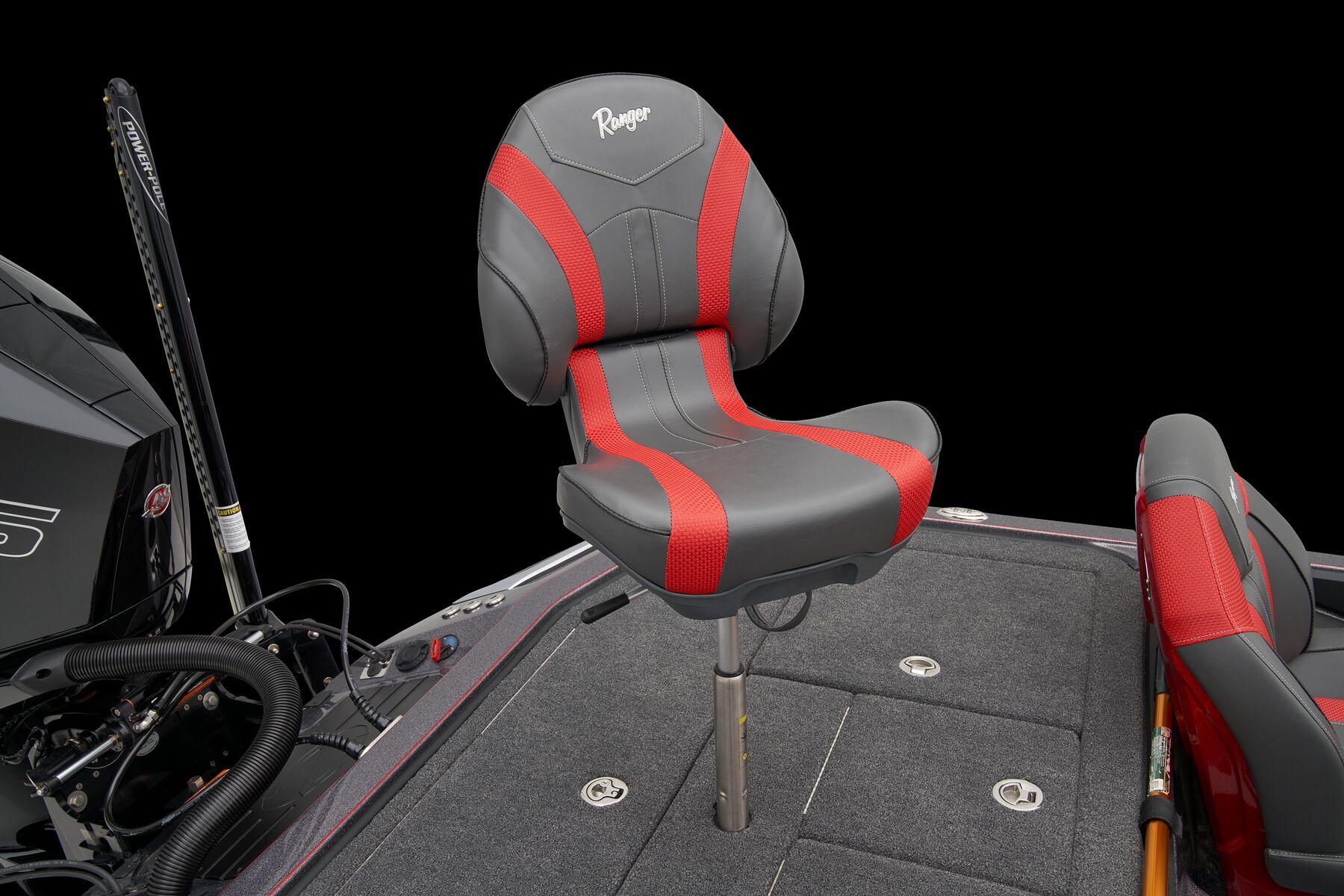

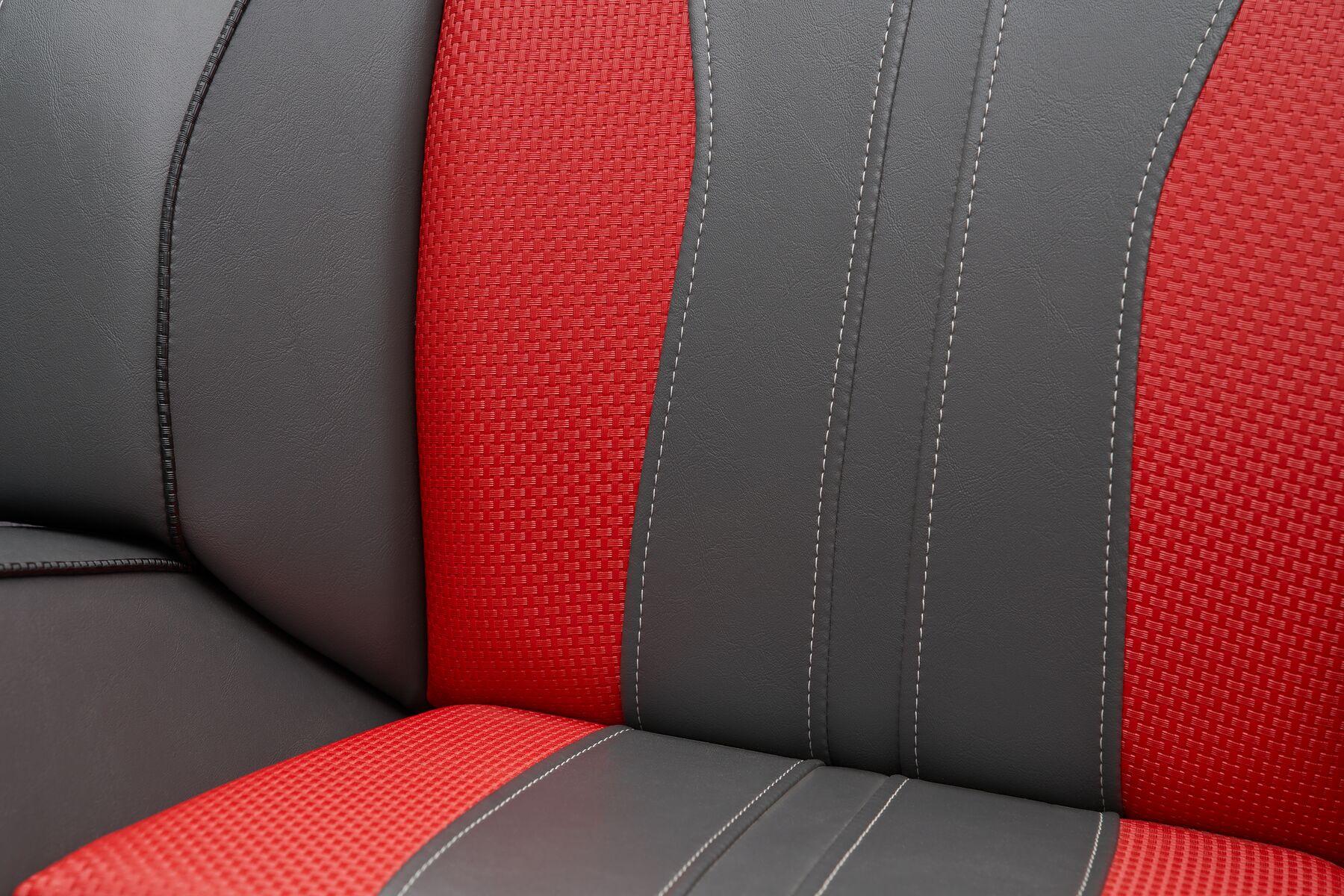

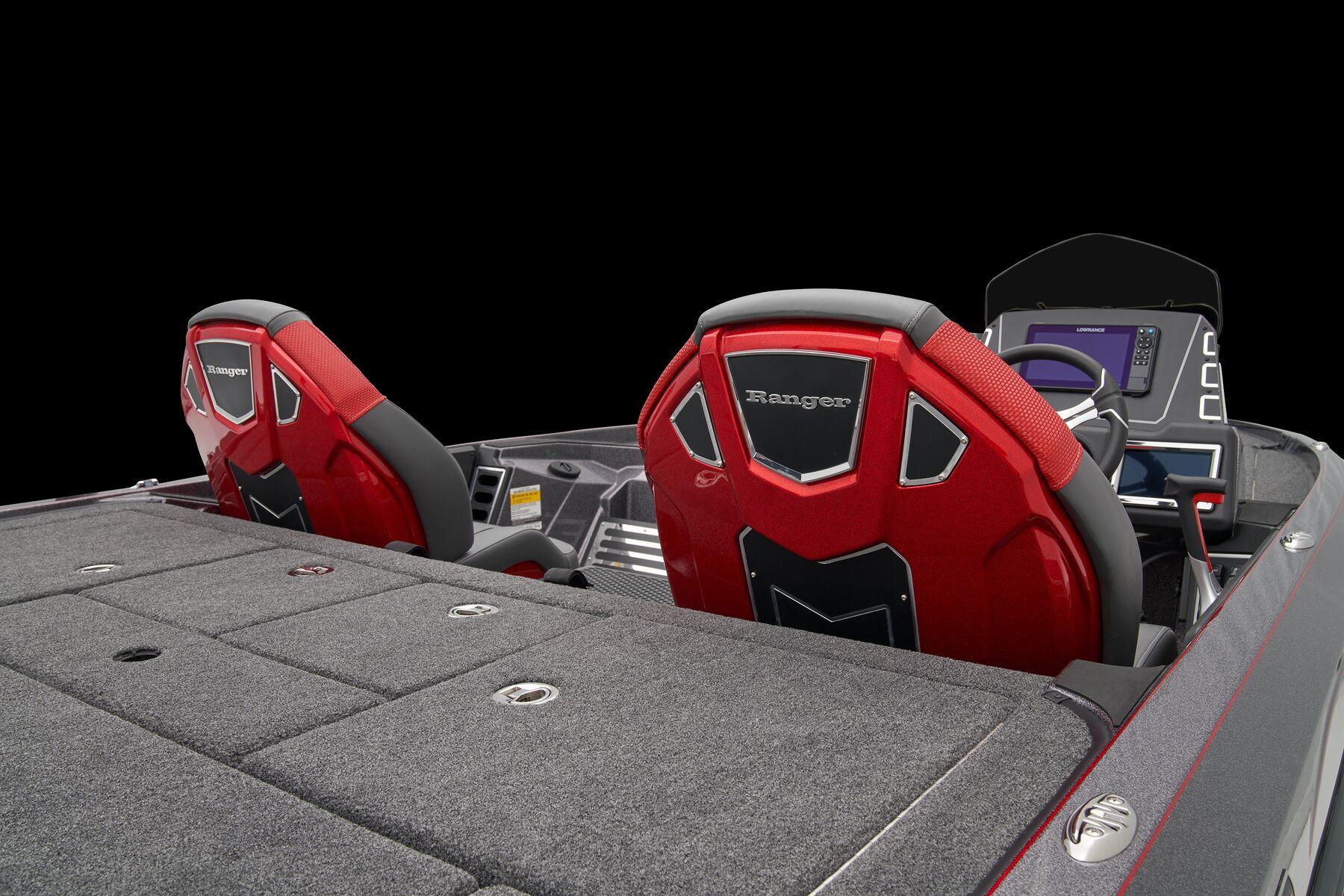

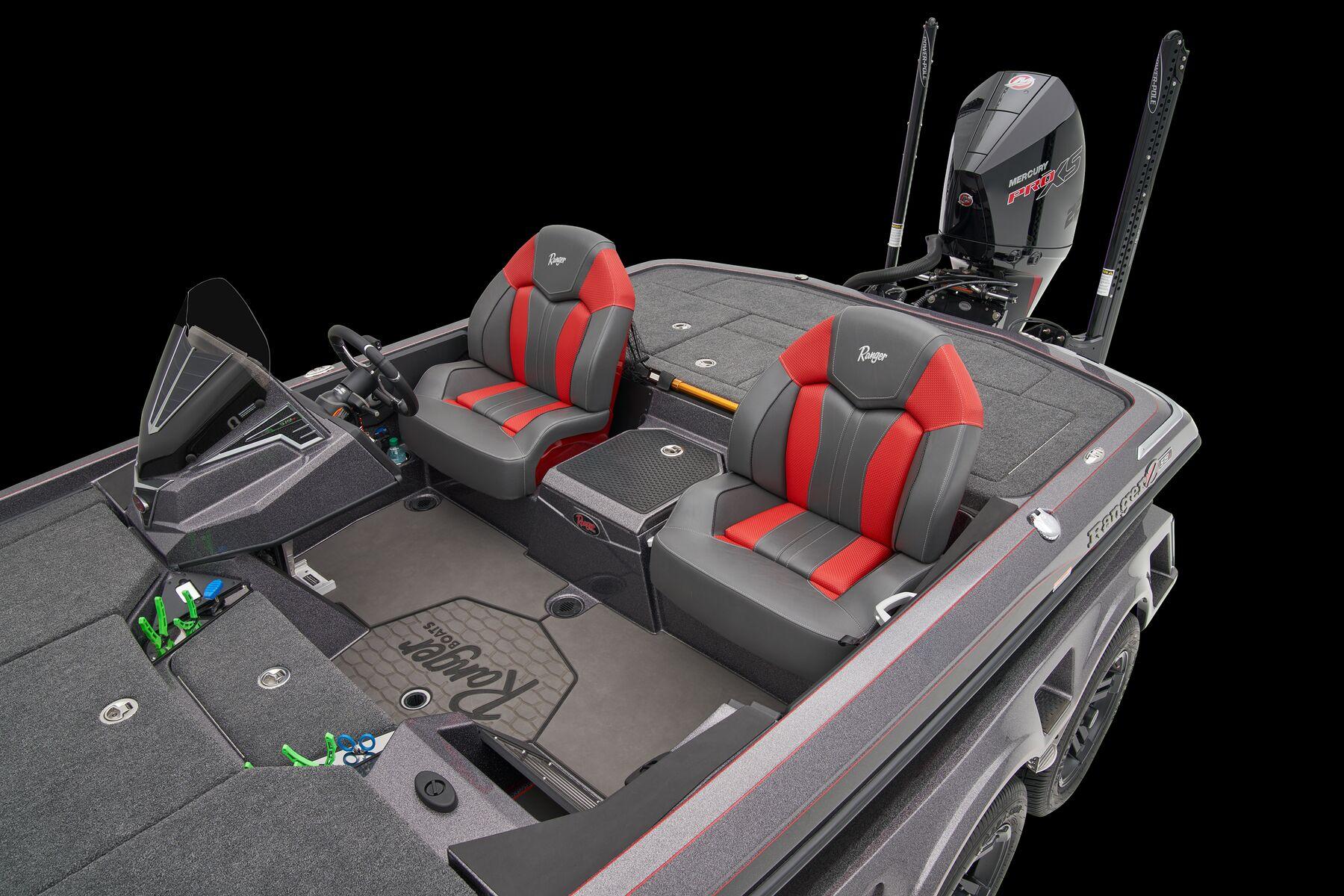

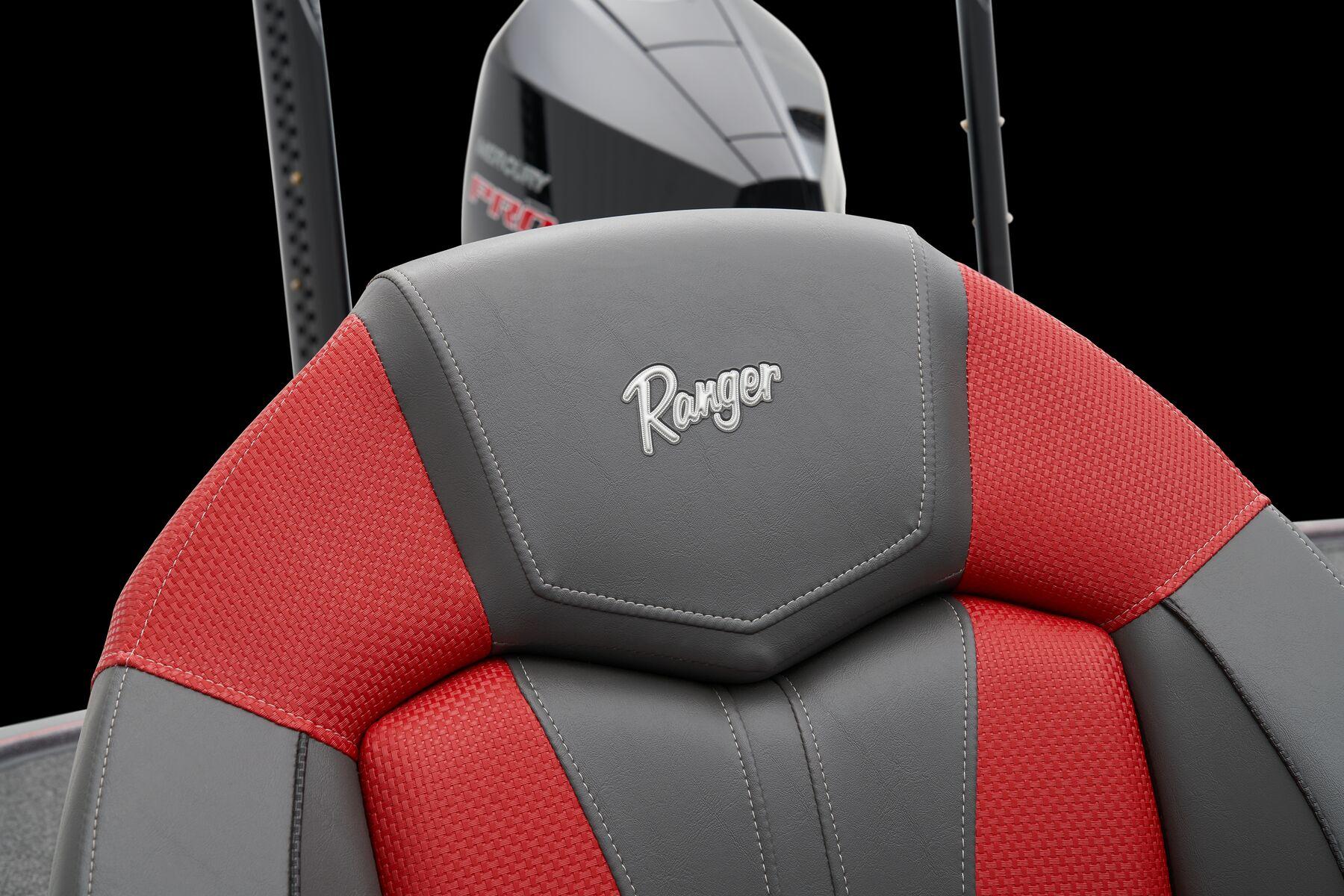

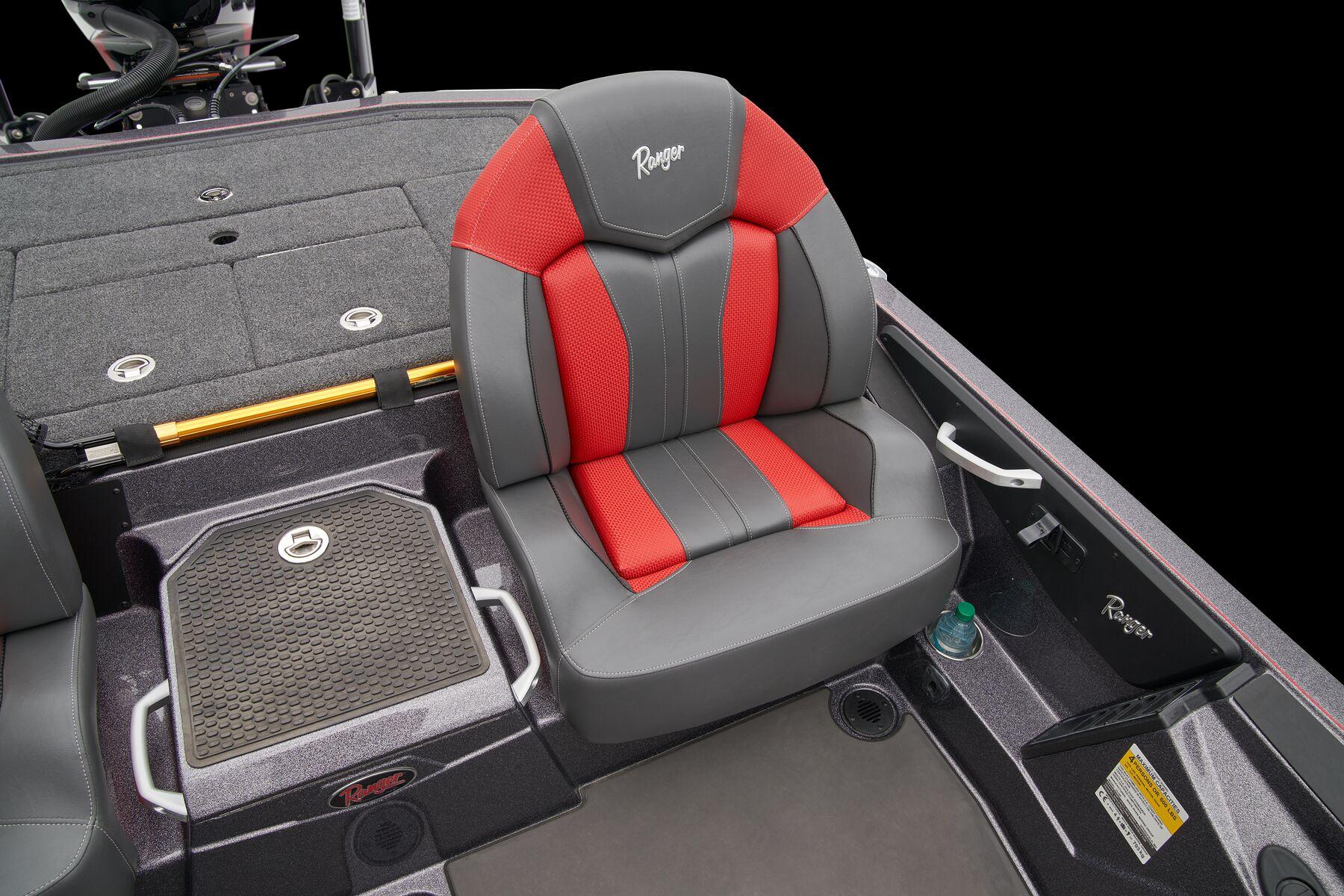

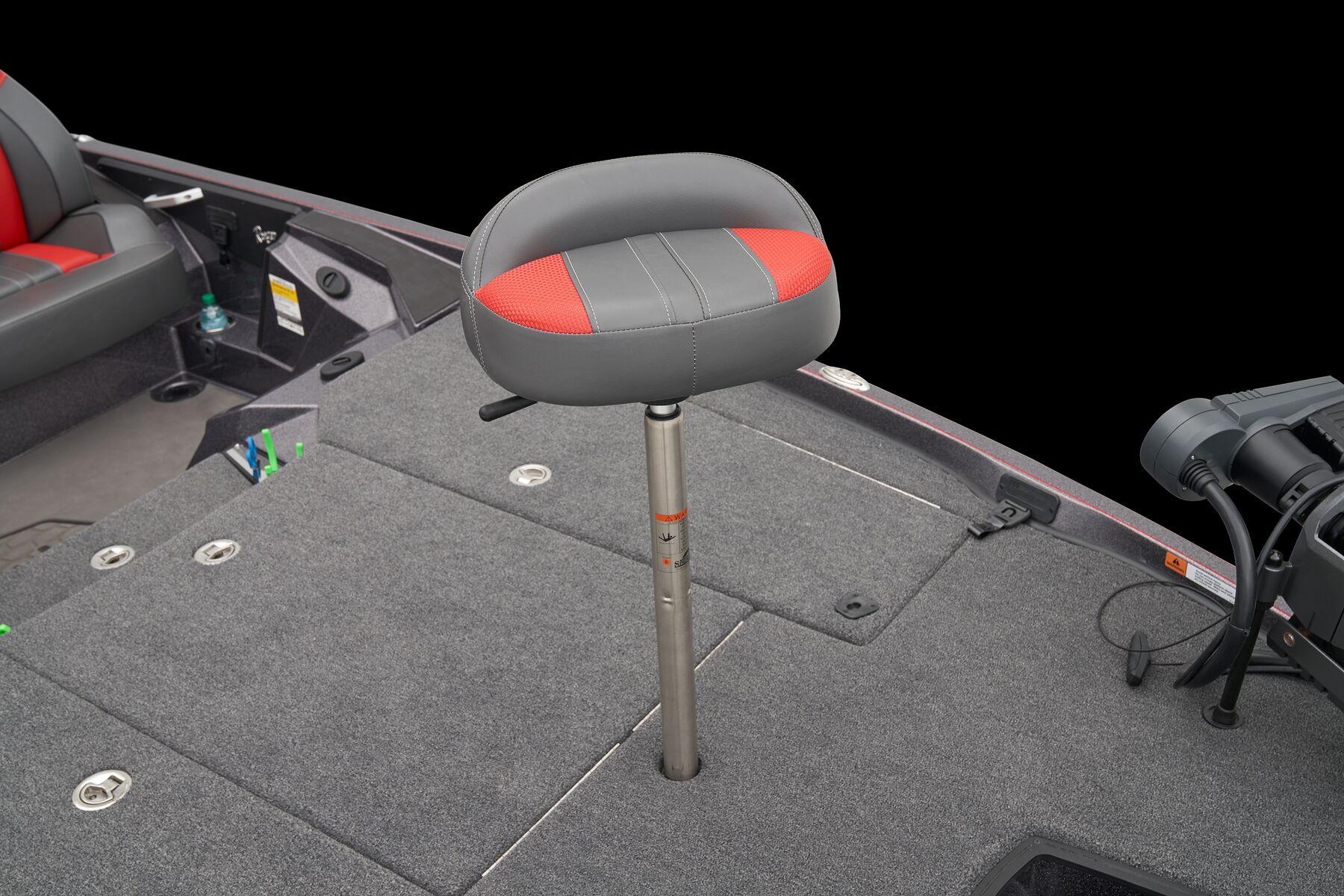

Custom-fitted premium marine upholstery - Soft Ride Seating (SRS) bucket seats w/ color-matched fiberglass seat shell, coin box, (1) bike seat w/ pro pole, & (1) SRS all-weather fold down w/ power pedestal
Fire extinguisher & horn
Stainless steel seat bases

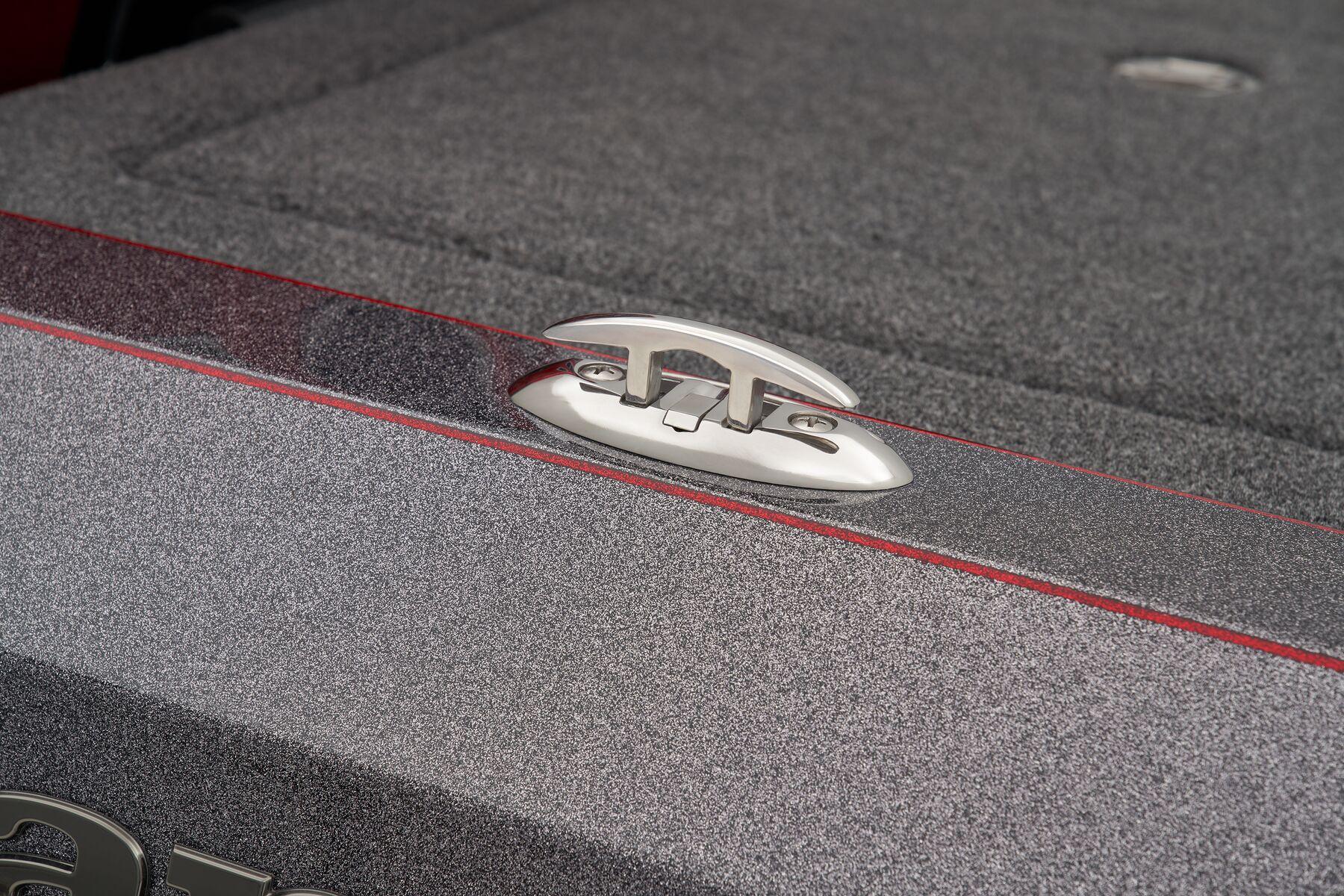

Pop-up tie cleats
Integrated grab handles
Rite Track Keel®
Automatic & manual bilge pumps
Integrated re-boarding ladder

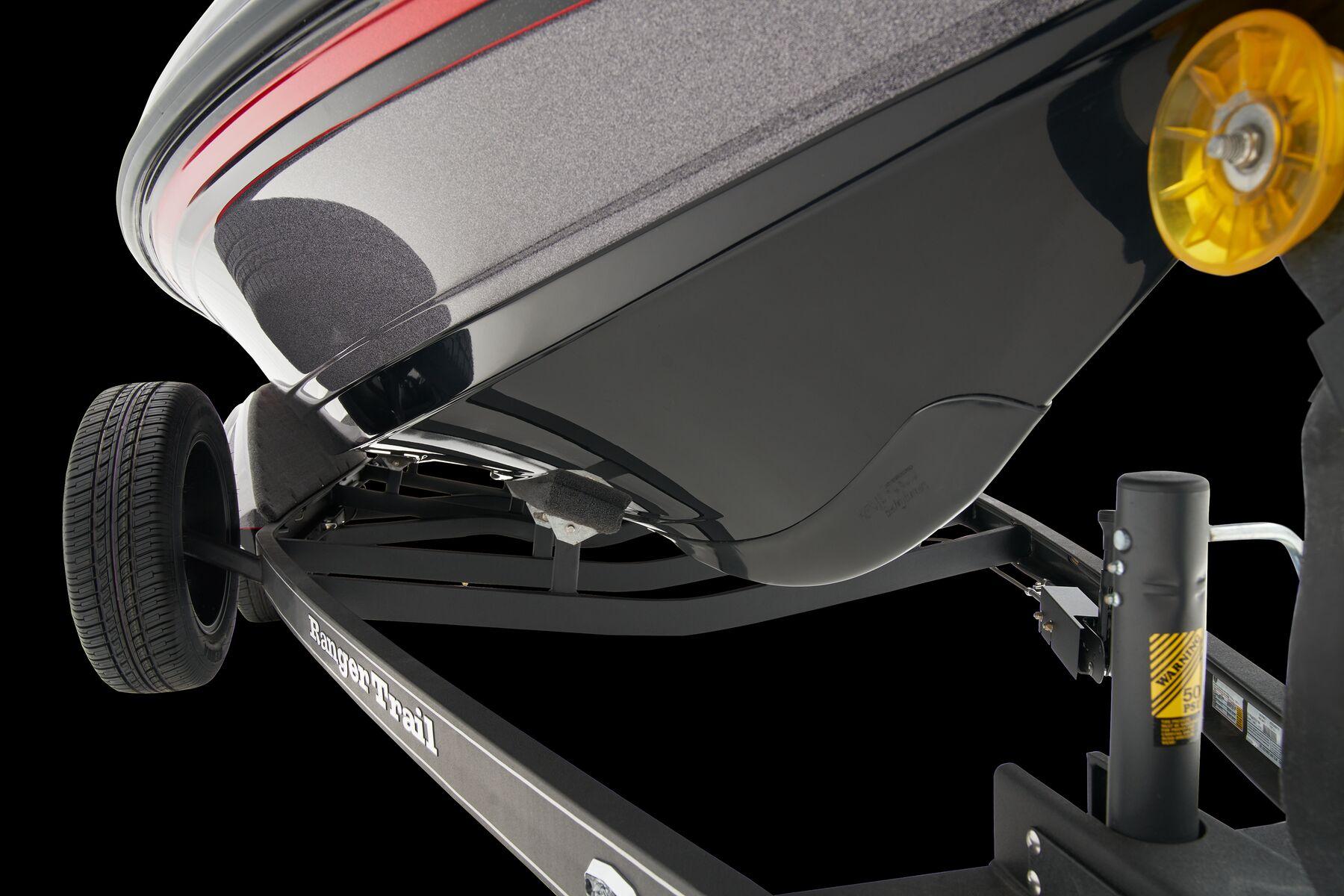

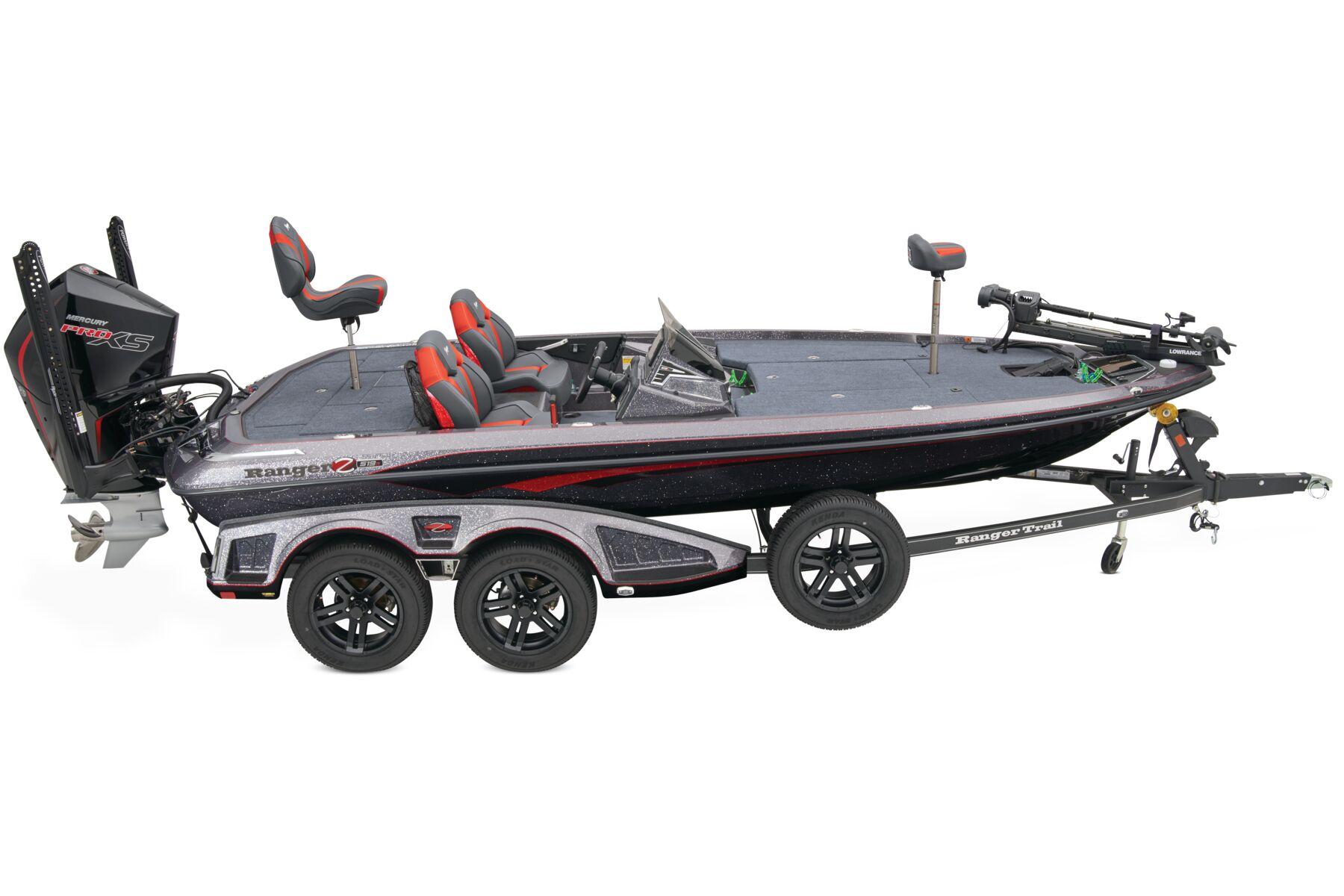

Trailer Features
Ranger® Boats Road Armor Equipped® trailer protectant coating
Ranger Trail® Vault® Hub lubrication system

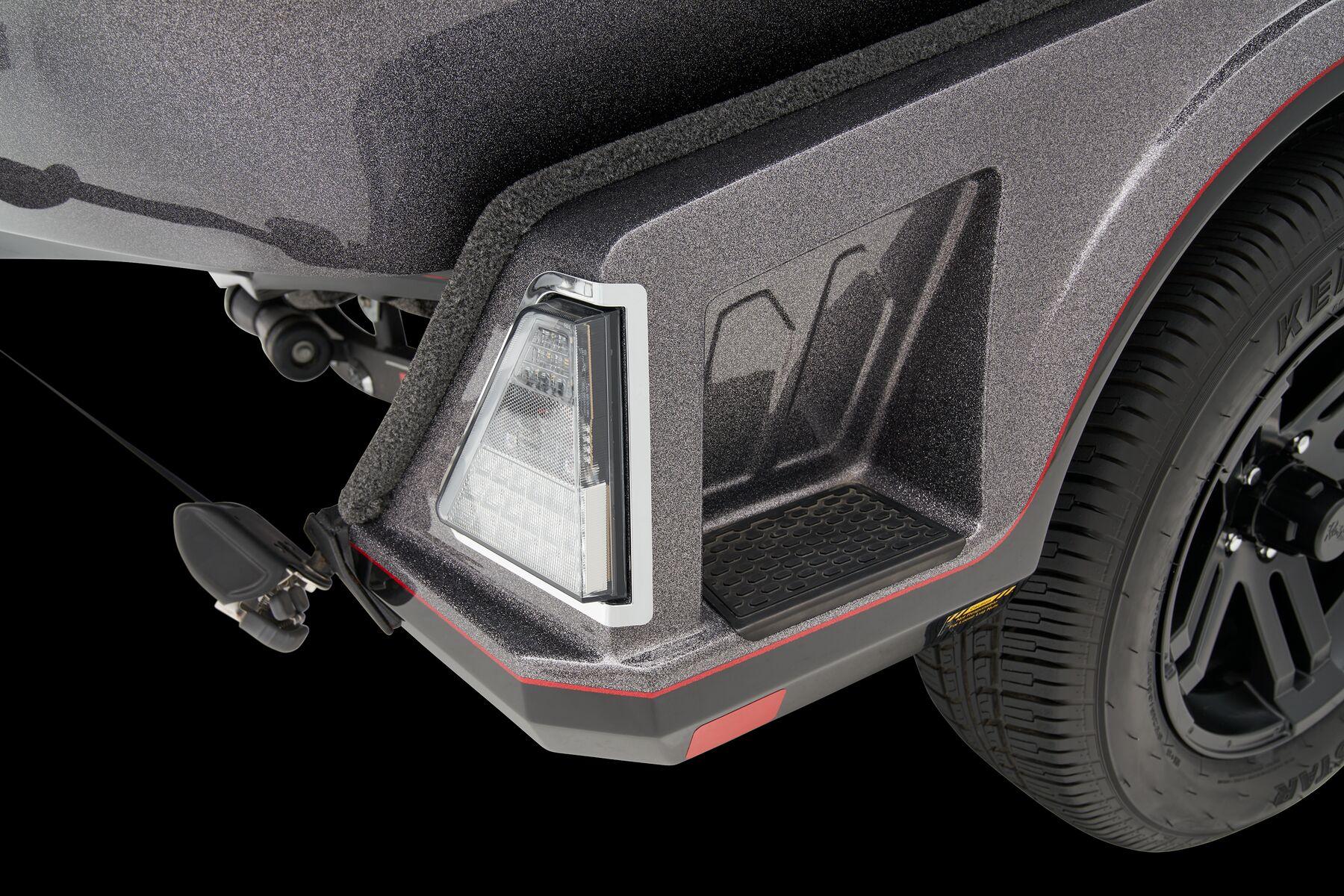

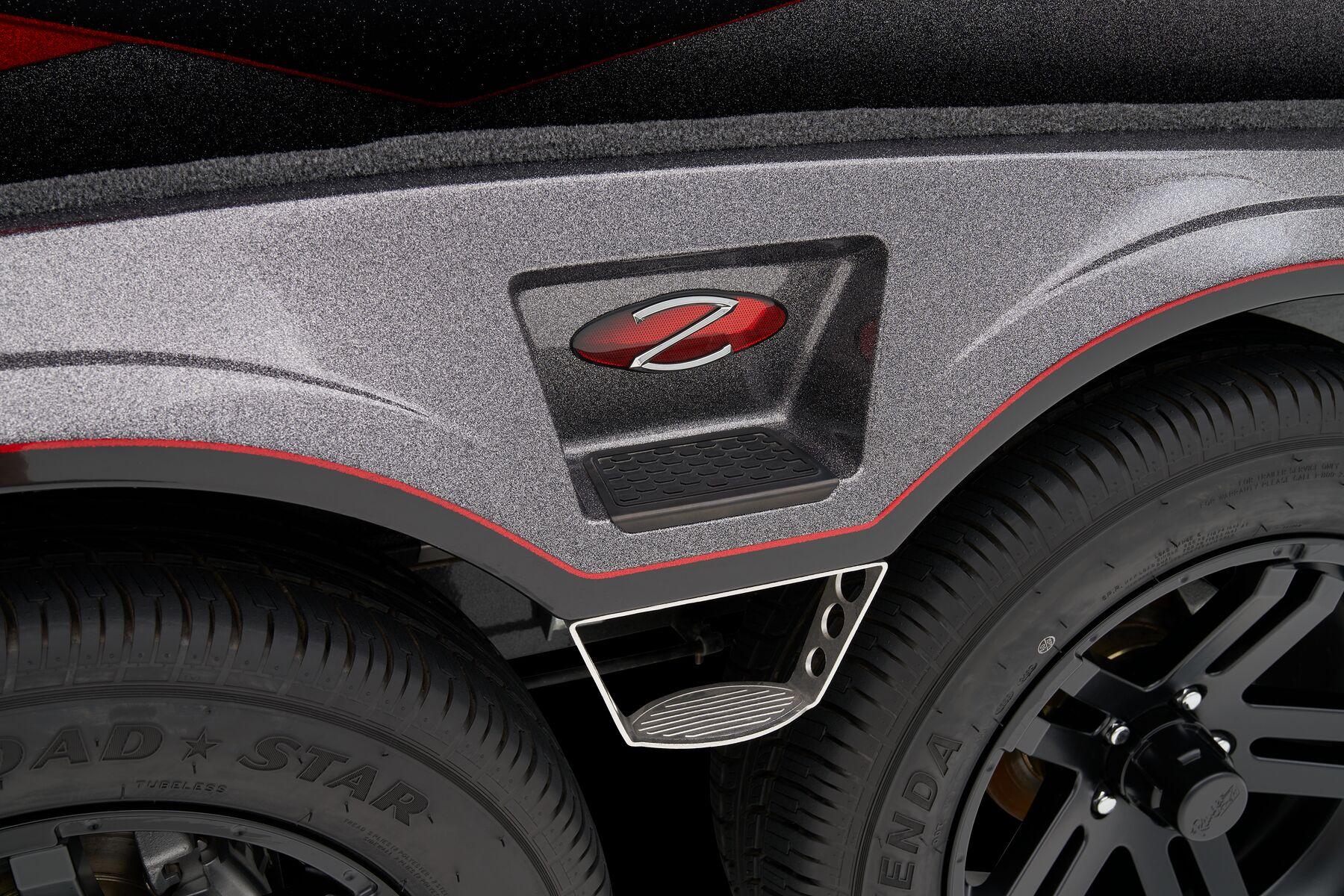

Fiberglass fenders w/ step pads
Hydraulic surge disc brakes

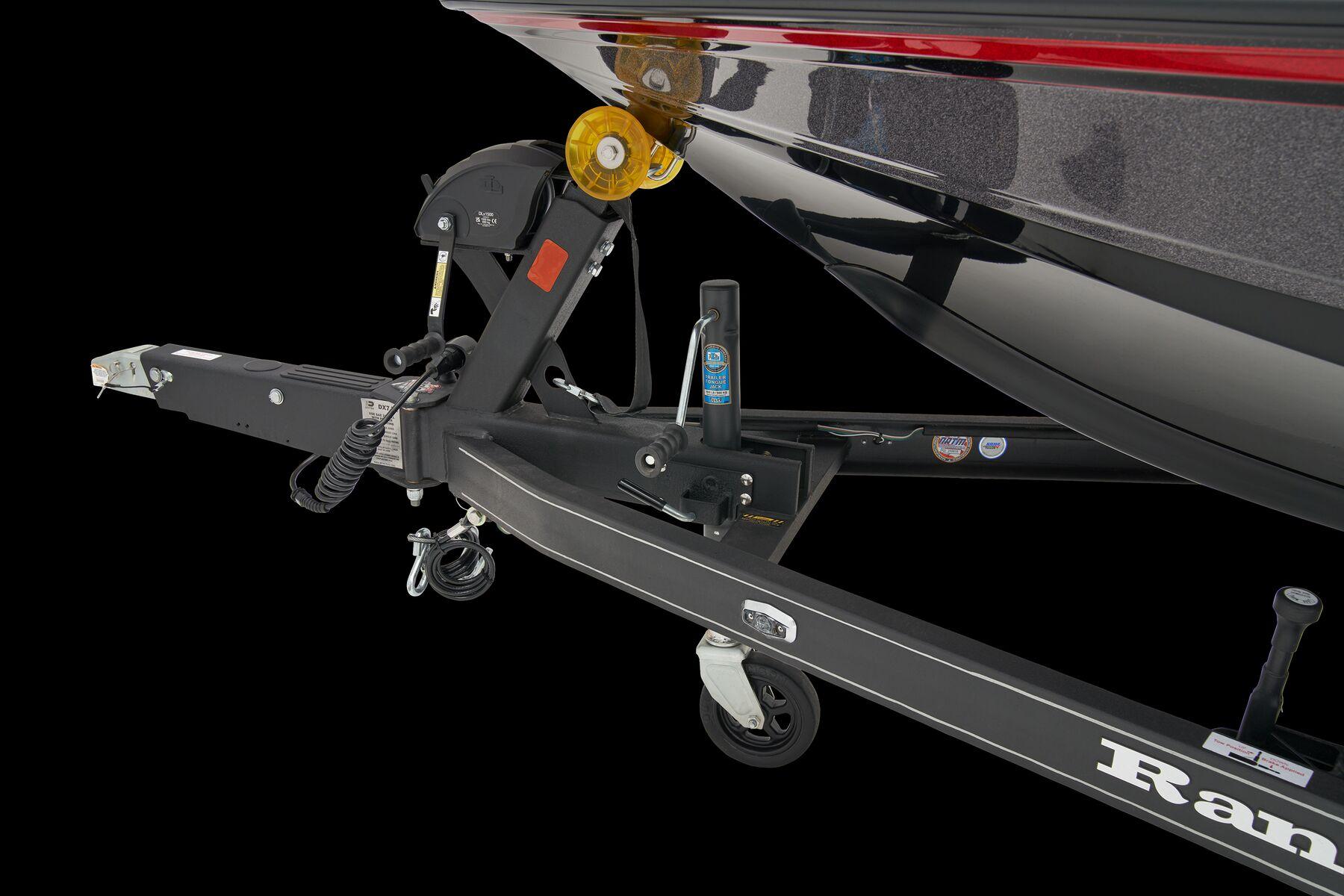

Swing-away tongue
Integrated center-swing jack finished in black powdercoat
Stainless steel ratcheting tie-downs

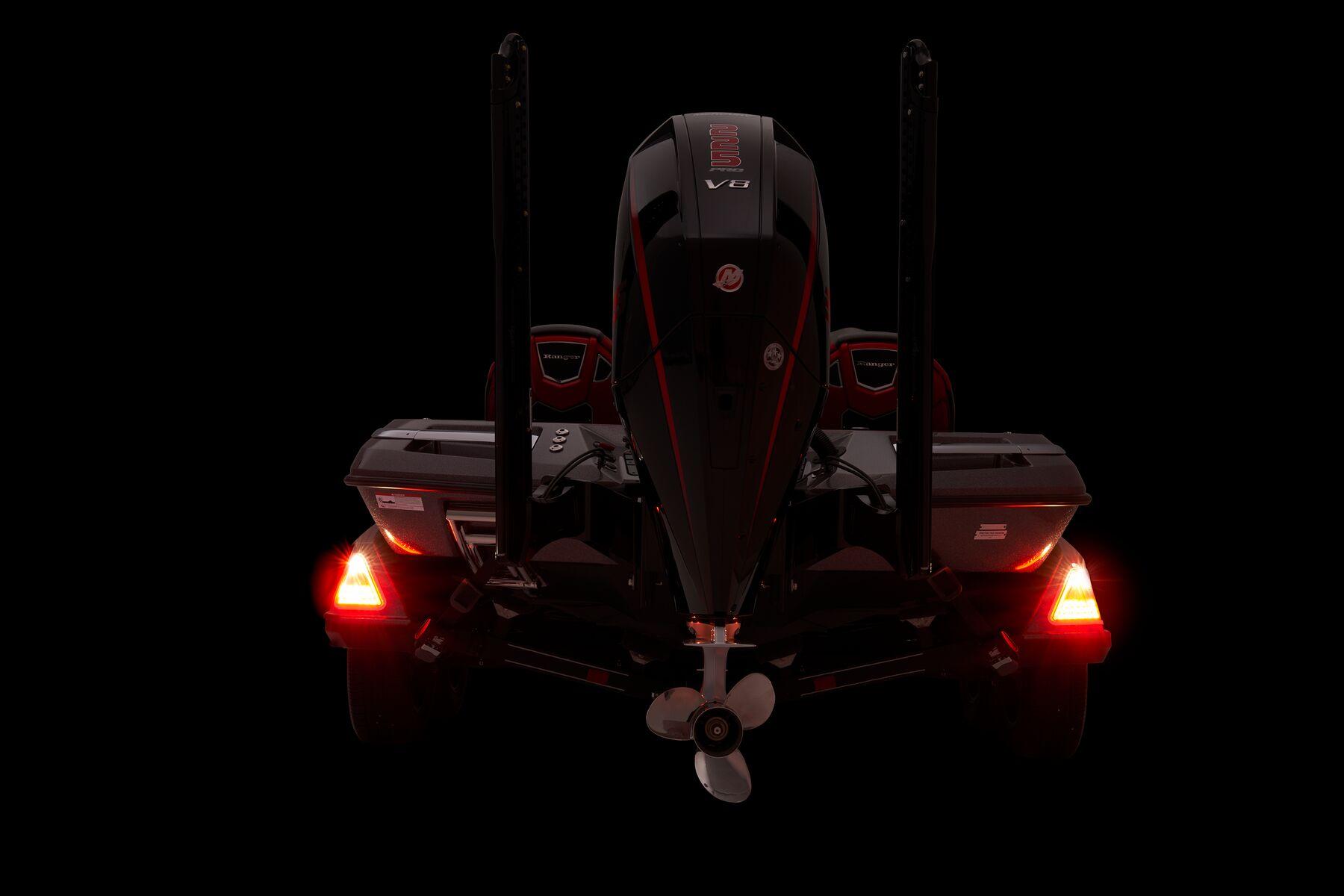

LED lighting
LED back-up lights
NMMA®/NATM certified
Mon - Sat : 9:00 AM - 9:00 PM
Sun : 10:00 AM - 7:00 PM
Mon - Sat : 8:00 AM - 6:00 PM
Sun : Closed
*
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.
| Base Price | $68,995 |
| Options | $17,485 |
Engine

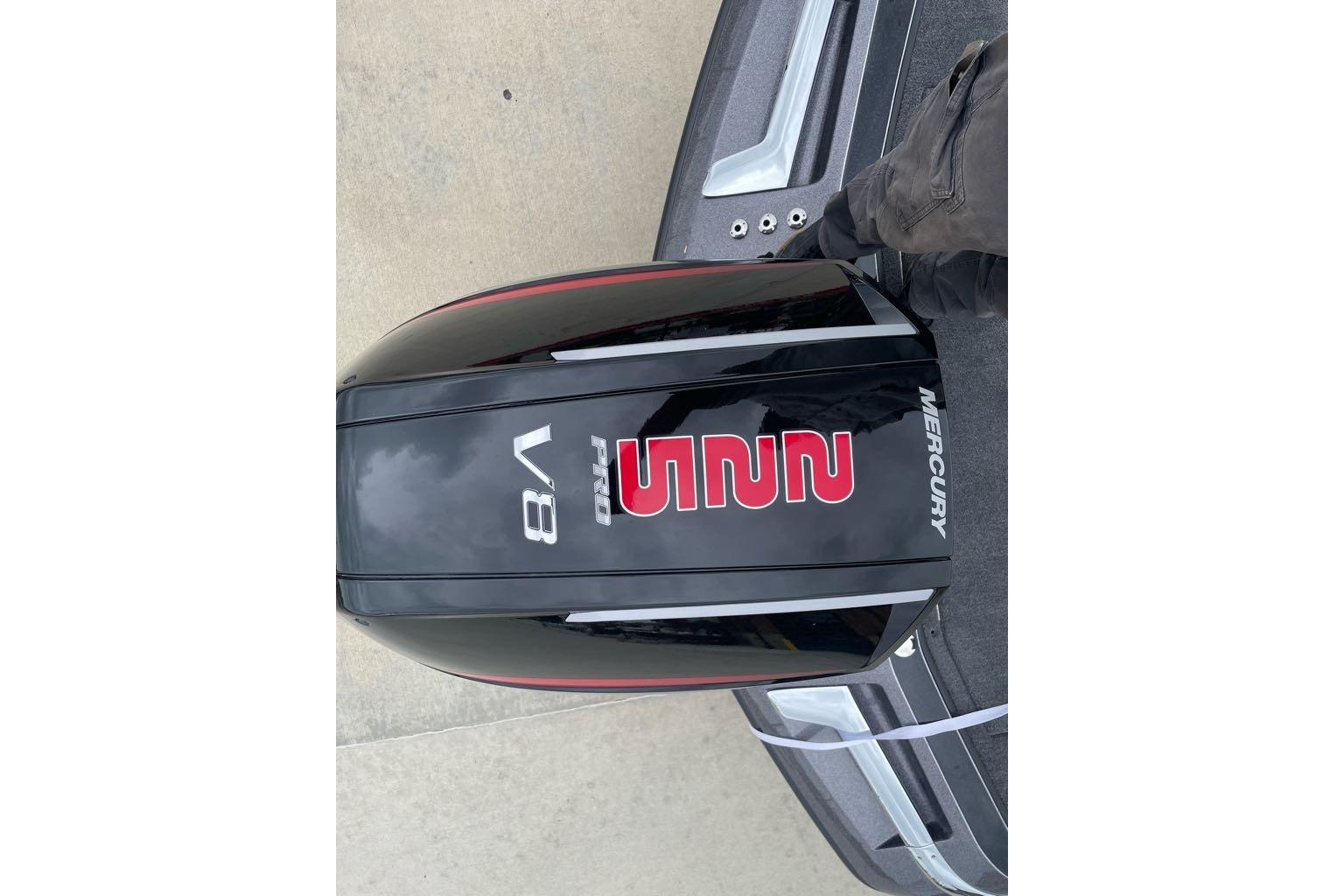

MERCURY MARINE 225 hp 225L PXS4 TQM 1.75
